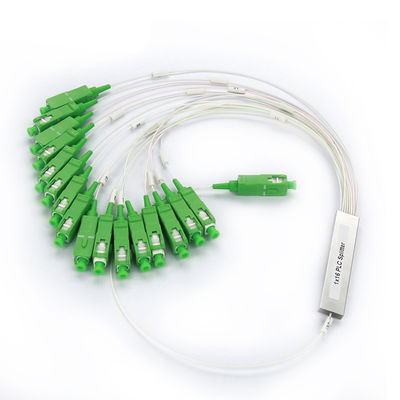

SC APC 1x16 Single Mode PLC Fiber Optic Splitter for FTTH Internet Application

Brand Name:	New Light
Model Number:	LC / FC / SC / ST / E2000
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Brand Name:

New Light

Fiber Type:

0.9 /2.0 / 3.0 Mm

Connector Type:

LC / FC / SC / ST / E2000

Core Type:

1X12 FC APC

Operating Wave:

1260-1650

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Fiber Length:

As Your Requirement

Warranty:

3 Years

Delivery Time:

2-10 Working Days After Receive Payment

Payment:

T/T , L/C , Paypal , Westen Union , Money Gram

Products Name:

SC APC 1 X 16 MINI Fiber Optic Splitter PLC For FTTH Internet Application

Supply Ability:

1000000

Highlight:

single mode fiber splitter

fiber optic cable splitter

Product Description

MINI Fiber Optic Coupler Splitter, SC APC 1*16 Single Mode Fiber Splitter

Professional PLC splitter designed for FTTH internet applications, providing reliable signal distribution in passive optical networks.

Product Overview

The fiber optic splitter is a critical passive device in optical fiber links. Utilizing waveguide technology fabricated on silica glass substrates, PLC splitters deliver precise light routing with accurate, even splits and minimal loss in a compact, efficient package.

This optical fiber tandem device features multiple input and output terminals, making it ideal for passive optical networks (EPON, GPON, BPON, FTTX, FTTH) to connect MDF with terminal equipment and branch optical signals.

Technical Specifications

1*16 Single Mode PLC Splitter Data Sheet
Operating Wavelength(nm)	1260-1650	Inspected Date	2017/11/21
P/N:	1x16-PLC-0.9-1.0	S/N:	1711116001
Fiber Type	G.657A with 0.9mm lose tube	Fiber Length(m)	≥1.0
Connector Type	SC/APC	Package Dimension(mm)	60124
Storage Temperature	-40~+85℃	Operating Temperature	-40~+85℃

Item	IL(dB)		PDL(dB)		RL(dB)
Item	1310	1550	1310	1550	1310	1550
Spec.	MAX13.6	MAX13.6	MAX 0.25	MAX 0.25	≥55	≥55
Port1	13.11	13.34	0.03	0.03	Pass	Pass
Port2	13.26	13.41	0.03	0.03	Pass	Pass
Port3	13.28	13.15	0.04	0.03	Pass	Pass
Port4	13.39	13.09	0.04	0.02	Pass	Pass
Port5	13.35	13.03	0.03	0.04	Pass	Pass
Port6	13.48	13.40	0.04	0.04	Pass	Pass
Port7	13.33	13.45	0.03	0.02	Pass	Pass
Port8	13.26	13.33	0.04	0.03	Pass	Pass
Port9	13.02	13.33	0.03	0.04	Pass	Pass
Port10	13.46	13.38	0.02	0.03	Pass	Pass
Port11	13.27	13.25	0.02	0.04	Pass	Pass
Port12	13.46	13.15	0.04	0.02	Pass	Pass
Port13	13.24	13.17	0.04	0.03	Pass	Pass
Port14	13.15	13.42	0.03	0.04	Pass	Pass
Port15	13.32	13.44	0.03	0.03	Pass	Pass
Port16	13.02	13.19	0.03	0.03	Pass	Pass
Input	N/A	N/A	Pass	Pass	Pass	Pass
MAX.	13.48	13.45	0.04	0.04	N/A	N/A
MIN.	13.02	13.03	0.02	0.02	N/A	N/A
Average	13.28	13.28	0.03	0.03	N/A	N/A
Uniformity(≤1.0dB)	0.46	0.473	Directivity(dB) ≥55

Applications

CATV Systems
Active Device Termination
Telecommunication Networks
Metro Networks
Local Area Networks
Data Processing Networks
Test Equipment
Premise Installation
Wide Area Networks

Key Features

PC, UPC, APC polishing available
High return loss performance
Low insertion loss
High reliability and stability
Available for singlemode/multimode and simplex/duplex configurations
0.9mm, 2.0mm, 3.0mm diameter cable options
High strength stainless steel construction, passes salt spray test
Ferrule core less than 0.5μm
100% new raw material, ROHS compliant
Low PDL compact design
Excellent channel-to-channel uniformity
Wide operating wavelength: 1260nm to 1650nm
Wide operating temperature: -40℃ to 85℃

Company Profile

New Light Optics Technology Limited is a high-tech company specializing in the research, development, manufacturing, sales, and service of optical communication products. Established in 2011, our factory has over 6 years of OEM and manufacturing experience serving customers worldwide.

Our comprehensive product line includes: Patch Cords/Pigtails, Patch Cord Cables, MTP/MPO Patch Cords, Fiber Optical Adapters, Attenuators, Fiber Optical Connectors, and more. Our products are widely used in telecommunications, fiber optical CATV, digital internet fiber transmission, data base stations, and related applications.

We maintain high-tech capabilities with professional R&D teams, advanced production equipment, and skilled engineers. Our rigorous quality control system ensures products meet the highest standards, serving customers in over 60 countries including USA, Europe, Brazil, Middle East, and Asia.

Packaging & Shipping

Packaging: Bags & carton boxes
Shipping Options: International Express via FedEx, DHL, UPS, TNT, EMS, or by sea
FedEx Overnight: 1-3 business days delivery (excluding weekends and holidays)
DHL: 2-4 business days delivery (excluding weekends and holidays). Some countries may experience longer delivery times due to customs clearance
Custom carrier preferences accommodated with advance notification

Payment Terms

Accepted payment methods: T/T, PayPal, Western Union, Money Gram, L/C

Standard terms: 30% deposit in advance, 70% balance paid before delivery

Customer Service

Dedicated Support

"One to one" personalized service with sales representatives serving only five clients each to ensure focused attention and long-term partnership.

Comprehensive After-Sales

24-hour designated telephone support, email assistance, and dedicated customer management.

Extended Warranty

3-year warranty coverage. Free polishing or testing services for non-artificially damaged cables (customer responsible for freight costs).
