SFP Module XFP Transceiver with 20KM Distance 1310nm Wavelength and 10G Data Rate for Fiber Optic Networks

Brand Name:	NEW LIGHT
Model Number:	MPO / MTP
MOQ:	1
Price:	3.5~20
Packaging Details:	export packing
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE , ISO , RoHS

Mode Type:

Single Mode

Speed:

10/100/1000M

Data Rate:

2.5G/1.25G

Certificate:

CE , ISO ,RoHS TUV , EMC

Distance:

Wavelength:

1310 / 1550nm

Power:

-3-9dBM

Warranty:

3 Years

Operating Temperature:

Application:

FTTH / FTTB / FTTX

Products:

XFP 10G 10 - 20 Km 1310nm Fiber Optic Transceiver SFP Module BIDI SC DDM

Supply Ability:

1000000

Highlight:

gigabit ethernet transceiver

single mode fiber transceiver

Product Description

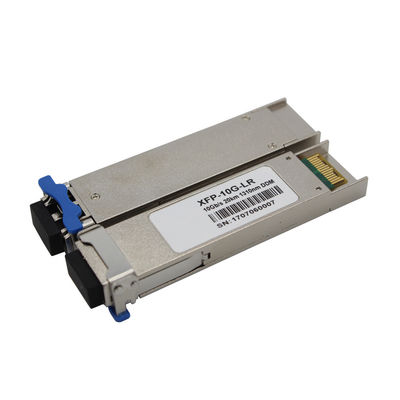

XFP 10G 10-20 km 1310nm Fiber Optic Transceiver

XFP-10G-LR Small Form Factor 10Gb/s transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with 10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.

Key Features

Support multi protocol from 9.95Gb/s to 11.3Gb/s
Hot pluggable 30 pin connector
Compliant with XFP MSA
Transmission distance of 20km over Single mode fiber
1310nm DFB laser transmitter
Duplex LC connector
2-wire interface for management and diagnostic monitor
XFI electrical interface with AC coupling
Single power supply voltages: +3.3V
Temperature range 0°C to 70°C
Power dissipation: <1.5W
RoHS Compliant Part

Ordering Information

Dual Fiber SFP Transmitter

Part Number	Product Description
155Mbp/s SFP Transmitter
FE-SX-MM850	155Mbps, 850nm MM 2km Dual LC, DDM 0°C~+70°C
FE-SX-MM1310	155Mbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
FE-LX20-SM1310	155Mbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
FE-LX40-SM1310	155Mbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
FE-LX80-SM1550	155Mbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
FE-LX120-SM1550	155Mbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
1.25Gbps SFP Transmitter
GE-SX-MM850	1.25Gbps, 850nm MM 500m Dual LC, DDM 0°C~+70°C
GE-SX-MM1310	1.25gbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
GE-LX20-SM1310	1.25Gbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
GE-LX40-SM1310	1.25Gbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
GE-LX60-SM1550	1.25Gbps, 1550nm SM 60km Dual LC, DDM 0°C~+70°C
GE-LX80-SM1550	1.25Gbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
GE-LX120-SM1550	1.25Gbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
10Gbps SFP Transmitter
SFP+-10GB-SR	10G SFP+ SR Multi mode dual fiber LC 850nm 300M
SFP+-10GB-LRM	10G SFP+ LRM Multi mode dual fiber LC 1310nm 220M
SFP+-10GB-LR	10G SFP+ LR Single mode dual fiber LC 1310nm 20km
SFP+-10GB-ER	10G SFP+ER Single mode dual fiber LC 1550nm 40km
SFP+-10GB-ZR	10G SFP+ZR Single mode dual fiber LC 1550nm 80km
SFP+10G40-CWDM	1470 ~1610nm CWDM SFP+ 40km
SFP+10G80-CWDM	1470~1570nm CWDM SFP+ 80km
SFP+10G80-CWDM	1590~1610nm CWDM SFP+ 80km
SFP+10G40-DWDM	DWDM SFP+ 40km
SFP+10G80-DWDM	DWDM SFP+ 80km
NF-CWDM-XFP40	1470 ~1610nm CWDM XFP 40km
NF-CWDM-XFP80	1470~1570nm CWDM XFP 80km
NF-CWDM-XFP80	1590~1610nm CWDM XFP 80km
NF-DWDM-XFP40	DWDM XFP 40km
NF-DWDM-XFP80	DWDM XFP 80km
NF-DWDM-XFP100	DWDM XFP100km

Applications

10GBASE-LR/LW Ethernet
SONET OC-192 /SDH
1200-SM-LL-L 10G Fibre Channel
Other optical links

Additional Product Description

TRANSCOM'S TS-SF-T12-02-2 10/100/1000 BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the Gigabit Ethernet standards as specified in IEEE Std 802.3. The 10/100/1000 BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.

The TS-SF-T12-02-2 is compatible with 1000BASE-X auto-negotiation, but does not have a link indication feature (RX_LOS is internally grounded).

Company Introduction

New Light Optics Technology Limited specializes in optical communication products R&D, manufacturing, sales and service as a high-tech company. Our factory was established in 2011 with 6 years of OEM and manufacturing experience for customers worldwide.

Our product line includes: Patch Cord/Pigtails, Patch Cord Cables, MTP/MPO Patch Cord, Fiber Optical adapter, attenuator, Fiber optical connector, etc. Our products are widely used in Telecommunications, Fiber optical CATV, digital internet fiber transmission, data base stations, and more.

Our company features high-tech technology, professional R&D teams, advanced production equipment, and sophisticated engineering skills. With high quality control systems, our products are delivered to customers in USA, Europe, Brazil, Middle East, and Asia across more than 60 countries and areas.

Packing Details

10pcs/anti-static box, 40pcs/anti-static box.

Preferred carrier options:

FedEx Overnight: 1-3 business days for delivery
DHL: 2-4 business days for delivery (longer for Spain, Italy, Brazil due to customs clearance)

Our Services

"One to one" personalized service: Sales representatives serve only five clients each for long-term relationships
Perfect after-sales service: 24-hour designated telephone number, email and customer manager support
Long warranty: 3 years warranty with free polishing or testing for non-artificially damaged cables (customer pays freight)

Payment Options

T/T, PAYPAL, WESTERN UNION, MONEY GRAM, L/C

30% deposit in advance, 70% balance paid before delivery
