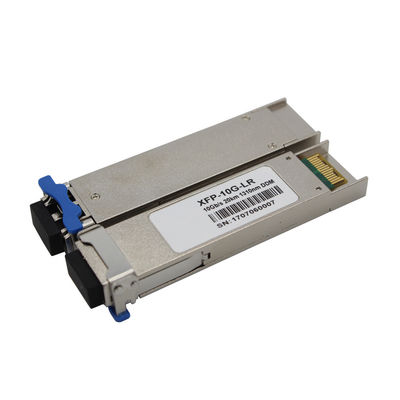

XFP-10G-LR Fiber Optic Transceiver 10Gb/s Single Mode with 20KM Distance and 3 Years Warranty

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

XFP-10G-LR Fiber Optic Transceiver 10Gb/s Single Mode with 20KM Distance and 3 Years Warranty

Brand Name:	NEW LIGHT
Model Number:	MPO / MTP
MOQ:	1
Price:	3.5~20
Packaging Details:	export packing
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE , ISO , RoHS

Mode Type:

Single Mode

Speed:

10/100/1000M

Data Rate:

2.5G/1.25G / 10G

Certificate:

CE , ISO ,RoHS TUV , EMC

Distance:

Wavelength:

1310 / 1550nm

Power:

-3-9dBM

Warranty:

3 Years

Operating Temperature:

Application:

FTTH / FTTB / FTTX

Products:

XFP-10G-LR Small Form Factor 10Gb/s (XFP) Transceivers SFP SM

Supply Ability:

1000000

Highlight:

gigabit ethernet transceiver

single mode fiber transceiver

Product Description

XFP-10G-LR Fiber Optic Transceiver

10Gb/s SFP Single Mode with 3-Year Warranty

Product Features

Up to 10.7Gbps Data Links
Single Mode LC Receptacle
Up to 10km transmission on Single Mode Fiber
Power dissipation <1.2W
1270nm DFB laser and PIN receiver
2-wire interface with integrated Digital Diagnostic monitoring
EEPROM with Serial ID Functionality
Compliant with SFP+ MSA with duplex LC connector
Single +3.3V Power Supply and LVTTL Logic
Case operating temperature: -5°C to +70°C

Standards Compliance

Compliant with SFF-8472 and SFP+ MSA
Compliant to SFP+ SFF-8431 and SFF-8432
Compliant to 802.3ae 10GBASE-LR

Product Description

TS-XPBL-273310-10D is a hot-pluggable 3.3V Small-Form-Factor transceiver module designed expressly for high-speed communication applications requiring data rates up to 10.7Gbps. The module is compliant with SFF-8472 and SFP+ MSA standards and supports data links up to 10km using 9/125μm single mode fiber.

The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault indicates laser degradation, while Loss of Signal (LOS) output indicates loss of input optical signal or link status with partner equipment.

Applications

10GBASE-BX at 10.3125 Gb/s
10GBASE-BX at 9.953 Gb/s

Ordering Information

Dual Fiber SFP Transmitters

155Mbps SFP Transmitters

Part Number	Product Description
FE-SX-MM850	155Mbps, 850nm MM 2km Dual LC, DDM 0°C~+70°C
FE-SX-MM1310	155Mbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
FE-LX20-SM1310	155Mbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
FE-LX40-SM1310	155Mbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
FE-LX80-SM1550	155Mbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
FE-LX120-SM1550	155Mbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C

1.25Gbps SFP Transmitters

Part Number	Product Description
GE-SX-MM850	1.25Gbps, 850nm MM 500m Dual LC, DDM 0°C~+70°C
GE-SX-MM1310	1.25Gbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
GE-LX20-SM1310	1.25Gbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
GE-LX40-SM1310	1.25Gbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
GE-LX60-SM1550	1.25Gbps, 1550nm SM 60km Dual LC, DDM 0°C~+70°C
GE-LX80-SM1550	1.25Gbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
GE-LX120-SM1550	1.25Gbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C

10Gbps SFP Transmitters

Part Number	Product Description
SFP+-10GB-SR	10G SFP+ SR Multi mode dual fiber LC 850nm 300M
SFP+-10GB-LRM	10G SFP+ LRM Multi mode dual fiber LC 1310nm 220M
SFP+-10GB-LR	10G SFP+ LR Single mode dual fiber LC 1310nm 20km
SFP+-10GB-ER	10G SFP+ER Single mode dual fiber LC 1550nm 40km
SFP+-10GB-ZR	10G SFP+ZR Single mode dual fiber LC 1550nm 80km
SFP+10G40-CWDM	1470~1610nm CWDM SFP+ 40km
SFP+10G80-CWDM	1470~1570nm CWDM SFP+ 80km
SFP+10G80-CWDM	1590~1610nm CWDM SFP+ 80km
SFP+10G40-DWDM	DWDM SFP+ 40km
SFP+10G80-DWDM	DWDM SFP+ 80km
NF-CWDM-XFP40	1470~1610nm CWDM XFP 40km
NF-CWDM-XFP80	1470~1570nm CWDM XFP 80km
NF-CWDM-XFP80	1590~1610nm CWDM XFP 80km
NF-DWDM-XFP40	DWDM XFP 40km
NF-DWDM-XFP80	DWDM XFP 80km
NF-DWDM-XFP100	DWDM XFP 100km

Additional Product Information

TRANSCOM'S TS-SF-T12-02-2 10/100/1000 BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) and compatible with Gigabit Ethernet standards as specified in IEEE Std 802.3. The 10/100/1000 BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.

The TS-SF-T12-02-2 is compatible with 1000BASE-X auto-negotiation but does not have a link indication feature (RX_LOS is internally grounded).

Company Introduction

New Light Optics Technology Limited is a high-tech company specializing in the R&D, manufacture, sales, and service of optical communication products. Established in 2011, our factory has 6 years of OEM and manufacturing experience serving customers worldwide.

Our product line includes: Patch Cord/Pigtails, Patch Cord Cables, MTP/MPO Patch Cord, Fiber Optical Adapters, Attenuators, Fiber Optical Connectors, and more. Our products are widely used in Telecommunications, Fiber Optical CATV, digital internet fiber transmission, data base stations, and other applications.

We maintain high-tech capabilities with a professional R&D team, advanced production equipment, and sophisticated engineering skills. Our quality control system ensures products meet the highest standards, serving over 60 countries including USA, Europe, Brazil, Middle East, and Asia.

Packaging & Shipping

Packaging: 10pcs/anti-static box or 40pcs/anti-static box

Shipping Options:

• FedEx Overnight: 1-3 business days (weekends and holidays excepted)

• DHL: 2-4 business days (weekends and holidays excepted). Some countries may experience longer delivery times due to customs clearance.

Our Services

• "One to one" personalized service: Each sales representative serves only five clients to ensure dedicated support

• Comprehensive after-sales service: 24-hour designated telephone number, email, and customer manager support

• Long warranty: 3-year warranty with free polishing or testing for non-artificially damaged cables (customer responsible for freight)

Payment Terms

Accepted Methods: T/T, PAYPAL, WESTERN UNION, MONEY GRAM, L/C

Terms: 30% deposit in advance, 70% balance paid before delivery
