1.25G 10km Single Mode SFP Transceiver Fiber Optic Transceiver for Optical Transmission Systems

Brand Name:	NEW LIGHT
Model Number:	MPO / MTP
MOQ:	1
Price:	3.5~20
Packaging Details:	export packing
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE , ISO , RoHS

Mode Type:

Single Mode

Speed:

10/100/1000M

Data Rate:

2.5G/1.25G / 10G

Certificate:

CE , ISO ,RoHS TUV , EMC

Wavelength:

1310 / 1550nm

Power:

-3-9dBM

Warranty:

3 Years

Operating Temperature:

Application:

FTTH / FTTB / FTTX

Products:

1.25G 10 Km SFP Transceivers Fiber Optic Transceiver For Optical Transmission Systems

Supply Ability:

1000000

Highlight:

gigabit ethernet transceiver

single mode fiber transceiver

Product Description

SFP Transceivers Fiber Optic Transceiver 1.25G 10km

High-performance, cost-effective 1.25G 10km SFP transceivers for optical transmission systems

Product Overview

These SFP transceivers are high-performance, cost-effective modules consisting of three sections: FP laser transmitter, PIN photodiode, and MCU control unit. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472 standards.

Key Features

Up to 4.25G data rate capability
Transmission distance up to 120km
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring: Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1
RoHS compliant
+3.3V single power supply
Operating case temperature: Standard (0 to +70°C) and Industrial (-40 to +85°C)

Technical Specifications

Multi-mode fiber (black or beige extraction lever):
- SX - 850 nm, maximum 550 m at 1.25 Gbit/s (Gigabit Ethernet) or 150m at 4.25 Gbit/s (Fibre Channel)
Single-mode fiber (blue extraction lever):
- LX - 1310 nm, distances up to 10 km
- EX - 1310 nm, distances up to 40 km
- ZX - 1550 nm, distances up to 80 km
- EZX - 1550 nm, distances up to 120 km
- BX - 1490 nm/1310 nm
- 1550 nm 40 km (XD), 80 km (ZX), 120 km (EX or EZX)
- SFSW - Single Fiber Single Wavelength transceivers for bi-directional traffic
- CWDM and DWDM transceivers at various wavelengths
Copper twisted pair cabling:
- 1000BASE-T - For Gigabit Ethernet with significant interface circuitry

Product List

Part Number	Data Rate	Wavelength	Fiber Type	Distance	Package	Temperature	Source
SFP (155M/622M/1.25G/2.125G/2.5G/4.25G) without DDMI
RSFP-0385M-02	155M	850	MM	2KM	SFP	0~70	850nm VCSEL
RSFP-0331M-02	155M	1310	MM	2KM	SFP	0~70	FP(LED)+PIN
RSFP-0331S-L2	155M	1310	SM	20KM	SFP	0~70	FP+PIN
RSFP-0331S-L4	155M	1310	SM	40KM	SFP	0~70	FP+PIN
RSFP-0355S-L8	155M	1550	SM	80KM	SFP	0-70	DFB+PIN
RSFP-1231S-L2	622M	1310	SM	20KM	SFP	0~70	FP+PIN
RSFP-1231S-L4	622M	1310	SM	40KM	SFP	0~70	DFB+PIN
RSFP-1255S-L6	622M	1550	SM	60KM	SFP	0~70	DFB+PIN
RSFP-1255S-L8	622M	1550	SM	80KM	SFP	0~70	DFB+PIN
RSFP-2485M-S5	1.25G	850	MM	550M	SFP	0~70	VSCEL+PIN
RSFP-2431S-L2	1.25G	1310	SM	20KM	SFP	0~70	FP+PIN
RSFP-2431S-L4	1.25G	1310	SM	40KM	SFP	0~70	DFB+PIN
RSFP-2455S-L6	1.25G	1550	SM	60KM	SFP	0~70	DFB+PIN
RSFP-2455S-L8	1.25G	1550	SM	80KM	SFP	0~70	DFB+PIN
RSFP-2455S-12	1.25G	1550	SM	120KM	SFP	0~70	DFB+APD
RSFP-4885M-S3	2.125G/2.5G	850	MM	300M	SFP	0~70	VSCEL+PIN
RSFP-4831S-02	2.125G/2.5G	1310	SM	2KM	SFP	0~70	FP+PIN
RSFP-4831S-L2	2.125G/2.5G	1310	SM	20KM	SFP	0~70	DFB+PIN
RSFP-4855S-L6	2.125G/2.5G	1550	SM	60KM	SFP	0~70	DFB+APD
RSFP-4855S-L8	2.125G/2.5G	1550	SM	80KM	SFP	0~70	DFB+APD
SFP (155M/1.25G/2.125G/2.5G/4.25G) with DDMI
RSFP-0385M-02D	155M	850	MM	2KM	SFP	0~70	850nm VCSEL
RSFP-0331M-02D	155M	1310	MM	2KM	SFP	0~70	FP(LED)+PIN
RSFP-0331S-L1D	155M	1310	SM	10KM	SFP	0~70	FP+PIN
RSFP-0331S-L4D	155M	1310	SM	40KM	SFP	0~70	FP+PIN
RSFP-0355S-L8D	155M	1550	SM	80KM	SFP	0-70	DFB+PIN
RSFP-1231S-L2D	622M	1310	SM	20KM	SFP	0~70	FP+PIN
RSFP-1231S-L4D	622M	1310	SM	40KM	SFP	0~70	DFB+PIN
RSFP-2485M-S5D	1.25G	850	MM	550M	SFP	0~70	VSCEL+PIN
RSFP-2431S-L2D	1.25G	1310	SM	20KM	SFP	0~70	FP+PIN
RSFP-2431S-L4D	1.25G	1310	SM	40KM	SFP	0~70	DFB+PIN
RSFP-2455S-L6D	1.25G	1550	SM	60KM	SFP	0~70	DFB+PIN
RSFP-2455S-L8D	1.25G	1550	SM	80KM	SFP	0~70	DFB+PIN
RSFP-2455S-12D	1.25G	1550	SM	120KM	SFP	0~70	DFB+APD
RSFP-4885M-S3D	2.125G/2.5G	850	MM	300M	SFP	0~70	VSCEL+PIN
RSFP-4831S-02D	2.125G/2.5G	1310	SM	2KM	SFP	0~70	FP+PIN
RSFP-4831S-L2D	2.125G/2.5G	1310	SM	20KM	SFP	0~70	DFB+PIN
RSFP-4831S-L4D	2.125G/2.5G	1310	SM	40KM	SFP	0~70	DFB+APD
RSFP-4855S-L6D	2.125G/2.5G	1550	SM	60KM	SFP	0~70	DFB+APD
RSFP-4855S-L8D	2.125G/2.5G	1550	SM	80KM	SFP	0~70	DFB+APD
RSFP-4855-12D	2.125G/2.5G	1550	SM	120KM	SFP	0~70	DFB+APD
RSFP-4G85M-S5D	4.25G	850	MM	500M	SFP	0~70	VSCEL+PIN
RSFP-4G31S-L1D	4.25G	1310	SM	10km	SFP	0~70	DFB+PIN
RSFP-4G31S-L3D	4.25G	1310	SM	30km	SFP	-20~85	DFB+PIN
RSFP-4G31S-02D	4.25G	1310	SM	2KM	SFP	-20~85	FP+PIN

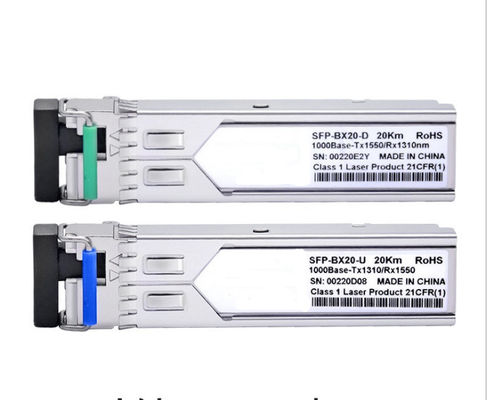

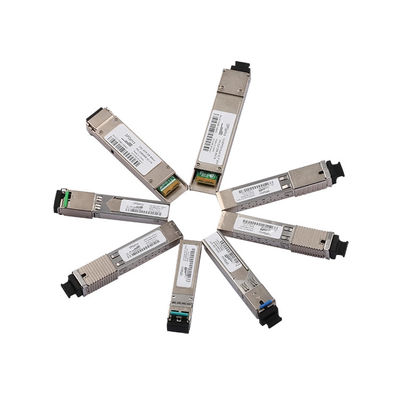

Product Images

Applications

Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems

Additional Products

Company Introduction

New Light Optics Technology Limited is a high-tech company specializing in optical communication products R&D, manufacturing, sales, and service. Established in 2011, our factory has 6 years of OEM and manufacturing experience serving customers worldwide.

Our product line includes: Patch Cord/Pigtails, Patch Cord Cables, MTP/MPO Patch Cord, Fiber Optical adapter, attenuator, Fiber optical connector, and more. Our products are widely used in Telecommunications, Fiber optical CATV, digital internet fiber transmission, data base stations, and other applications.

We have advanced technology, professional R&D teams, sophisticated production equipment, and skilled engineers. With a high-quality control system, our products are delivered to over 60 countries worldwide including USA, Europe, Brazil, Middle East, and Asia.

Production Facilities

Quality Control

Packing & Shipping

10pcs/anti-static box or 40pcs/anti-static box

Preferred carriers:

FedEx Overnight: 1-3 business days delivery (weekends and holidays excepted)
DHL: 2-4 business days delivery (weekends and holidays excepted). For Spain, Italy, Brazil and some other countries, items may take longer due to customs clearance.

Our Services

"One to one" personalized service: Sales representatives serve only five clients each for dedicated support
Perfect after-sales service: 24-hour designated telephone number, email, and customer manager
Long warranty: 3 years warranty with free polishing or testing for non-artificially damaged cables (customer pays freight)

Payment Methods

T/T, PAYPAL, WESTERN UNION, MONEY GRAM, L/C

30% deposit in advance, 70% balance paid before delivery
