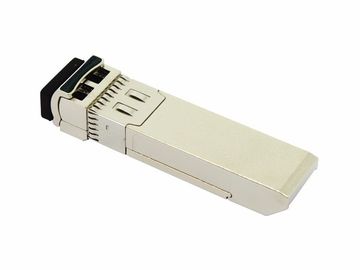

10 G SFP + 300 m 850 nm fiber optic transceiver OLSP851XL- C(I)DS3
Product Features
• Supports up to 11.3Gb/s bit rates
• Duplex LC connector
• Hot pluggable SFP+ footprint
• 850nm VCSEL transmitter, PIN photo-detector
• Up to 300m on 50/125um MMF(2000MHZ.KM)
• Low power consumption, < 1W
• Digital Diagnostic Monitor Interface
• Optical interface compliant to IEEE 802.3ae
• Electrical interface compliant to SFF-8431
• Operating case temperature:
Commerical:0~70°C
Industrial:-40 to 85 °C
Product Descriptions
OLSP851XL-C(I)DS3 Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet over MultiMode fiber. They are compliant with SFF-8431,SFF-8432 and IEEE 802.3ae 10GBASE-SR/SW. The transceiver designs are optimized for high perform-ance and cost effective to supply customers the best solutions for telecommunication and datacom.
Ordering Information
| Part Number | Description |
| OLSP851XL-CDS3 | SFP+,up to 11.3Gb/s, 850nm, 300m, 0~70℃, with Digital Diagnostic Monitor |
| OLSP851XL-IDS3 | SFP+,up to 11.3Gb/s, 850nm, 300m, -40~85℃, with Digital Diagnostic Monitor |
| Parameter | Symbol | Min. | Max . | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % |
| Parameter | Symbol | Min | Typ | Max | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 840 | 850 | 860 | nm | |
| Ave.output power | PAVE | -6 | -1 | dBm | 1 | |
| Extinction Ratio | ER | 4 | 4.5 | dB | ||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | |||
| Dispersion penalty | TDP | 3.9 | dB | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 840 | 850 | 860 | nm | ||
| Receiver Sensitivity(ER=4.5) | PSEN1 | -11.1 | dBm | 3 | ||
| Overload | PAVE | 0.5 | dBm | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -12 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured at 10.3125b/s with PRBS 2 31 – 1 NRZ test pattern.
2.20%~80%
Serial Interface for ID and Digital Diagnostic Monitor
The OLSP851XL-C(I)DS3 transceiver support the 2-wire serial communication protocol as defined in the SFP+ MSA. The standard SFP+ serial ID provides access to identification information that describes the transceiver’s capabilities, standard interfaces, manufacturer, and other information. Additionally, This SFP+ transceivers provide an enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning flags, which alerts end-users when particular operating parameters are outside of a factory set normal range. The SFP MSA defines a 256-byte memory map in EEPROM that is accessible over a 2-wire serial interface at the 8 bit address 1010000X(A0h), so the originally monitoring interface makes use of the 8 bit address(A2h), so the originally defined serial ID memory map remains unchanged. The structure of the memory map is shown in Table1
Applications
• 10G Base-SR/SW at 10.3125G
v10G Fiber Channel
• Other optical links
