10G SFP+ Fiber Optic Transceiver with 300m Distance and 850nm Wavelength for High-Speed Data Transmission

Brand Name:	NEW LIGHT
Model Number:	OLSP851XL-C(I)DS3
MOQ:	1
Price:	3.5~20
Packaging Details:	export packing
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE , ISO , RoHS

Speed:

10/100/1000M

Data Rate:

Certificate:

CE , ISO ,RoHS TUV , EMC

Wavelength:

850nm

Application:

10G Base-SR/SW At 10.3125G

Products:

10 G SFP + 300 M 850 Nm Fiber Optic Transceiver OLSP851XL- C(I)DS3

Distance:

Operating Case Temperature::

Commerical:0~70°C

Speed:

10/100/1000M

Data Rate:

Certificate:

CE , ISO ,RoHS TUV , EMC

Wavelength:

850nm

Application:

10G Base-SR/SW At 10.3125G

Products:

10 G SFP + 300 M 850 Nm Fiber Optic Transceiver OLSP851XL- C(I)DS3

Distance:

Operating Case Temperature::

Commerical:0~70°C

Supply Ability:

1000000

Highlight:

sfp optical transceiver

gigabit ethernet transceiver

Product Description

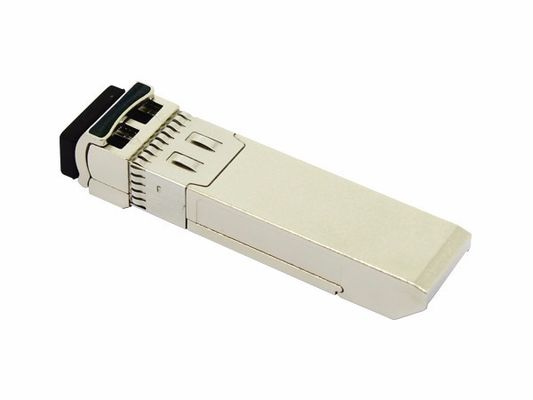

10 G SFP+ 300m 850nm Fiber Optic Transceiver

Product Overview

OLSP851XL-C(I)DS3 Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet over MultiMode fiber. These transceivers are compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-SR/SW standards, optimized for high performance and cost-effective solutions in telecommunications and datacom applications.

Key Features

Supports up to 11.3Gb/s bit rates
Duplex LC connector
Hot pluggable SFP+ footprint
850nm VCSEL transmitter, PIN photo-detector
Up to 300m on 50/125μm MMF (2000MHz·km)
Low power consumption < 1W
Digital Diagnostic Monitor Interface
Optical interface compliant to IEEE 802.3ae
Electrical interface compliant to SFF-8431
Operating case temperature: Commercial: 0~70°C / Industrial: -40 to 85°C

Ordering Information

Part Number	Description
OLSP851XL-CDS3	SFP+, up to 11.3Gb/s, 850nm, 300m, 0~70℃, with Digital Diagnostic Monitor
OLSP851XL-IDS3	SFP+, up to 11.3Gb/s, 850nm, 300m, -40~85℃, with Digital Diagnostic Monitor

Technical Specifications

Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit
Supply Voltage	Vcc	-0.5	4.0	V
Storage Temperature	TS	-40	85	°C
Relative Humidity	RH	0	85	%

Operating Parameters

Parameter	Symbol	Min	Typ	Max	Unit	Note
Transmitter
Operating Wavelength	λ	840	850	860	nm
Ave. output power	PAVE	-6		-1	dBm	1
Extinction Ratio	ER	4	4.5		dB
RMS spectral width	Δλ			1	nm
Rise/Fall time (20%~80%)	Tr/Tf			50	ps
Dispersion penalty	TDP			3.9	dB
Output Optical Eye	Compliant with IEEE 0802.3ae
Receiver
Operating Wavelength		840	850	860	nm
Receiver Sensitivity(ER=4.5)	PSEN1			-11.1	dBm	3
Overload	PAVE			0.5	dBm
LOS Assert	Pa	-30			dBm
LOS De-assert	Pd			-12	dBm
LOS Hysteresis	Pd-Pa	0.5			dB

Notes:
1. Measured at 10.3125b/s with PRBS 2^31 - 1 NRZ test pattern.
2. 20%~80%
3. Under the ER worst case=4.5@ 10.3125 Gb/s with PRBS 2^31 - 1 NRZ test pattern for BER < 1x10^-12

Digital Diagnostic Monitoring

The OLSP851XL-C(I)DS3 transceiver supports the 2-wire serial communication protocol as defined in the SFP+ MSA. It provides access to identification information describing the transceiver's capabilities, standard interfaces, manufacturer details, and real-time monitoring of operating parameters including temperature, laser bias current, transmitted optical power, received optical power, and supply voltage. The system includes alarm and warning flags for parameters outside factory-set normal ranges.

Applications

10G Base-SR/SW at 10.3125G
10G Fiber Channel
Other optical links

Company Profile

New Light Optics Technology Limited is a high-tech company specializing in the R&D, manufacture, sales and service of optical communication products. Established in 2011, our factory has over 6 years of OEM and manufacturing experience serving customers worldwide.

Our product line includes: Patch Cord/Pigtails, Patch Cord Cables, MTP/MPO Patch Cord, Fiber Optical Adapters, Attenuators, Fiber Optical Connectors, and more. Our products are widely used in Telecommunications, Fiber Optical CATV, digital internet fiber transmission, data base stations, and related applications.

With advanced technology, professional R&D teams, sophisticated engineering skills, and high-quality control systems, our products are supplied to over 60 countries and areas including USA, Europe, Brazil, Middle East, and Asia, earning high reputation and positive feedback from customers.

Packaging & Shipping

Packaging: 10pcs/anti-static box or 40pcs/anti-static box

Shipping Options:

FedEx Overnight: 1-3 business days
DHL: 2-4 business days (longer for Spain, Italy, Brazil due to customs)
Other carriers available: UPS, TNT, EMS, or by sea

Payment Terms

Accepted Methods: T/T, PAYPAL, Western Union, Money Gram, L/C

Terms: 30% deposit in advance, 70% balance paid before delivery

Customer Service

"One to One" Service: Dedicated sales representatives serving limited clients for long-term partnership

After-Sales Support: 24-hour designated telephone, email and customer manager

Warranty: 3 years warranty with free polishing or testing for non-artificially damaged cables (customer pays freight)
