12 Fibers Fan Out MTP MPO Cable OM3 OM4 for Interconnect Cassettes and High Density Backbone Cabling

Brand Name:	New Light
Model Number:	MPO MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + Carton box
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE , ISO , RoHS

Material:

PVC / LSZH

Connector Type:

MPO / MTP Male And Female

Mode:

Single / Multi Mode

Delivery Time:

2-7 Days After Receive Payment

Production:

500 Pcs Per Day

Length:

As Your Requirement

Shipping Term:

By Sea Or By Air

Fiber Cord:

8 Core / 12 Core / 32 Core

Products Name:

MTP MPO Cable OM3 / OM4 12 Fibers Fan Out MPO Male / Femal Connector

Supply Ability:

500 pcs per day

Highlight:

mpo fiber cable

mpo to mpo cable

Product Description

12 Fibers Fan Out MTP MPO Cable OM3/OM4 for Interconnect Cassettes

Product Overview

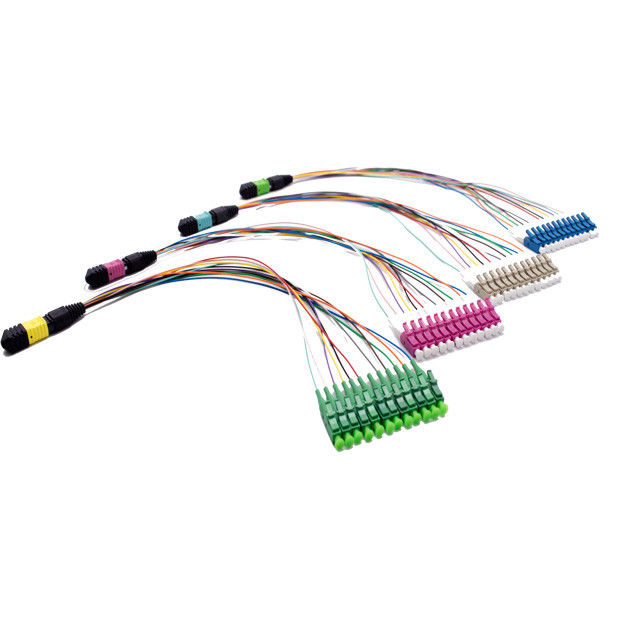

Data Transmission 12 Core MPO to LC Fan Out Patch Cord. MPO/MTP trunk cables are used to interconnect cassettes, panels or ruggedized MPO fan-outs, spanning MDA1, HAD and EDA zones, enabling rapid deployment of high density backbone cabling in data centers and other high fiber count environments while reducing network installation or reconfiguration time.

MPO/MTP trunk cables feature a compact and rugged microcable structure, available in different colors for SM, MM and 10G MM applications. Fiber counts range from 12 to 144 cores, with MTP polarity options including TIA Style A (up), Style B (down), and Style C (up/up).

Technical Specifications

MPO Series	MM Standard	MM Super Low Loss	SM Standard	MM Super Low Loss
Insertion Loss	Typical: 0.20dB (all fibers) Maximum: 0.40dB (single fiber)	Typical: 0.08dB (all fibers) Maximum: 0.25dB (single fiber)	Typical: 0.25dB (all fibers) Maximum: 0.75dB (single fiber)	Typical: 0.10dB (all fibers) Maximum: 0.35dB (single fiber)
Return Loss	≥25dB (Flat Polish)	≥25dB (Flat Polish)	≥60dB (8° Angle Polish)	≥60dB (8° Angle Polish)
Durability	≤0.2dB change, 1000 matings	≤0.2dB change, 1000 matings	≤0.3dB change, 500 matings	≤0.3dB change, 500 matings
Operating Temp.	-40ºC to +75ºC
Ferrules	4, 8, 12, 24	8, 12	4, 8, 12, 24	8, 12
Cable Color (Standard)	SM=Yellow OM1, OM2=Orange OM3, OM4=Aqua		SM=Yellow OM1, OM2=Orange OM3, OM4=Aqua

Fiber Cable Performance

Parameter	Specifications
Fiber Type	OS2, OM1, OM2, OM3, OM4
Fiber Count	12, 24, 48, 72, 96, 144 cores
Fiber Attenuation dB (OS2)	≤0.38 Max ≤0.34Typ (1310nm) ≤0.25 Max ≤0.19Typ (1550nm)
Fiber Attenuation dB (OM1)	≤3.5 Max ≤2.7Typ (850nm) ≤1.5Max ≤1.2Typ (1300nm)
Fiber Attenuation dB (OM2)	≤3.5 Max ≤2.7Typ (850nm) ≤1.5Max ≤0.9Typ (1300nm)
Fiber Attenuation dB (OM3)	≤3.5 Max ≤2.7Typ (850nm) ≤1.5Max ≤0.9Typ (1300nm)
Fiber Attenuation dB (OM4)	≤3.5 Max ≤2.7Typ (850nm) ≤1.5Max ≤0.9Typ (1300nm)
Min. Bandwidth: Overfilled Launch [Mhz-km]	OM1≥200(850nm) ≥500(1300nm) OM2≥500(850nm) ≥500(1300nm) OM3≥1500(850nm) ≥500(1300nm) OM4≥3500(850nm) ≥500(1300nm)
Min. Bandwidth: Laser Effective Modal Bandwidth [Mhz-km]	OM3 ≥2000(850nm) OM4 ≥4700(850nm)
Outer diameter	12fiber: 3.0 or 5.5mm 24fiber: 3.0 or 5.5mm
Outer jacket Colour	OS2 (Yellow), OM2 (Orange), OM3 (Aqua), OM4 (Purple or Aqua)
Outer jacket material	LSZH, OFNP, OFNR
Tensile strength	>500N
Operating Temperature	-40 ~ +85°C

Ordering & Packaging Information

Packaging meets standard export requirements with customer satisfaction as our primary goal.

Label printing: Customer logo or our brand available
Inner packing: 5pcs in one carton
Outer packing: Carton protected with sack to prevent dust and moisture
Transportation: Available by air, sea, DHL, FedEx, TNT, UPS

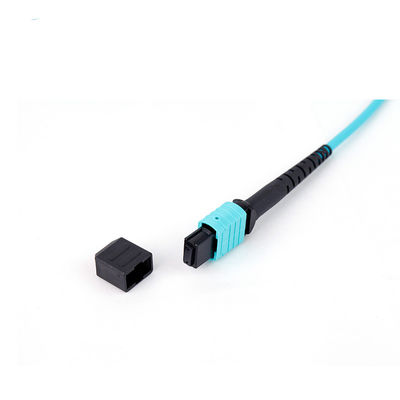

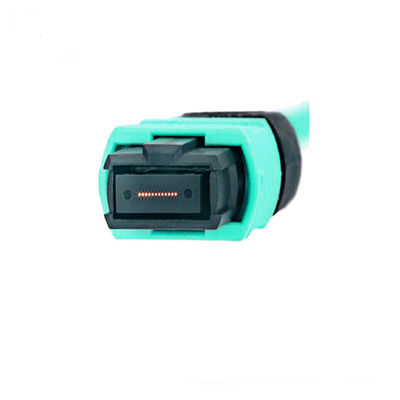

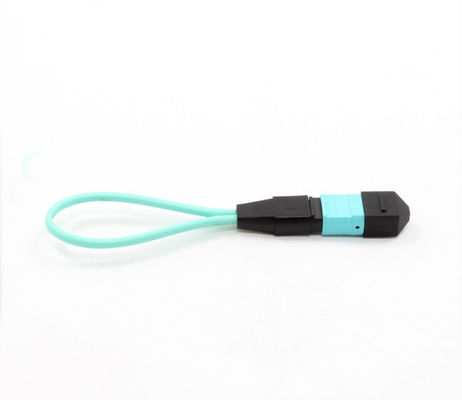

Product Images

Frequently Asked Questions

Q1. When can I get the price?

A1: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

Q2. Can you accept small order?

A2: Yes, small order is available in our company. We support new project of our customers as we know business is always from small to big. Your success is our business.

Q3. Can I order samples before placing the bulk order?

A3: Yes, sample is certainly for your test before the bulk order. It is normal process, we always deal with other clients.

Q4. What is your term of delivery?

A4: We accept EXW, FOB, CIF, CFR etc. You can choose the one which is the most convenient or cost effective for you.

Q5. What if there is quality problem when we get the goods?

A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you. Furthermore we will also take action to improve the quality in future.

Contact Us: WhatsApp +8613534063703
