Single Mode Fiber Optic Splitter 0.9 um with SC/APC Connector and 1x2/4/16 Port Configuration

Brand Name:	New Light
Model Number:	LC / FC / SC / ST / E2000
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Brand Name:

New Light

Fiber Type:

Connector Type:

LC / FC / SC / ST / E2000

Operating Wave:

1260-1650

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Fiber Length:

As Your Requirement

Warranty:

3 Years

Delivery Time:

2-10 Working Days After Receive Payment

Payment:

T/T , L/C , Paypal , Westen Union , Money Gram

Products Name:

1 X 2 / 4 / 16 SC / APC Coupler Fiber Optic Splitter 0.9 Um 1M PLC

Supply Ability:

1000000

Highlight:

fiber optic plc splitter

single mode fiber splitter

Product Description

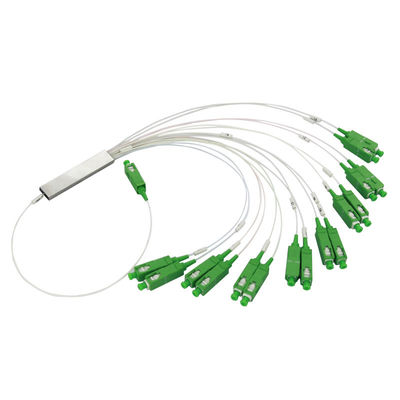

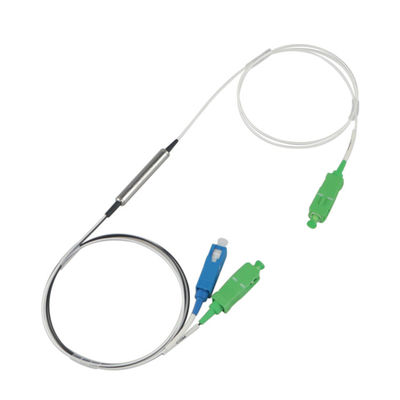

Single Mode Fiber PLC Splitter 1 X 2 / 4 / 16 SC / APC Coupler 0.9 µm

High-performance 1 x 2 / 4 / 16 SC / APC Coupler Fiber Optic Splitter with 0.9 µm 1M PLC technology, designed for reliable optical signal distribution.

Key Features

Miniature PLC Splitter with 900µm input and output tube diameter
Compact design with smaller structure compared to standard PLC splitters

Applications

FTTx Deployments (GPON/BPON/EPON)
Cable television (CATV)
Local area networks (LAN)
Test equipment
Passive optical networks (PON)

Technical Specifications

1xN PLC Splitter Specification

Parameter	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Operating Wavelength	1260~1650 nm
Fiber Type	G657A1 or as customers' order
Insertion Loss (dB)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0	2.5
Polarization Dependent Loss (dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Wavelength Dependent Loss (dB)	0.3	0.3	0.3	0.5	0.5	0.5	0.5
Temperature Dependent Loss (-40~85°C) (dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Return Loss (dB)	55/50
Operating Temperature	-40°C to +85°C
Directivity (dB)	≥ 55
Storage Temperature	-40°C to +85°C

2xN PLC Splitter Specification

Parameter	2x2	2x4	2x8	2x16	2x32	2x64	2x128
Operating Wavelength	1260~1650 nm
Fiber Type	G657A1 or as customers' order
Insertion Loss (dB)	4.0	7.6	11.0	14.4	17.5	21.0	24.5
Loss Uniformity (dB)	0.6	1.0	1.2	1.5	1.8	2.2	2.5
Polarization Dependent Loss (dB)	0.2	0.2	0.3	0.3	0.35	0.4	0.4
Wavelength Dependent Loss (dB)	0.3	0.4	0.5	0.5	0.5	0.5	0.5
Temperature Dependent Loss (-40~85°C) (dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Return Loss (dB)	55/50
Operating Temperature	-40°C to +85°C
Directivity (dB)	≥ 55
Storage Temperature	-40°C to +85°C

Dimensions (LxWxH in mm)

1x2: 60x7x4

1x4: 60x7x4

1x8: 60x7x4

1x16: 60x12x4

1x32: 80x20x6

1x64: 100x7x6

2x2: 60x7x4

2x4: 60x7x4

2x8: 60x7x4

2x16: 60x12x4

2x32: 80x12x6

Order Information

Company Introduction

New Light Optics Technology Limited is a high-tech company specializing in optical communication products R&D, manufacturing, sales, and service. Established in 2011, our factory has 6 years of OEM and manufacturing experience serving customers worldwide.

Our product line includes: Patch Cord/Pigtails, Patch Cord Cables, MTP/MPO Patch Cord, Fiber Optical Adapters, Attenuators, Fiber Optical Connectors, and more. Our products are widely used in Telecommunications, Fiber Optical CATV, digital internet fiber transmission, data base stations, and more.

With high-tech capabilities, professional R&D team, advanced production equipment, and sophisticated engineering skills, we maintain a high-quality control system. Our products are exported to over 60 countries including USA, Europe, Brazil, Middle East, and Asia.

Packaging & Shipping

Packaging: Bags & carton box

Shipping: International Express via FedEx, DHL, UPS, TNT and EMS, or by sea. Please notify us in advance if you have a preferred carrier.

FedEx Overnight: 1-3 business days for delivery

DHL: 2-4 business days for delivery (longer for Spain, Italy, Brazil and other countries due to customs clearance)

Payment Terms

Payment Methods: T/T, PAYPAL, Western Union, Money Gram, L/C

Terms: 30% deposit in advance, 70% balance paid before delivery

Our Services

"One to one" personalized service with dedicated sales representatives

24-hour after-sales service with designated telephone number, email and customer manager

3-year warranty with free polishing or testing for non-artificially damaged cables (customer pays freight)
