products details

Home > Products >

Fiber Optic Pigtail

12 Colors Multi-Mode 0.9mm Diameter Fiber Optic Pigtail for Data Communications

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

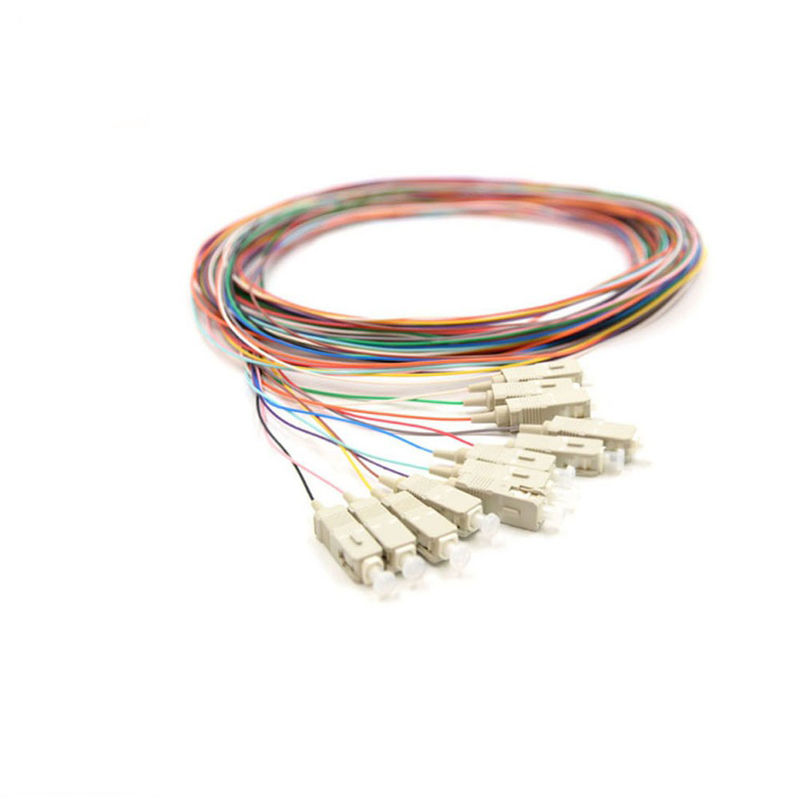

12 Colors Multi-Mode 0.9mm Diameter Fiber Optic Pigtail for Data Communications

Brand Name:	New Light
Model Number:	SC/ PC
MOQ:	1
Price:	0.2~10
Packaging Details:	OPP bag + carton box
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE , ISO , RoHS

Products Name:

SC PC 12 Colors Optic Fiber Pigtail Multi- Mode 0.9mm Optical Fiber Cable

Connector Type:

SC / PC

Mode Type:

Multi Mode

Cable Color:

12 Colors ( According To Your Request )

Cable Diameter:

0.9mm ( 0.9/2.0/3.0mm)

Cable Length:

Can Be Customized According To Your Request

Insertion Loss:

≤ 0.3 DB

Return Loss:

≥ 50dB

Delivery Time:

2-7 Working Days

Payment Term:

30% Deposit In Advance , 70% Balance Paid Before Delivery

Supply Ability:

1000000

Highlight:

single mode fiber pigtails

fibre optic tails

Product Description

12 Colors Fiber Optic Pigtail Multi-Mode For Data Communications

SC PC 12 Colors Optic Fiber Pigtail Multi-Mode 0.9mm Optical Fiber Cable

Fiber optic pigtails are available in single-mode (yellow) and multimode (orange) variants. Our multimode fiber optic pigtails utilize 62.5/125 micron or 50/125 micron bulk multimode fiber cables, terminated with multimode fiber optic connectors. 10G multimode fiber cables (OM3 or OM4) are also available, typically featuring aqua-colored jackets. Single-mode fiber pigtail cables use 9/125 micron single-mode fiber cable with single-mode fiber connectors.

Available connector types include LC, SC, ST, FC, MT-RJ, E2000 fiber pigtails, each offering distinct advantages for various applications and systems based on their structure and design.

Applications

Optical fiber communications systems
Optical fiber access network
Optical fiber CATV
Optical fiber test equipment
Optical fiber data communications
LAN (Local Area Network)

Features

High repeatability & credibility
Competitive pricing
Fast delivery time
Low insertion loss

Specifications

Type	Standard, Master
Style	LC, SC, ST, FC, MU, DIN, D4, MPO, SC/APC, FC/APC, LC/APC, MU/APC, Duplex MTRJ/Female, MTRJ/Male
Fiber Type	9/125 SMF-28 or equivalent (Singlemode) OS1 50/125, 62.5/125 (Multimode) OM2 & OM1 50/125, 10G (Multimode) OM3
Cable Type	Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm, Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH
Polishing Manner	UPC, SPC, APC (8° & 6°)
Insertion Loss	≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (For Singlemode)	UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750
Repeatability	±0.1dB
Operating Temperature	-40°C to 85°C
Geometry Requirement (For Singlemode)	Ferrule Endface Radius: 7mm ≤ R ≤ 12mm (For APC), 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master), Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1

Company Introduction

New Light Optics Technology Limited is a high-tech company specializing in optical communication products R&D, manufacturing, sales, and service. Established in 2011, our factory has over 6 years of OEM and manufacturing experience serving customers worldwide.

Our product line includes: Patch Cord/Pigtails, Patch Cord Cables, MTP/MPO Patch Cord, Fiber Optical Adapters, Attenuators, Fiber Optical Connectors, and more. Our products are widely used in telecommunications, fiber optical CATV, digital internet fiber transmission, data base stations, and related applications.

We feature advanced technology, professional R&D teams, sophisticated production equipment, and skilled engineers. With a high-quality control system, our products are exported to over 60 countries including USA, Europe, Brazil, Middle East, and Asia, earning high reputation and positive customer feedback.

Payment Terms & Delivery

Payment Methods: T/T, L/C, Paypal, Western Union, Moneygram
Payment Terms: 30% deposit in advance, 70% balance paid before delivery
Packaging: International standard package (OPP bag + Carton Box)
Delivery Time: 2-7 working days (depending on quantity) after payment received
Warranty: 3 years after delivery
Shipping Methods: By air (DHL, TNT, UPS, Fedex), By sea (upon request)
