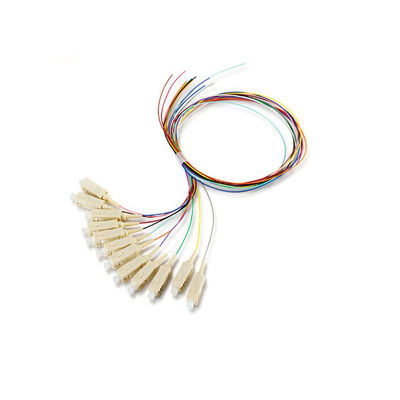

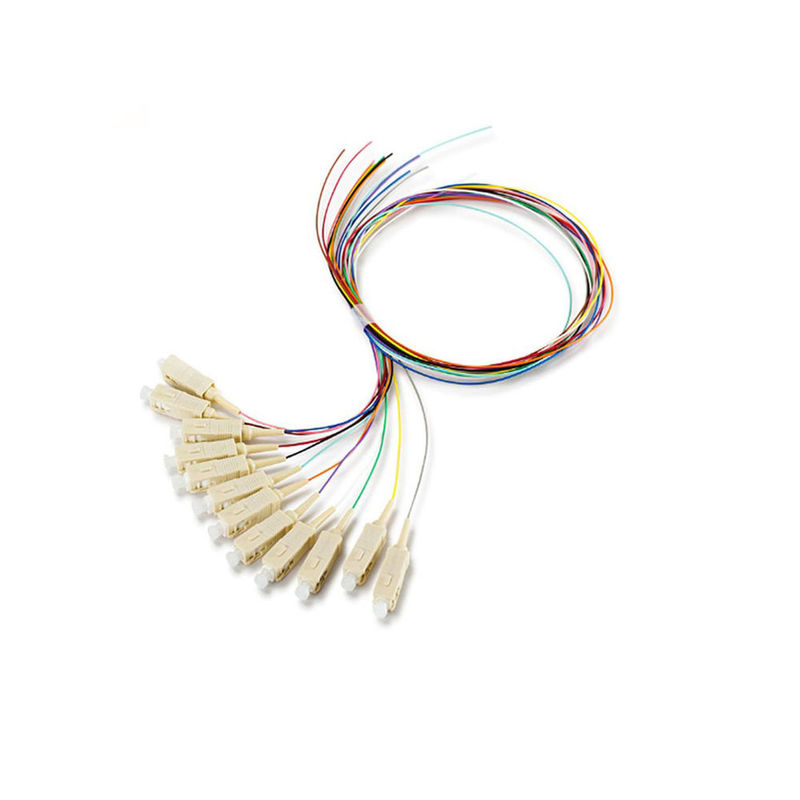

Multi-Mode Fiber Optic Pigtail with SC/PC Connector and 0.9mm Diameter for FTTH Box Applications

Brand Name:	New Light
Model Number:	SC/ PC
MOQ:	1
Price:	0.2~10
Packaging Details:	OPP bag + carton box
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE , ISO , RoHS

Products Name:

SC / PC 0.9mm Optic Fiber Pigtail Multi- Mode Optic Fiber Pigtail For FTTH Box

Connector Type:

SC / PC

Mode Type:

Multi Mode

Cable Color:

According To Your Request

Cable Diameter:

0.9mm

Cable Length:

Can Be Customized According To Your Request

Insertion Loss:

≤ 0.3 DB

Return Loss:

≥ 35dB

Delivery Time:

2-7 Working Days

Payment Term:

30% Deposit In Advance , 70% Balance Paid Before Delivery

Supply Ability:

1000000

Highlight:

pigtail fiber optic cable

single mode fiber pigtails

Product Description

Multi-Mode Pigtail Fiber Optic Cable SC/PC 0.9mm For FTTH Box

Product Overview

SC/PC 0.9mm multi-mode optic fiber pigtail designed specifically for FTTH box applications, delivering reliable performance in fiber optic networks.

Key Features

High precision ceramic ferrule with excellent concentricity
Advanced termination facilities ensuring optimal geometry characteristics
100% inspected for optical characteristics and fiber end face finish
Low insertion loss and return loss with clean, scratch-free end faces
Multiple connector options: SC/ST/FC/LC/MU/E2000/LX.5/DIN/D4/SMA/MTRJ
900um tight buffered cable standard, jacketed cables available
Various standard colors for cable jacket and connector boots
Fire rating options: OFNR, LSZH, OFNP
Excellent performance endurance under changing environmental conditions

Applications

CATV Systems
Active Device Termination
Telecommunication Networks
Metro Networks
Local Area Networks (LANs)
Data Processing Networks
Test Equipment
Premise Installations
Wide Area Networks (WANs)

Performance Features

Low insertion loss and back reflection loss
Excellent exchangeability
Superior durability
High temperature stability
Compliant with Telcordia GR-326-CORE standards

Technical Specifications

Parameter	Singlemode	Multimode
Insertion Loss	Typical ≤0.2dB, Maximum ≤0.3dB	≤0.25dB
Return Loss	≥50dB (PC) ≥65dB (APC)	≥30dB
Repeatability	≤0.1	-
Durability	≤0.2 typical change, 1000 matings	-
Interchangeability	≤0.2	-
Tensile Strength	10kg	10kg
Operating Temperature	-40°C to +85°C	-40°C to +85°C

Ordering Options

Connector Color	Boot Size	Boot Color	Fiber Type	Cable Number	Application	Length
Beige	2.0mm	Beige	9/125μm (SM)	Simplex	PC	Customized
Blue	3.0mm	Blue	62.5/125 (MM)	Duplex	APC	-
Green	0.9mm	Black	50/125 (MM)	Fan-out (4f/6f/8f)	-	-
-	-	Green	10GIB 50/125 (MM)	Fan-out (24f/48f/72f/144f)	-	-
-	-	Gray	-	-	-	-
-	-	White	-	-	-	-

Availability

Simplex or Duplex configurations available
Fan-out options available
Pigtail configurations available
Various boot (cable) sizes available

Company Introduction

New Light Optics Technology Limited is a high-tech company specializing in the research, development, manufacturing, sales, and service of optical communication products. Established in 2011, our factory has accumulated 6 years of OEM and manufacturing experience serving customers worldwide.

Product Portfolio

Patch Cord/Pigtails
Patch Cord Cables
MTP/MPO Patch Cord
Fiber Optical Adapters
Attenuators
Fiber Optical Connectors

Our products are widely used in telecommunications, fiber optical CATV, digital internet fiber transmission, data base stations, and related applications.

Quality Assurance

We maintain high-tech technology, professional R&D teams, advanced production equipment, and sophisticated engineering skills. Our comprehensive quality control system ensures products meet the highest standards, serving customers in over 60 countries including USA, Europe, Brazil, Middle East, and Asia with excellent reputation and customer feedback.

Contact: WHATSAPP 008613534063703

Payment Terms & Delivery

Payment Methods: T/T, L/C, Paypal, Western Union, Moneygram
Payment Terms: 30% deposit in advance, 70% balance paid before delivery
Packaging: International standard package (OPP bag + Carton Box)
Delivery Time: 2-7 working days (depending on quantity) after payment received
Warranty: 3 years after delivery
Shipping Methods: By air (DHL, TNT, UPS, Fedex), By sea (according to requirements)
