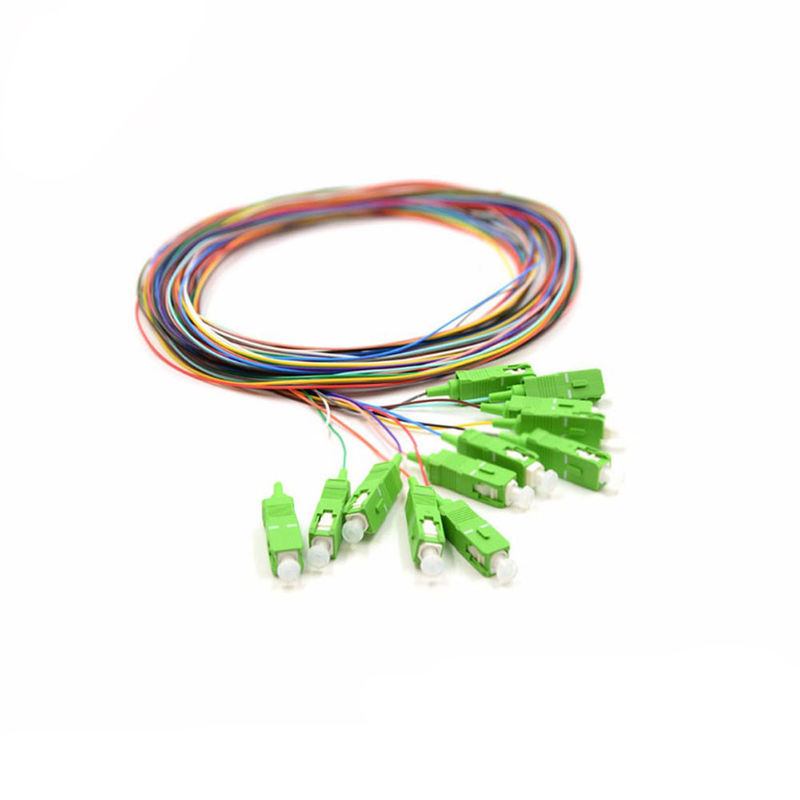

SC/APC Fiber Optic Pigtail with 0.9mm Diameter and 12 Colors Optic Fiber Jumper Cable

Brand Name:	New Light
Model Number:	SC/ PC
MOQ:	1
Price:	0.2~10
Packaging Details:	OPP bag + carton box
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE , ISO , RoHS

Products Name:

SC / APC Optic Fiber Pigtail 12 Color 0.9 Mm 2 M Optic Fiber Jumping Cable

Connector Type:

SC( Can Be ST , FC , LC , MPO , MTRJ , MU )

Mode Type:

Single Mode

Cable Color:

According To Your Request

Cable Diameter:

0.9mm

Cable Length:

2 M (can Be Customized )

Insertion Loss:

≤ 0.3 DB

Return Loss:

≥ 50dB

Delivery Time:

2-7 Working Days

Payment Term:

30% Deposit In Advance , 70% Balance Paid Before Delivery

Supply Ability:

1000000

Highlight:

pigtail fiber optic cable

fibre optic tails

Product Description

SC/APC Fiber Optic Pigtail - 2M Fiber Jumper Cables

12-color fiber optic pigtail with 0.9mm diameter, available in multiple connector types and cable specifications for professional telecommunications applications.

Product Configuration

12 fibers per unit with color-coded identification
Compliant with Telcordia GR-326 Core and ROHS requirements
Available connector types: SC, FC, LC, ST, MU, E2000
Cable options: G652D, G657A1, G657A2, G655, OM1, OM2, OM3, OM4
Cable diameters: 0.25mm, 0.9mm
12 distinct colors for easy identification and splicing
Construction types: Tight buffer, semi-tight buffer, loose buffer

Application

Designed for splice applications when terminating outside plant cable systems. Each pigtail consists of a connector and specified cable length.

Technical Specifications

Fiber Count	12	Fiber Mode	9/125μm
Connector Type	SC/UPC	Fiber Mode	SM
Breakout Length	0.5m	Jacket Material	PVC/LSZH
Insertion Loss	≤ 0.3dB	Interchangeability	≤0.2dB
Return Loss	≥ 50dB	Vibration	≤0.2dB
Operating Temperature	-40~75°C	Storage Temperature	-45~85°C

WHATSAPP: 008613534063703

Geometric Specifications

Parameter	UPC End-face Specification
Connector	SC
Apex Offset	≤50 μm
Fiber Spherical Height	±50 nm
Angular Offset	8°± 0.2°

Manufacturer Profile

New Light Optics Technology Limited is a high-tech company specializing in optical communication products R&D, manufacturing, sales, and service. Established in 2011 with over 6 years of OEM and manufacturing experience serving customers worldwide.

Product Portfolio

Our comprehensive product line includes: Patch Cords/Pigtails, Patch Cord Cables, MTP/MPO Patch Cords, Fiber Optical Adapters, Attenuators, Fiber Optical Connectors, and more. Applications span telecommunications, fiber optical CATV, digital internet fiber transmission, and data base stations.

With advanced technology, professional R&D teams, sophisticated engineering skills, and rigorous quality control, our products are trusted by customers in over 60 countries including USA, Europe, Brazil, Middle East, and Asia.

Ordering & Delivery Information

Payment Methods: T/T, L/C, Paypal, Western Union, Moneygram
Payment Terms: 30% deposit in advance, 70% balance paid before delivery
Packaging: International standard (OPP bag + Carton Box)
Delivery Time: 2-7 working days (quantity dependent) after payment receipt
Warranty: 3 years after delivery
Shipping Methods: Air (DHL, TNT, UPS, Fedex) or Sea (as required)
