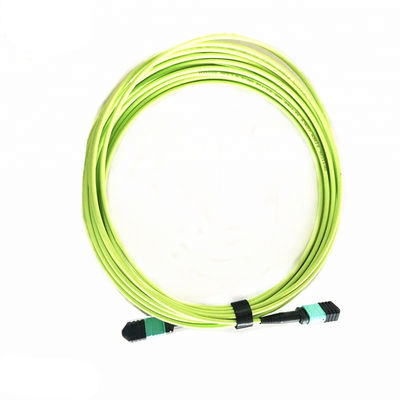

OM5 12 Core MPO Fiber Optic Patch Cord with Female Connector for High Density Applications

Brand Name:	New Light
Model Number:	MPO MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + Carton box
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE , ISO , RoHS

Material:

PVC / LSZH

Connector Type:

MPO / MTP Male And Female

Mode:

Single / Multi Mode

Delivery Time:

2-7 Days After Receive Payment

Production:

500 Pcs Per Day

Length:

As Your Requirement

Shipping Term:

By Sea Or By Air

Fiber Cord:

8 Core / 12 Core / 32 Core

Products Name:

OM5 - 600 Cable MTP MPO Cable 12 Fibers MPO Male / Female Connector Patch Cord

Supply Ability:

500 pcs per day

Highlight:

mpo fiber cable

mpo to mpo cable

Product Description

OM5 - 600 MPO Fiber Optic Patch Cord Multi Mode With Female Connector

Product Overview

MTP/MPO Fiber Optic Patch Cable consists of multi-core fiber optic cable and high-density MPO/MTP connectors available in 4/8/12/24 core configurations. Connectors are available in female or male versions with guide pins, supporting both single mode and multimode fiber types.

Key Features

Customized solutions with high adaptability
Multiple fiber core options and cable structures for different installation requirements
Available in PVC, LSZH, OFNR, and OFNP cable jackets
Improved and simplified cabling with reduced spacing requirements
100% tested with comprehensive test reports included
Testing includes Interferometer, Insertion Loss, Return Loss, and Visual Final Inspection
All measured values are electronically archived

Applications

Data Center infrastructure
Fiber to the home (FTTH)
High density fiber optic cable management
40Gb/s or 100Gb/s high-speed applications

Fiber Cable Performance Specifications

Parameter	Specifications
Fiber Type	OS2, OM1, OM2, OM3, OM4
Fiber Count	12, 24, 48, 72, 96, 144 cores
Fiber Attenuation (OS2)	≤0.38 Max ≤0.34Typ(1310nm) ≤0.25 Max ≤0.19Typ(1550nm)
Fiber Attenuation (OM1)	≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤1.2Typ(1300nm)
Fiber Attenuation (OM2)	≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
Fiber Attenuation (OM3)	≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
Fiber Attenuation (OM4)	≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
Min. Bandwidth: Overfilled Launch [Mhz-km]	OM1≥200(850nm) ≥500(1300nm) OM2≥500(850nm) ≥500(1300nm) OM3≥1500(850nm) ≥500(1300nm) OM4≥3500(850nm) ≥500(1300nm)
Min. Bandwidth: Laser Effective Modal Bandwidth [Mhz-km]	OM3 ≥2000(850nm) OM4 ≥4700(850nm)
Outer Diameter	12fiber: 3.0 or 5.5mm; 24fiber: 3.0 or 5.5mm
Outer Jacket Color	OS2(Yellow), OM2(Orange), OM3(Aqua), OM4(Purple or Aqua)
Outer Jacket Material	LSZH, OFNP, OFNR
Tensile Strength	>500N
Operating Temperature	-40°C to +85°C

Packing & Labeling

All products are packed according to standard export requirements to ensure customer satisfaction.

Label printing: Customer logo or brand options available
Inner packing: 5 pieces per carton
Outer packing: Cartons protected with sacks against dust and moisture
Transportation: Available by air, sea, DHL, FedEx, TNT, UPS

Frequently Asked Questions

When can I get the price?

We typically provide quotes within 24 hours of receiving your inquiry. For urgent requests, please contact us directly.

Can you accept small orders?

Yes, we support small orders and new projects. We understand that business grows from small beginnings.

Can I order samples before placing a bulk order?

Yes, sample testing is a standard part of our process before bulk orders.

What is your term of delivery?

We accept EXW, FOB, CIF, CFR, and other delivery terms for your convenience.

What if there is a quality problem when we receive the goods?

If quality issues arise, please provide photos for our reference. Our QC department will investigate and provide solutions while implementing improvements for future orders.

WhatsApp: +8613534063703
