Product Details:
|
| Material: | PVC / LSZH | Connector Type: | MPO / MTP Male And Female |
|---|---|---|---|
| Mode: | Single / Multi Mode | Delivery Time: | 2-7 Days After Receive Payment |
| Production: | 500 Pcs Per Day | Length: | 3.3 Ft (as Your Requirement ) |
| Shipping Term: | By Sea Or By Air | Fiber Cord: | 8 Core / 12 Core / 32 Core |
| Products Name: | 3.3 Ft MPO MTP Cable To 8 X LC 40GbE MPO Fan - Out Patch Cord 50 / 125 Multimode | Core Type: | 8 Core |
| High Light: | mpo fiber cable,mpo to mpo cable |
||

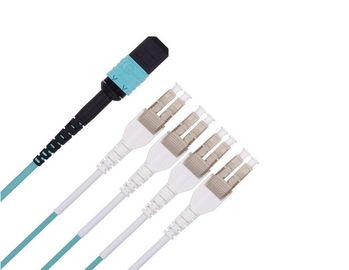

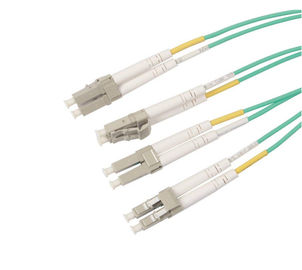

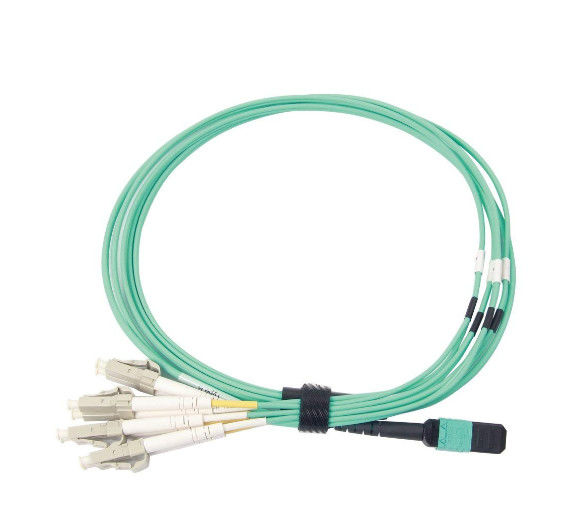

3.3 ft MPO MTP Cable to 8 x LC 40GbE MPO Fan - out Patch Cord 50 / 125 Multimode
MPO/MTP trunk multicore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost, they are used to interconnect cassettes, plane or fan outs.
It offered in fiber types in standard 8, 12, 24 or 48 cores versions using a compact and rugged microcables structure.The compact cable optimize cableway use and improve airflow.
These MPO/MTP cable are built with highest quality components.Low loss elite versions are offered, featuring low insertion loss for demanding high speed networks where power budgets are critical.
Specifications:
MPO (female) to 8xLC
MPO Female, without PIN
MMF(50/125um), OM4
Cable Length: 1-Meter(3.3ft)
Insertion loss : MPO <0.7 dB; LC <0.3dB
Return loss : MPO >35dB; LC>30dB
Insert- pull test : 500times <0.5 dB
Operation temperature : -40℃～+80℃
| Model | SM | MM | |
| Connector A:MPO/MTP | |||
| Connector Fiber Count | 8,12,24,48 Core | ||
| Polish | PC,APC | PC | |
| Insertion Loss | Standard | ≤0.70dB | ≤0.50dB |
| Elite Low Loss | ≤0.35dB | ≤0.30dB | |
| Return Loss | PC≥50dB,APC≥60dB | ≥30dB | |
| Durability(500 Matings) | ≤0.2dB | ||
| Test Wavelength | 1310/1550nm | 850/1300nm | |
| Connector B:LC,LC Uniboot,SC,FC,ST | |||
| Polish | PC,APC | PC | |
| Insertion Loss | ≤0.2dB | ≤0.2dB | |
| Return Loss | PC≥50dB,APC≥60dB | ≥35dB | |
| Durability(500 Matings) | ≤0.2dB | ||
| Test Wavelength | 1310/1550nm | 850/1300nm |
|
