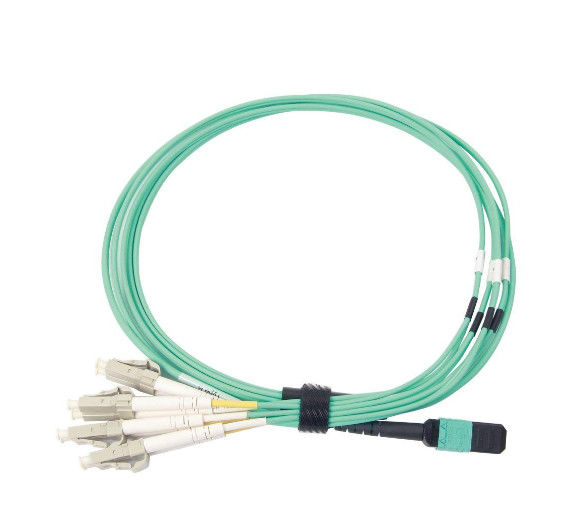

3.3 ft MPO MTP Cable to 8xLC Fan-out Patch Cord 50/125 Multimode Fiber Optic Patch Cord

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

3.3 ft MPO MTP Cable to 8xLC Fan-out Patch Cord 50/125 Multimode Fiber Optic Patch Cord

Brand Name:	New Light
Model Number:	MPO MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + Carton box
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE , ISO , RoHS

Material:

PVC / LSZH

Connector Type:

MPO / MTP Male And Female

Mode:

Single / Multi Mode

Delivery Time:

2-7 Days After Receive Payment

Production:

500 Pcs Per Day

Length:

3.3 Ft (as Your Requirement )

Shipping Term:

By Sea Or By Air

Fiber Cord:

8 Core / 12 Core / 32 Core

Products Name:

3.3 Ft MPO MTP Cable To 8 X LC 40GbE MPO Fan - Out Patch Cord 50 / 125 Multimode

Core Type:

8 Core

Supply Ability:

500 pcs per day

Highlight:

mpo fiber cable

mpo to mpo cable

Product Description

3.3 Ft MPO MTP Cable 50/125 Multimode Fan-Out Fiber Optic Patch Cord

High-Density Data Center Connectivity

This 3.3 ft MPO/MTP to 8xLC fan-out patch cord provides reliable 40GbE connectivity for high-density backbone cabling in data centers and enterprise networks. The compact multicore cable assembly enables rapid deployment and reconfiguration while optimizing cable management and improving airflow.

Product Specifications

Configuration: MPO (Female) to 8xLC

MPO Type: Female, without PIN

Fiber Type: MMF 50/125μm, OM4

Cable Length: 1 Meter (3.3 ft)

Insertion Loss: MPO <0.7 dB; LC <0.3 dB

Return Loss: MPO >35 dB; LC >30 dB

Insert-Pull Test: 500 times <0.5 dB

Operating Temperature: -40℃ to +80℃

Key Features

MPO to 8xLC Fan-out Cable Configuration

Multimode Fiber 50/125μm OM4

Female Connector without PIN

Low Insertion Loss: 35 dB

Durable 500-cycle Insert-Pull Test Performance

Technical Specifications Table

Model	SM	MM
Connector A: MPO/MTP
Connector Fiber Count	8, 12, 24, 48 Core
Polish	PC, APC	PC
Insertion Loss	Standard ≤0.70dB Elite Low Loss ≤0.35dB	Standard ≤0.50dB Elite Low Loss ≤0.30dB
Return Loss	PC≥50 dB, APC≥60dB	≥30dB
Durability (500 Matings)	≤0.2dB
Test Wavelength	1310/1550nm	850/1300nm
Connector B: LC, LC Uniboot, SC, FC, ST
Polish	PC, APC	PC
Insertion Loss	≤0.2dB	≤0.2dB
Return Loss	PC≥50dB, APC≥60dB	≥35dB
Durability (500 Matings)	≤0.2dB
Test Wavelength	1310/1550nm	850/1300nm

Frequently Asked Questions

When can I get the price?

We usually quote within 24 hours after we get your inquiry. For urgent pricing requests, please call us or indicate priority in your email.

Can you accept small orders?

Yes, we support small orders and new customer projects. We understand that business grows from small beginnings.

Can I order samples before placing a bulk order?

Yes, samples are available for testing before bulk orders. This is our standard process for all clients.

What are your delivery terms?

We accept EXW, FOB, CIF, CFR and other terms. Choose the option most convenient and cost-effective for your needs.

What if there are quality issues with the goods?

If you encounter quality problems, please provide photos for our reference. Our QC department will investigate and provide solutions while implementing improvements for future orders.

Contact Us: WhatsApp +8613534063703
