Optical Fiber Patch Cord

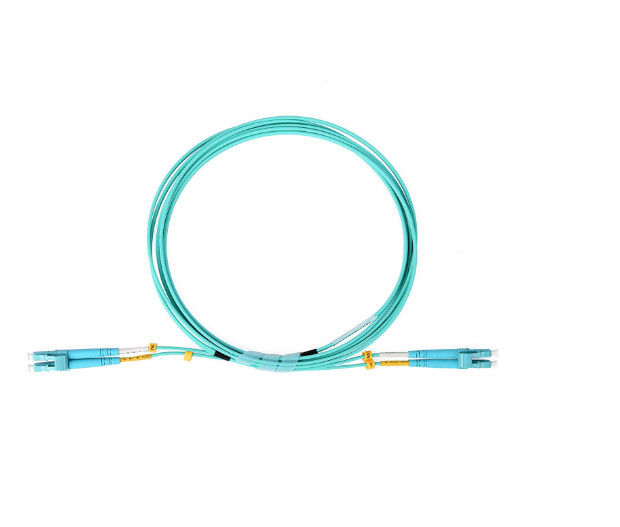

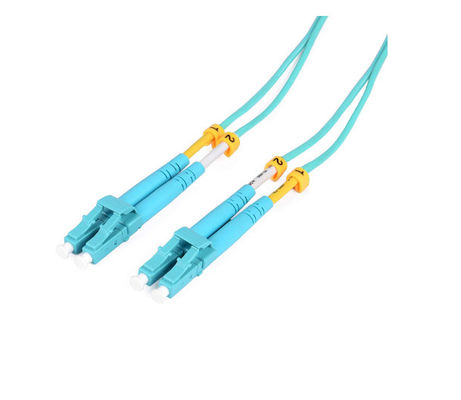

5M Length 2.0mm Diameter Bend Insensitive LC Duplex Optical Fiber Patch Cord

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

5M Length 2.0mm Diameter Bend Insensitive LC Duplex Optical Fiber Patch Cord

Brand Name:	New Light
Model Number:	LC-LC
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector Type:

LC/PC - LC /PC

Cable Type:

Duplex

Cable Diameter:

2.0 Mm

Jacket Material:

Mode Type:

Multi Mode 50/125

Delibery Time:

2-7 Working Days (after Receive Payment )

Warranty:

3 Year After Delivery

Cable Color:

Wave Length:

850/1300

Length:

5meters ( Can Be Customized )

Supply Ability:

1000000

Highlight:

duplex fiber patch cord

sc sc fiber patch cord

Product Description

5M 2.0mm Duplex LC Aqua Cable Multi Mode 50/125 Optical Fiber Patch Cord

Product Overview

These OM3-rated fiber optic patch cords are engineered for high-performance network applications. Precision factory testing ensures optimal insertion and return loss performance in compliance with TIA-568-C.3 specifications. Featuring LC connectors with protective yoke, strain relief boots, and zirconia ceramic ferrules for reliable, low-loss connectivity.

Bend Insensitive Design

Bend insensitive multimode fiber (BIMMF) technology allows for a 7.5mm bending radius, providing 4X greater flexibility compared to standard 50 micron fiber cables. This design ensures reliable performance in tight spaces and long cable runs with multiple bends.

Applications

OM3 classification supports Gigabit Ethernet 1000Base-SX, 10GBase-SR/LRM, and Fibre Channel 100/200/400/1200-MX. Backwards compatible with FDDI and Fast Ethernet 10/100BASE SX or FX.

Technical Specifications

Connectors: LC to LC
Core: 50 µm
Cladding: 125 µm
Jacket: LSZH
OD: 2.0mm
Classification: OM3
Wavelengths: 850 and 1300nm
Type: Bend-Insensitive Multimode (BIMMF)
Ferrule Material: Ceramic
Polish: PC
Compliance: TIA 568-C.3 / 604-10 / 492AAAC, UL 910, CE, RoHS

Performance Specifications

Parameter	Singlemode (OS1, OS2 9/125)	Multimode (OM1 50/125, OM2 62.5/125, OM3 50/125, OM4 50/125)
Polishing	PC \| UPC \| APC \| PC	PC
Insertion Loss	≤ 0.2dB (Typical ≤0.1dB)	≤ 0.2dB
Return Loss	≥ -45dB \| ≥ -50dB \| ≥ -60 dB \| N/A	N/A
Diameter	Φ0.9, Φ2.0, Φ3.0mm
Vibration	≤ 0.2dB (5~50Hz, 1.5mm Amplitude)
Thermal Cycle	≤ 0.2dB (-40℃ ~ +80℃, 21 Cycles)

Connector Types

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we recommend larger quantities for better pricing as single-piece orders incur higher costs.

What's the price?

Pricing is quantity-dependent. We provide competitive pricing for bulk orders upon request with detailed specifications.

Can you quote FOB price?

We primarily ship via air couriers (DHL, TNT, UPS, FEDEX). For large volume orders, we can provide sea freight options. EXW or CFR pricing is typically more suitable.

How is your quality?

We adhere to IEC and European standards with near dust-free workshops, imported production equipment, and comprehensive quality control. All products undergo 100% testing before delivery.

What's your lead time?

With three factories in China, we can process 5,000 patch cords within 2-3 working days. Regular products are typically in stock, and we accommodate urgent orders.

What's your warranty?

Patch cords include a 2-year warranty covering non-artificial damage. Artificial damage repairs are free, but freight costs are the customer's responsibility.

What's your packing?

We use international export packaging and offer custom logo printing services.

Can you do OEM/ODM?

Yes, we support OEM/ODM services and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails (customer pays freight). Higher-value products require sample charges refundable with subsequent orders.

Ordering Process

Contact us with product specifications, quantity, and delivery address
Receive our competitive quotation with lead time
Confirm acceptance and receive Proforma Invoice
We begin production upon payment receipt
Confirm shipping details and receive tracking information
We prioritize long-term partnership satisfaction

Payment Terms

T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.

Packaging Reference
