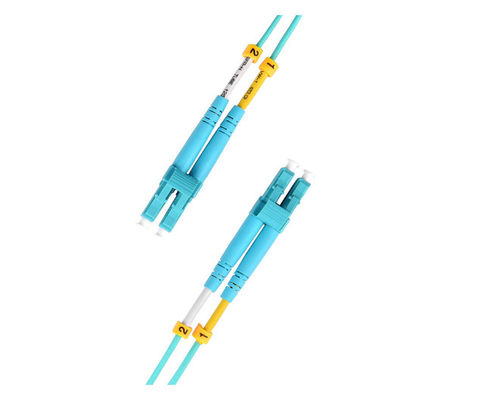

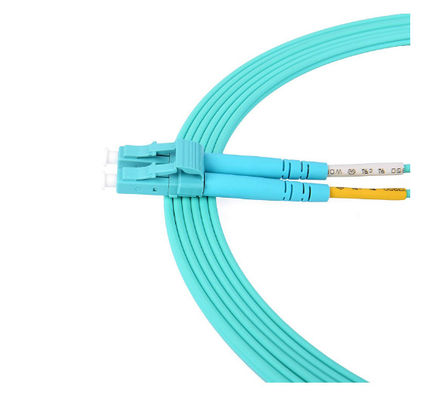

Multi Mode OM3 Duplex Optical Fiber Patch Cord with LSZH Material Jacket and 3.0mm Diameter

Brand Name:	New Light
Model Number:	LC-LC
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector Type:

LC PC

Cable Type:

Duplex 8 Shape Cable

Cable Diameter:

3.0 Mm

Jacket Material:

LSZH / PVC

Mode Type:

Multi Mode 50/125

Wave Length:

850 / 1300nm

Cable Color:

Aqua Color

Length:

Can Be Any Lenght As Your Need

Application:

FTTH FTTB FTTX Network,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Supply Ability:

1000000

Highlight:

duplex fiber patch cord

sc sc fiber patch cord

Product Description

Multi Mode Duplex Optical Fiber Patch Cord OM3 LSZH Material Jacket 3.0mm diameter

Product Specifications

Insertion loss: ≤0.3 dB
Return loss: ≥50 dB
Operating wavelength: 850, 1300 nm
Exchangeability: ≤0.2 dB
Vibration: ≤0.2 dB
Operating temperature: -40°C to 75°C
Polish: PC

Product Configuration

Fiber Core: 1.25mm ceramic ferrule LC connectors; 2a=50μm
Refractive Trench: Unique low refractive index glass layer reduces light dispersion during bending, ensuring stable and fast network transmission
Fiber Cladding: 2b=125μm
Outer Jacket: LSZH coating - lightweight, flexible, flame retardant, UV resistant, and immune to electrical interference

Key Features

LSZH Jacket with strong pull resistance, durable for indoor use
Slim-profile strain relief boots with 7.5mm minimum bend diameter - 4x more flexible than standard 50 micron fiber cables
Adjustable yoke un-snaps for easy plug-and-play installation
Removable dust caps prevent dirt from reaching the fiber

Quality Assurance

High-standard grinding equipment ensures precise ceramic ferrule grinding with no scratches or defects. Our 50μm diameter optical fiber cores are manufactured with the highest quality glass and pass rigorous industry specification tests for superior quality, strong stability, and low insertion loss.

Technical Data Sheet

Mode	Singlemode (OS1, OS2 9/125)	Multimode (OM1 50/125, OM2 62.5/125, OM3 50/125, OM4 50/125)
Polishing	PC \| UPC \| APC	PC
Insertion Loss	≤ 0.2dB (Typical ≤0.1dB)	≤ 0.2dB
Return Loss	≥ -45dB \| ≥ -50dB \| ≥ -60 dB	N/A
Diameter	Φ0.9, Φ2.0, Φ3.0mm
Vibration	≤ 0.2dB (5~50Hz, 1.5mm Amplitude)
Thermal Cycle	≤ 0.2dB (-40℃ ~ +80℃, 21 Cycles)

How to Order

Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode type: single mode (UPC and APC) / multi mode (PC)
Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
Coating material: PVC / LSZH
Fiber count: simplex / duplex / 4 core / 6 core / 8 core / 12 core / 24 core
Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch cord length: customized to your requirements

Connector Types

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we don't recommend ordering single pieces as the cost and price will be higher than your budget.

Q: What's the price?

A: Pricing depends on quantity. We'll provide our best price after receiving your quantity requirements. Large quantities receive very competitive pricing.

Q: Can you quote FOB price?

A: Yes, but due to small size and weight, most deliveries are by air (DHL, TNT, UPS, FEDEX, etc.). We recommend providing detailed specifications and quantity for freight-included pricing. EXW or CFR pricing is preferred.

Q: How is your quality?

A: Our production follows IEC and European standards in near dust-free workshops using imported equipment. All products are 100% tested before delivery.

Q: What's your lead time?

A: We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are in stock and we can handle urgent orders.

Q: What's your warranty?

A: Patch cords have a 2-year warranty from delivery for non-artificial damage. For artificial damage, we repair for free but freight is paid by customer.

Q: What's your packing?

A: We use international export packaging and can print your logo on the packaging.

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM and can sign confidentiality agreements.

Q: Can I have a sample?

A: For adaptors, attenuators, patch cords, and pigtails, we provide free samples with freight paid by customer. For high-value products, sample charges apply but are refunded with orders.

Q: How can I order?

A: 1. Send inquiry with product details and quantity. 2. We provide pricing and lead time. 3. Confirm with Proforma Invoice. 4. Production begins after payment. 5. We confirm shipping details and provide tracking. 6. We prioritize long-term cooperation.

Q: What are your payment terms?

A: T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.

Packaging Reference
