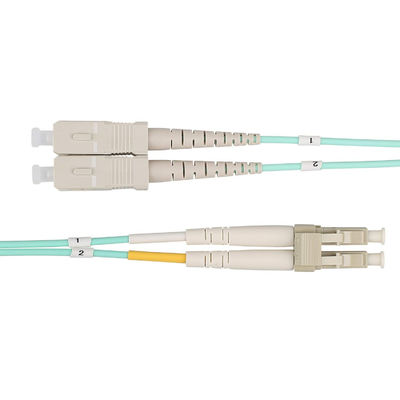

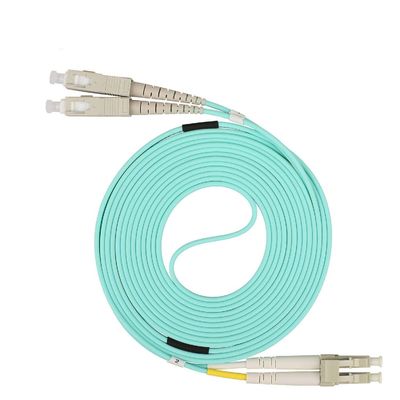

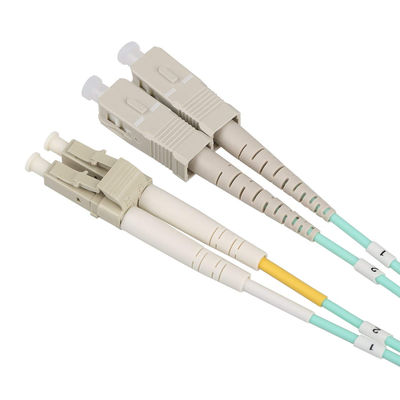

LC-SC Multimode Fiber Patch Cable 10 Meter LSZH Jacket 50/125um for High-Speed Data Transfer

Brand Name:	New Light
Model Number:	LC-SC
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector Type:

LC/PC - SC /PC

Cable Type:

Duplex

Cable Diameter:

2.0 / 3.0 Mm

Jacket Material:

Mode Type:

Multi Mode

Delibery Time:

2-7 Working Days (after Receive Payment )

Warranty:

3 Year After Delivery

Payment Term:

T/T ,L/C , Paypal ,westen Union , Money Gram

Wave Length:

850 / 1300

Products Name:

LC - SC Fiber Patch Cables Multi Mode 10 Meter LSZH Jacket 50 / 125 Um

Supply Ability:

1000000

Highlight:

duplex fiber patch cord

single mode fiber optic cable

Product Description

LC-SC Fiber Patch Cables Multi Mode 10 Meter LSZH Jacket 50/125μm

High-performance LC-SC multimode duplex fiber patch cable designed for reliable data transmission in demanding environments.

Product Overview

LC-SC multimode duplex fiber patch cable 50/125μm, 10-Meter (33 feet)
Wavelength: 850nm, OM3 LOMMF rated with Bandwidth 40Gbs
Operating temperature: -20℃ to +70℃
High Stability & Reliability
Low-Smoke, Zero Halogen (LSZH) Armoured Jacket
Performance guaranteed with Lifelong warranty

Technical Specifications

Classification	OM3
Wavelengths	850 and 1300nm
Aqua Jacket	LSZH
Cable Jacket	3.00mm
Operating Temperature	-4°F to 158°F (-20°C to +70°C)
Multimode	50/125μm
Standards Compliance	OM3 fiber conforms to ITU-651, TIA/EIA 492AAAA

Applications

Network devices
Gigabit Ethernet
Video and multimedia systems
Remise installations
Fiber optics patch panels
Fiber optic transceivers and fiber optic networks
Industrial and military applications

Performance Data

Mode	Singlemode (OS1, OS2 9/125)	Multimode (OM1 50/125, OM2 62.5/125, OM3 50/125, OM4 50/125)
Polishing	PC \| UPC \| APC \| PC
Insertion Loss	≤ 0.2dB (Typical ≤0.1dB)	≤ 0.2dB
Return Loss	≥ -45dB	≥ -50dB \| ≥ -60 dB \| N/A
Diameter	Φ0.9, Φ2.0, Φ3.0mm
Vibration	≤ 0.2dB (5~50Hz, 1.5mm Amplitude)
Thermal Cycle	≤ 0.2dB (-40℃ ~ +80℃, 21 Cycles)

Connector Specifications

Polishing	PC	APC
Radius of Curvature	5 ~ 30 mm	5 ~ 12 mm
Apex Offset	≤ 70 μm
Fiber Spherical Height	-125 to +100 μm
Angular Error	N/A	8° ± 0.5°

Connector Type

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we don't recommend ordering single units as the cost will be higher. Larger quantities receive more competitive pricing.

What's the price?

Pricing depends on quantity. We provide our best pricing based on your order volume. Large quantities receive very competitive prices.

Can you quote FOB price?

Yes, but due to the small size and weight, most shipments are delivered by air (DHL, TNT, UPS, FEDEX, etc.). We recommend providing detailed specifications and quantity for us to calculate freight with product pricing. EXW or CFR pricing may be more suitable.

How is your quality?

Our production follows IEC and European standards in nearly dust-free workshops. We use imported production and quality control equipment. All products are 100% tested before delivery.

What's your lead time?

We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are typically in stock, and we can accommodate urgent orders.

What's your warranty?

Patch cords come with a 2-year warranty from delivery date for non-artificial damage. For artificial damage, we repair free of charge but shipping costs are the customer's responsibility.

What's your packing?

We use international export packaging and can print your logo on the packaging.

Can you do OEM/ODM?

Yes, we are a manufacturer and all products accept OEM/ODM. We can sign confidentiality agreements.

Can I have a sample?

For adaptors, attenuators, patch cords, and pigtails, we can provide free samples with shipping paid by the customer. For high-value products, sample charges and shipping are required upfront but will be refunded with orders.

How can I order?

Send us your product requirements, specifications, and quantity. We'll provide pricing and lead time. After acceptance, we'll issue a proforma invoice and begin production upon payment confirmation.

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.

Packaging Reference
