LC-LC DX Fiber Optic Adapter with Plastic Material for Single Mode and Low Insertion Loss Applications

Brand Name:	New Light
Model Number:	FC
MOQ:	100
Price:	0.08~1.5
Packaging Details:	standard export package
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Material:

Plastic

Connector Type:

Mode Type:

Single Mode

Repeatability:

>1000 Times

Insertion Loss:

Less Than 0.3 DB

Return Loss:

PC ≥ 45dB UPC ≥55dB APC ≥65dB

Delivery Time:

2-10 Working Days After Receive Payment

Packing:

Standard Export Package

Payment Term:

T/T , L/C , PAYPAL , WESTEN UNION , MONEY GRAM

Certificate:

CE , ISO , RoHS

Supply Ability:

1000000

Highlight:

fiber optic cable adapter

lc fiber optic adapter

Product Description

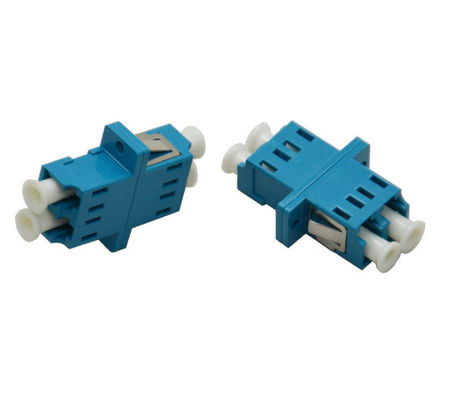

LC-LC DX Fiber Optic Adapter

Plastic material fiber optic connector adapters with window and ears designed for FTTH box applications.

Product Features

Precise fiber optic cable-to-cable connection for 9/125 patch cords
Connects two duplex LC/LC patch cords together
Organizes and manages fiber cabling in patch panels
Engineering plastics with high temperature resistance and oxidation resistance
Available in simplex, duplex, four cores, 8 cores, and 16 cores configurations

Applications

Optical fiber distribution frame (ODF), fiber optic communication networks, fiber optic broadband access, fiber optic CATV, fiber optic meters, and fiber optic LAN.

Color Options

Single mode: Blue/Green (customizable)

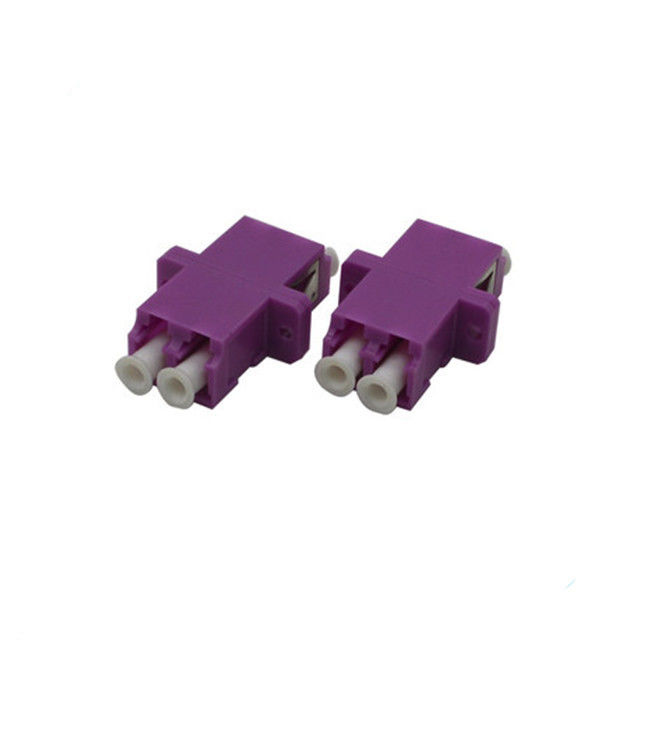

Multi mode: Beige, Aqua, Purple, Rose, etc. (customizable)

Technical Specifications

Insertion loss (typical)	≤0.3dB
Interchangeability	≤0.2dB
Vibration	≤0.2dB
Repeatability	≤0.2dB
Durability	>1000 times
Operating temperature	-40°C to 75°C
Storage temperature	-45°C to 85°C

FC D-Type Fiber Optical Adapter

Product Parameters

Product Name	SM Big High Telecom / APC D-Hole Adaptor Small D Type FC Fiber Optical Adapter FC/UPC D-Type
Model Number	FC D-type Adapter
Insertion Loss	≤0.3dB
Durability	>1000 times
Operating Temperature	-40°C to 70°C
Material	Metal
Application	FTTx, LAN, CATV, Telecom
Certification	RoHS, SGS, CE
Connector Type	FC-FC
Polish Type	UPC; APC
Fiber Mode	Singlemode; Multimode; OM3; OM4; OM5
Color	SM: Blue, Green \| MM: Beige \| OM3: Aqua \| OM4: Violet \| OM5: Lime Green
Core	Simplex
Flange	With flange/with ear

Product Images

Company Introduction

New Light Optics Technology Limited is a high-tech company specializing in the R&D, manufacturing, sales, and service of optical communication products. Established in 2011, our factory has over 6 years of OEM and manufacturing experience serving customers worldwide.

Product Portfolio

Our comprehensive product line includes: Patch Cords, Pigtails, MTP/MPO Patch Cords, Fiber Optical Adapters (SC, LC, FC, ST, MPO), MPO Attenuators, and various Fiber Optical Connectors.

Our products are widely used in telecommunications, fiber optical CATV, digital internet fiber transmission, data base stations, and more. With high-tech capabilities, professional R&D teams, advanced production equipment, and sophisticated engineering skills, we maintain a rigorous quality control system.

We serve customers in over 60 countries including USA, Europe, Brazil, Middle East, and Asia, receiving high reputation and positive feedback from all clients.

Delivery & Payment Terms

Delivery time: 2-15 working days after payment receipt
Package: Export standard packaging
Payment terms: T/T, PayPal, Western Union, L/C (30% deposit, 70% balance before delivery)
Warranty: 3 years
Delivery methods: Air (DHL, UPS, FEDEX, TNT) or Sea freight

Contact: WhatsApp 008613534063703
