Fiber Optic Adapter SC UPC Connector Single Mode Bare Fiber Adaptor with Repeatability >1000 Times

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

Fiber Optic Adapter SC UPC Connector Single Mode Bare Fiber Adaptor with Repeatability >1000 Times

Brand Name:	New Light
Model Number:	SC
MOQ:	100
Price:	0.08~1.5
Packaging Details:	standard export package
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Material:

Plastic With Metal

Connector Type:

SC UPC

Mode Type:

Single Mode

Repeatability:

>1000 Times

Return Loss:

UPC ≥55dB

Packing:

Standard Export Package

Adaptor Type:

Fixed Bare Adaptor

Installation:

Press ( Easy To Operate)

Supply Ability:

1000000

Highlight:

fiber optic cable adapter

sc simplex adapter

Product Description

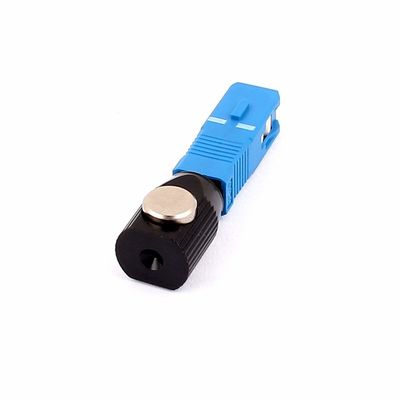

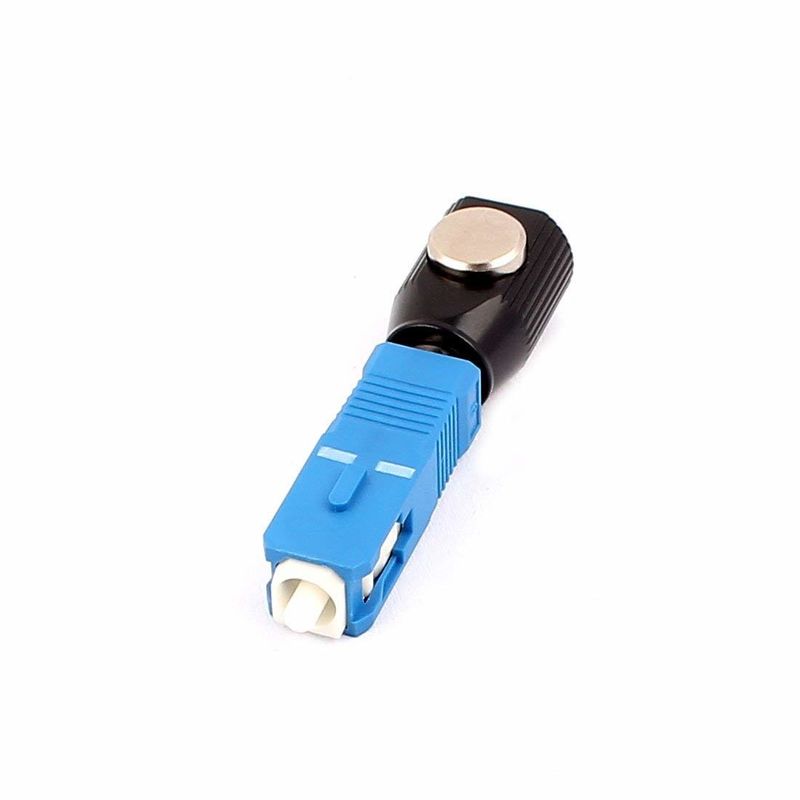

Fiber Optic Bare Fiber SC Adaptor

Professional bare fiber adaptor designed for efficient fiber optic installation and testing applications.

Product Overview

The SC bare fiber adaptor is specifically designed for bare optic fiber applications. It offers easy operation and installation, saving time while providing convenient portability. This tool is widely used in optical fiber data testing due to its user-friendly design and installation process.

After removing the cable coating, the bare fiber can be easily inserted through the hole without requiring epoxy glue or any additional medium. The adaptor allows for simple insertion and removal with repeatable use, featuring low insertion loss and straightforward operation.

Technical Specifications

Parameter	Specification
Insertion Loss	≤0.15dB
Durability	>1000 times
Operating Temperature	-40~70°C
Material	Metal
Connector Type	SC
Bottom Shape	Round type
Polish Type	UPC single mode
Fiber Mode	G652D, G657A1, G657A2, G657B3, G655, etc
Color of Connector	Blue
Core Count	Simplex
Flange	Without
OEM/ODM	Available
Packing	10 pcs / plastic plate
MOQ	10 pcs (contact for sample information)

Applications

Testing equipment
Fiber optical CATV
Fiber optical sensor
Fiber optical telecommunication system

Key Features

Connector structure for easy use
Replaceable plug and connector modules
Customizable insert hole diameter size
Operation over 10000 times
Stable, reliable and reproducible performance
High precision mechanical dimensions

Whatsapp 008613534063703

Operation Instructions

Step 1: Prepare materials: bare fiber adaptor, cleaning paper, industrial alcohol, optical fiber scribe, optical fiber stripper.

Step 2: Strip 15-20mm of fiber coating.

Step 3: Clean the fiber with industrial alcohol.

Step 4: Press the fiber adaptor switch (square adaptor: press plywood; round adaptor: press round button). Slowly push the fiber along the inlet hole until it extends 4-6mm from the fiber-optic ferrule, then release the fiber switch to compress the fiber.

Step 5: Use optical fiber scribe to cut the exposed fiber end at the ceramic. After breaking the fiber end, pull out the fiber for repeatable use.

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we don't recommend ordering single pieces as the cost and price will be higher than your budget.

What's the price?

Pricing is based on quantity. We provide our best pricing after receiving your quantity requirements. Larger quantities receive more competitive pricing.

Can you quote FOB price?

Yes, but due to small size and weight, most deliveries are by air (DHL, TNT, UPS, FEDEX, etc). We recommend providing detailed specifications and quantity for freight-included pricing. EXW or CFR pricing is preferred. Contact us for shipping solutions.

How is your quality?

Our production follows IEC and European standards in near dust-free workshops. We use imported production and quality control equipment. All products undergo 100% testing before delivery.

What's your lead time?

We operate three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5000 pieces. Regular products are typically in stock. We accommodate urgent orders.

What's your warranty?

Patch cords include 2-year warranty from delivery for non-artificial damage. For artificial damage, we provide free repairs with customer covering freight costs.

What's your packing?

We use international export packaging and can print your logo on packaging materials.

Can you do OEM/ODM?

Yes, as a manufacturer we accept all OEM/ODM requests and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails with customer covering freight. For high-value products, sample charges apply but are refundable with orders.

How can I order?

1. Contact us with product name, specifications, quantity, and delivery address
2. We provide pricing and lead time based on your requirements
3. Upon acceptance, we issue Proforma Invoice
4. Production begins after payment receipt
5. We confirm delivery information and provide tracking
6. We prioritize long-term cooperation relationships

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.
