|Material:||Plastic With Metal||Connector Type:||SC UPC|
|Mode Type:||Single Mode||Repeatability:||>1000 Times|
|Return Loss:||UPC ≥55dB||Packing:||Standard Export Package|
|Adaptor Type:||Fixed Bare Adaptor||Installation:||Press ( Easy To Operate)|
fiber optic cable adapter,
sc simplex adapter
Fiber Optic Adaptor Product Name :

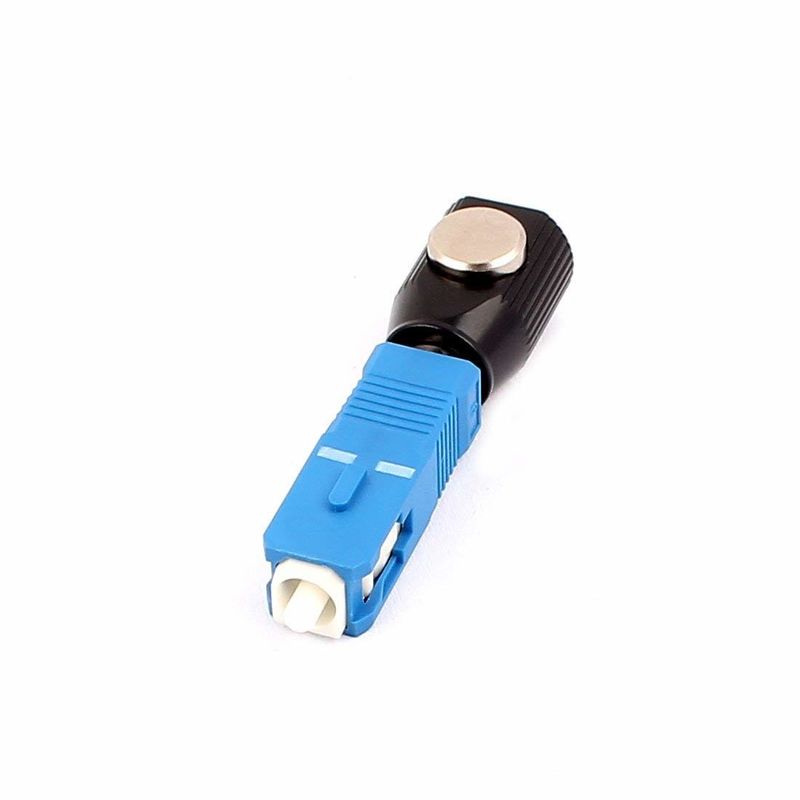

Fiber Optic Bare Fiber SC Adaptor For Fare Optic Fiber Installation
The SC bare fiber adaptor is aplicated for bare optic fiber . easy to operate and install . save time , convenient to carry . You can find more informaiton and the operation step below .
Bare fiber adaptor is an widly use tool for optical fiber data testing .Because It it very convenient to use and install . After finished remove the coating on the cable , use the bare fiber through the hole without epoxy glue and any medium . The bare fiber is easy to be inserted and pulled out and repeatedly used ,it has low insertion loss and easy operation
Fiber Optic Adaptor Prameter
|Product Name||Fiber Optic Bare Fiber SC Adaptor For Fare Optic Fiber Installation|
|bottom shape||Round type|
|Polish Type||UPC single mode|
|Fiber Mode||G652D ,G657A1 ,G657A2 ,G657B3 ,G655,etc|
|Color of connector||blue|
|packing||10 pcs / plastic plate|
|MOQ||10 pcs ( if you need sample , please contact us for more information)
Fiber Optic Adaptor Application:
Fiber Optic Adaptor Features :
1. Connector structure , easy to be use
2.Plug and connector mudules can be replaced
3. insert hole diameter size canbe customized
4. Operation over 10000 times
5. Stable , reliable and reproducible
6. High precision of mechanical dimensions
Fiber Optic Adaptor Operation Instructions
Step 1 : Prepare materials :bare fiber adaptor , cleans pater , industrial alcohol , optical fiber scribe , optical fiber stripper .
Step 2 : the fiber coating was stripped 15-20mm
Step 3 : used the industrial alcohol clean the fiber
Step 4 : press the fiber adaptor switch (square bare fiber adaptor press the plywood, round bare fiber adaptor press the round button ). Slowly push the fiber along the inlet hole until it extends out of the fiber - opitc ferrule 4-6mm to release the fiber switch to compress the fiber .
Step 5 : use the optical fiber cross pen , cut open the bottom of the fiber is exposed at the end of the ceramic . then put the fiber broken ,after the end of use the fiber will be pulled out repeatability
1. Q : Are you manufacturer ?
A: yes, we are manufacturer in Shenzhen,China
2. Q : What's your MOQ ?
A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .
3. Q : What's the price ?
A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .
4. Q: Can you quote FOB price ?
A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .
We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .
EXW price or CFR price will be better . You can contact us for more solution if you need .
5. Q: How is your quality ?
A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .
All the products are 100% test before delivery .
6. Q : Whats your lead time ?
A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .
For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .
7. Q : Whats your warranty ?
A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .
8. Q : Whats your packing ?
A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing
9. Q: Can you do OEM/ODM ?
A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .
10. Q: Can I have a sample ?
A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .
For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.
11. Q: How can I order ?
A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .
2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .
3. When you accept the quotation , we will make Profoma Invoice with our bank account .
4. We will arrange the production for you after we received payment .
5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .
6. We will try our best to meet your requirements for long-term cooperation .
12. Q: What your payment term ?
A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .
