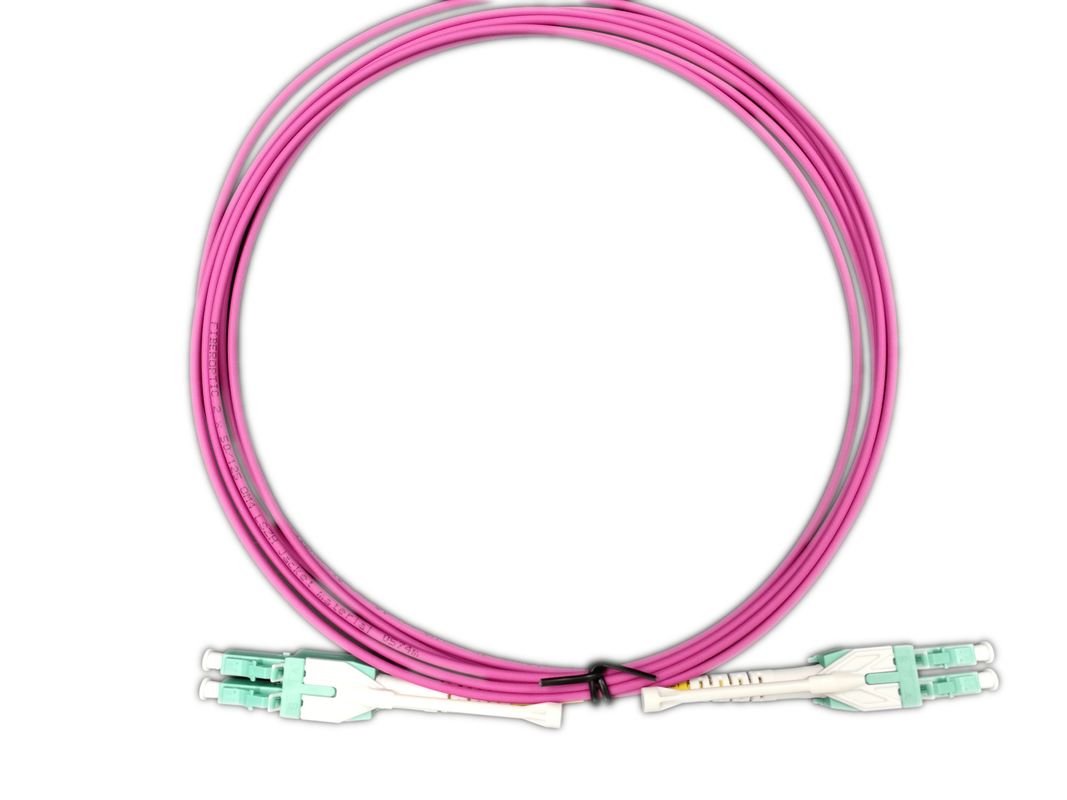

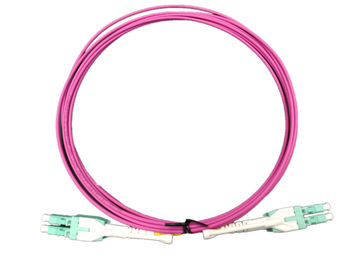

LC Unitboot OM4 Magenta Cable Duplex Optical Fiber Patch Cord 50 / 125 Pulling type

LC Unitboot OM4 Magenta Cable Duplex Optical Fiber Patch Cord 50 / 125 Pulling type

    • LC Unitboot OM4 Magenta Cable Duplex Optical Fiber Patch Cord 50 / 125 Pulling type
    • LC Unitboot OM4 Magenta Cable Duplex Optical Fiber Patch Cord 50 / 125 Pulling type
  • LC Unitboot OM4 Magenta Cable Duplex Optical Fiber Patch Cord 50 / 125 Pulling type

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: New Light
    Certification: CE , ISO ,RoHS
    Model Number: LC-LC

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: can be negotiated
    Packaging Details: OPP bag + carton box
    Delivery Time: 2-7 working days
    Payment Terms: T/T, Western Union, MoneyGram,paypal
    Supply Ability: 12000 pcs / day
    Contact Now
    Detailed Product Description
    Connector Type: LC /PC Cable Type: Duplex
    Cable Diameter: 2.0 / 3.0 Mm Jacket Material: LSZH
    Mode Type: Multi Mode Cable Color: Magenta
    Wave Length: 850 / 1300 Length: Can Be Customized
    Insertion Loss: ≤ 0.3dB Return Loss: ≥50dB
    Product Name: LC Unitboot OM4 Magenta Cable Duplex Optical Fiber Patch Cord 50 / 125 Pulling Type



    Optical Fiber Patch Cord Product Name:



    LC Unitboot OM4 Magenta Cable Duplex Optical Fiber Patch Cord 50 / 125 Pulling type



    Optical Fiber Patch Cord Cable Specifications


    Magenta color  Jacket
    Bend Radius - Minimum / 5cm
    Cable Jacket (900µm buffer ,2.0mm or 3.00mm)
    Operating Temperature / -4°C to 158°C (-20°C to +70°C)
    Multimode 40/100 Gigabit 50/125um
    Standard Zip Cord Duplex
    850 nm / 1310 nm
    Multiple Sizes Available

    OM4 minimum installation bending radius of 5 cm, the minimum length of bending radius
    Of 3 cm, excessive bending will increase the attenuation


    Optical Fiber Patch Cord Compatibility


    LC connects to Compatibility the multimode patch cord is compatible with all common 10GBase-SR,
    10GBase-LRM, SFP+ and QSFP+ transceivers for 10 gigabit network, data center, premises, educational,
    LAN, SAN, commercial and Asynchronous Transfer Mode (ATM) applications. It supports video, data and voice services.



    Optical Fiber Patch Cord Data Sheet:



    Mode Singlemode(OS1, OS2 9/125)

    Multimode (OM1 50/125, OM2 62.5/125,

    OM3 50/125, OM4 50/125) OM5

    Polishing PC UPC APC PC
    Insertion Loss ≤ 0.2dB (Typical ≤0.1dB) ≤ 0.2dB
    Return Loss ≥ 45dB ≥ 50dB ≥ 60 dB N/A
    Diameter Φ0.9, Φ2.0, Φ3.0mm
    Vibration ≤ 0.2dB (5~50Hz, 1.5mm Amplitude)
    Thermal Cycle ≤ 0.2dB (-40℃ ~ +80℃, 21 Cycles)



    Polishing PC APC
    Radius of Curvature 5 ~ 30 mm 5 ~ 12 mm
    Apex Offset ≤ 70 um
    Fiber Spherical Height -125 to +100 um
    Angular Error N/A 8° ± 0.5°





    How To Order Optical Fiber Patch Cord:



    1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
    2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
    3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
    4. Coating material : PVC / LSZH
    5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core
    6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
    7. Patch cord length : according to your requirements



    Optical Fiber Patch Cord Connector type :



    LC Unitboot OM4 Magenta Cable Duplex Optical Fiber Patch Cord 50 / 125 Pulling type



    FQA :



    1. Q : Are you manufacturer ?

    A: yes, we are manufacturer in Shenzhen,China



    2. Q : What's your MOQ ?

    A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .



    3. Q : What's the price ?

    A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .



    4. Q: Can you quote FOB price ?

    A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .



    We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .



    EXW price or CFR price will be better . You can contact us for more solution if you need .



    5. Q: How is your quality ?

    A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .



    All the products are 100% test before delivery .



    6. Q : Whats your lead time ?

    A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .

    For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .



    7. Q : Whats your warranty ?

    A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .



    8. Q : Whats your packing ?

    A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing



    9. Q: Can you do OEM/ODM ?

    A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .



    10. Q: Can I have a sample ?

    A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .

    For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.



    11. Q: How can I order ?

    A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .

    2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .

    3. When you accept the quotation , we will make Profoma Invoice with our bank account .

    4. We will arrange the production for you after we received payment .

    5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .

    6. We will try our best to meet your requirements for long-term cooperation .



    12. Q: What your payment term ?

    A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .



    Packing for reference :

    LC Unitboot OM4 Magenta Cable Duplex Optical Fiber Patch Cord 50 / 125 Pulling type
