LC Unitboot OM4 Magenta Duplex Optical Fiber Patch Cord with Customizable Length

Brand Name:	New Light
Model Number:	LC-LC
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector Type:

LC /PC

Cable Type:

Duplex

Cable Diameter:

2.0 / 3.0 Mm

Jacket Material:

Mode Type:

Multi Mode

Cable Color:

Magenta

Wave Length:

850 / 1300

Length:

Can Be Customized

Insertion Loss:

≤ 0.3dB

Return Loss:

≥50dB

Product Name:

LC Unitboot OM4 Magenta Cable Duplex Optical Fiber Patch Cord 50 / 125 Pulling Type

Connector Type:

LC /PC

Cable Type:

Duplex

Cable Diameter:

2.0 / 3.0 Mm

Jacket Material:

Mode Type:

Multi Mode

Cable Color:

Magenta

Wave Length:

850 / 1300

Length:

Can Be Customized

Insertion Loss:

≤ 0.3dB

Return Loss:

≥50dB

Product Name:

LC Unitboot OM4 Magenta Cable Duplex Optical Fiber Patch Cord 50 / 125 Pulling Type

Supply Ability:

1000000

Highlight:

duplex fiber patch cord

sc sc fiber patch cord

Product Description

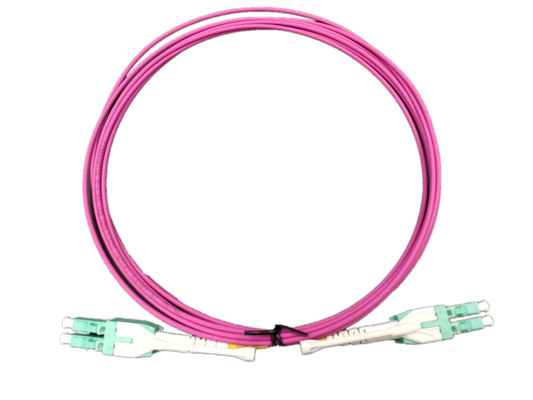

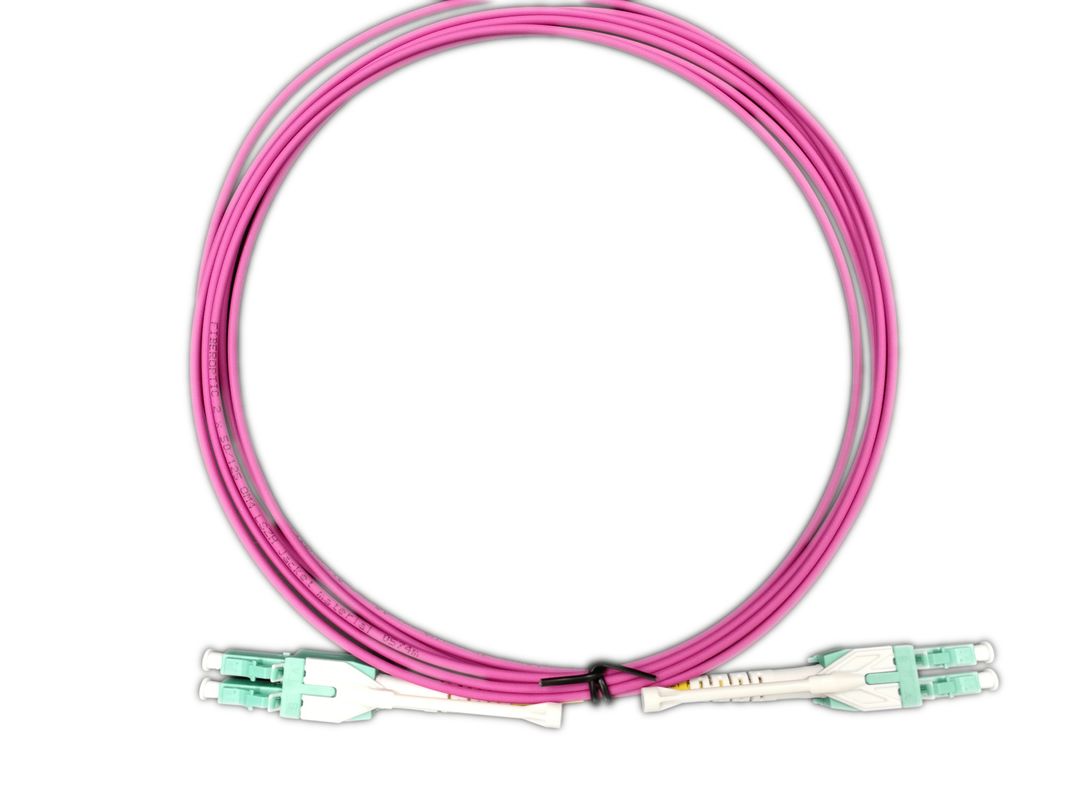

LC Unitboot OM4 Magenta Cable Duplex Optical Fiber Patch Cord

High-performance 50/125μm duplex optical fiber patch cord with pulling type construction, designed for demanding data center and network applications.

Cable Specifications

Magenta color jacket for easy identification
Minimum bend radius: 5cm
Cable jacket options: 900μm buffer, 2.0mm or 3.00mm
Operating temperature: -4°C to 158°C (-20°C to +70°C)
Multimode 40/100 Gigabit 50/125μm
Standard zip cord duplex design
Wavelength: 850 nm / 1310 nm
Multiple sizes available

OM4 minimum installation bending radius of 5cm, with minimum dynamic bending radius of 3cm. Excessive bending may increase attenuation.

Compatibility

LC connector compatible with all common 10GBase-SR, 10GBase-LRM, SFP+ and QSFP+ transceivers for 10 gigabit networks. Ideal for data centers, premises, educational institutions, LAN, SAN, commercial applications, and Asynchronous Transfer Mode (ATM) systems. Supports video, data, and voice services.

Technical Specifications

Parameter	Singlemode (OS1, OS2 9/125)	Multimode (OM1 50/125, OM2 62.5/125, OM3 50/125, OM4 50/125) OM5
Polishing	PC \| UPC \| APC \| PC	≤ 0.2dB
Insertion Loss	≤ 0.2dB (Typical ≤0.1dB)	≤ 0.2dB
Return Loss	≥ 45dB \| ≥ 50dB \| ≥ 60 dB \| N/A	N/A
Diameter	Φ0.9, Φ2.0, Φ3.0mm
Vibration	≤ 0.2dB (5~50Hz, 1.5mm Amplitude)
Thermal Cycle	≤ 0.2dB (-40℃ ~ +80℃, 21 Cycles)

Polishing Type	PC	APC
Radius of Curvature	5 ~ 30 mm	5 ~ 12 mm
Apex Offset	≤ 70 μm
Fiber Spherical Height	-125 to +100 μm
Angular Error	N/A	8° ± 0.5°

Ordering Information

Customize your optical fiber patch cord by specifying:

Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
Mode type: single mode (UPC and APC) / multi mode (PC)
Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
Coating material: PVC / LSZH
Fiber count: simplex / duplex / 4 core / 6 core / 8 core / 12 core / 24 core
Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
Patch cord length: customized to your requirements

Connector Types

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your minimum order quantity (MOQ)?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

What's the price?

Pricing varies by quantity. We offer competitive pricing for bulk orders.

Can you quote FOB price?

We typically ship via air courier (DHL, TNT, UPS, FEDEX). EXW or CFR pricing is preferred. Contact us for shipping solutions.

How is your quality?

We produce according to IEC and European standards in near dust-free workshops with imported equipment. All products are 100% tested before delivery.

What's your lead time?

We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are in stock.

What's your warranty?

2-year warranty for non-artificial damage. Artificial damage repairs are free, but customer pays freight.

What's your packing?

International export packaging with custom logo printing available.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails (customer pays freight). Sample charges apply for high-value products.

How can I order?

Send inquiry with product specifications and quantity
We provide quotation with lead time
We create proforma invoice upon acceptance
Production begins after payment
We confirm shipping details and provide tracking

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.

Packaging Reference
