High-Density Fiber Optic Distribution Frame with ABS / PC Material and 1X8/16/32/64 Cores Capacity

Brand Name:	New Light
Model Number:	MPO / MTP - LC / SC / FC / ST
MOQ:	1~10000
Price:	10~100
Packaging Details:	foam + carton box
Payment Terms:	L/C,,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE / ISO / RoHS

Material:

ABS / PC

Application:

FTTH / FTTB/ FTTX Network

Operating Temperature:

-20° ~ +80 °

Max Capacity:

1X8/16/32/64 Cores

Suitable Adaptor:

LC / SC / ST / FC

OEM/ ODM:

Acceptable

Deliery Time:

2-10 Working Days After Receive Payment

Payment Method:

T/T , Paypal , Western Union , Money Gram

OEM / OEM:

Acceptable

Warranty:

3 Years

Shipping:

By Air Or By Sea

Supply Ability:

2000 pcs per month

Highlight:

odf fiber optic patch panel

fiber optic distribution box

Product Description

1 x 8 SC/UPC Optical Fiber Distribution Frame

High-density fiber optic distribution frame with ABS material construction, designed for easy installation and optimal performance in optical communication networks.

Product Overview

This ODF unit box features high-density, high-capacity design with excellent aesthetics, rational distribution layout, easy identification, simplified management, straightforward installation, and superior operational performance.

The distribution frame can be individually configured or integrated with digital wiring units and audio wiring units within cabinets/racks to create comprehensive distribution systems.

Essential equipment for fiber optic communication cable network terminals or relay points, enabling efficient fiber splicing and jump splicing operations.

Technical Specifications

Standard Operating Wavelength	850nm, 1310nm, 1550nm
Insertion Loss	≤0.3dB, additional loss variation ≤0.2dB, additional loss variation ≤5dB
Return Loss	PC≥40dB, UPC≥50dB, APC≥60dB
Dielectric Strength	≥3KV (DC) / 1min without breakdown, no arcing
Insulation Resistance	≥1000MΩ / 500V (DC)
Life Cycle	≥1000 times
Optical Fiber Bending Radius	≥40mm
Optical Fiber Connector Durability	500 plugging cycles: no mechanical damage, pin surface without visible scratches

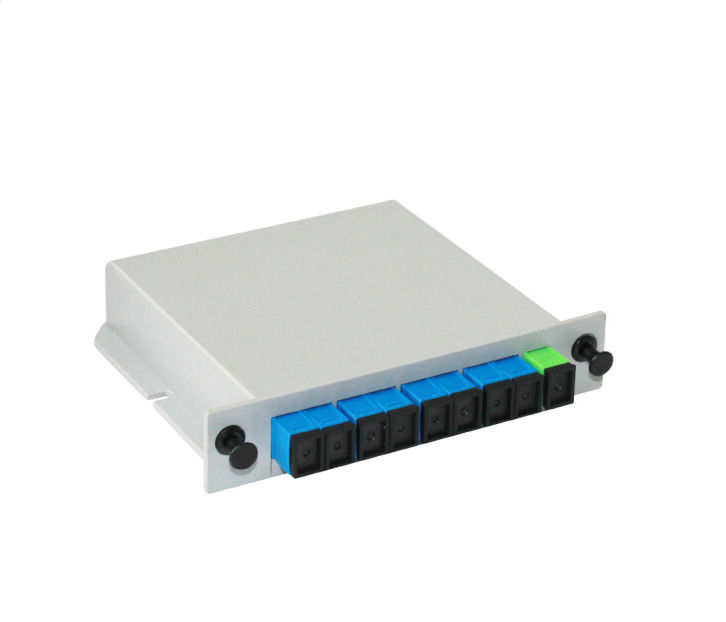

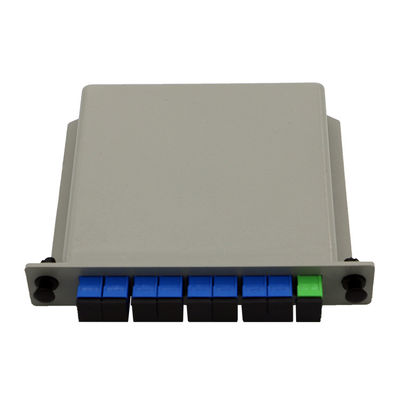

Product Images

Manufacturer Profile

New Light Optics Technology Limited is a high-tech company specializing in optical communication products R&D, manufacturing, sales, and service. Established in 2011, our factory has over 6 years of OEM and manufacturing experience serving customers worldwide.

Our comprehensive product line includes: Patch Cords/Pigtails, Patch Cord Cables, MTP/MPO Patch Cords, Fiber Optical Adapters, Attenuators, Fiber Optical Connectors, and more. Our products are widely used in Telecommunications, Fiber Optical CATV, Digital Internet Fiber Transmission, Data Base Stations, and related applications.

We maintain advanced technology, professional R&D teams, sophisticated production equipment, and skilled engineers. With a robust quality control system, our products are exported to over 60 countries including USA, Europe, Brazil, Middle East, and Asia, earning high reputation and positive customer feedback.

Ordering & Delivery Information

Payment Methods: T/T, L/C, Paypal, Western Union, Moneygram
Payment Terms: 30% deposit in advance, 70% balance paid before delivery
Packaging: International standard packaging (OPP bag + Carton Box)
Delivery Time: 2-7 working days (depending on quantity) after payment receipt
Warranty: 3 years after delivery
Shipping Methods: By air (DHL, TNT, UPS, Fedex), By sea (as required)

Why Choose New Light Optics

Competitive pricing
Fast delivery service
Long-term warranty protection
Reliable product quality
Professional product and technical support
Prompt response to inquiries and questions
Value-added services including logistics support and comprehensive assistance

Contact Information

whatsapp 0086 13534063703
