SC-LC Fiber Optic Adapter with Low Insertion Loss and Blue Plastic Housing for Hybrid Connector Applications

Brand Name:	New Light
Model Number:	SC male - LC female
MOQ:	100
Price:	0.08~1.5
Packaging Details:	standard export package
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Material:

Plastic

Connector Type:

SC Male - LC Female

Mode Type:

Single Mode

Repeatability:

>1000 Times

Return Loss:

PC ≥ 45dB UPC ≥55dB APC ≥65dB

Ferrule Polishing:

Packing:

Standard Export Package

Certificate:

CE , ISO , RoHS

Application:

FTTH FTTB FTTX Network,Telecommunication/Fiber Optic CATV/Multimedia

Supply Ability:

1000000

Highlight:

fiber optic cable adapter

sc simplex adapter

Product Description

SC Fiber Optic Connectors Adaptor

Low Insertion With Blue Plastic Housing

Product Overview

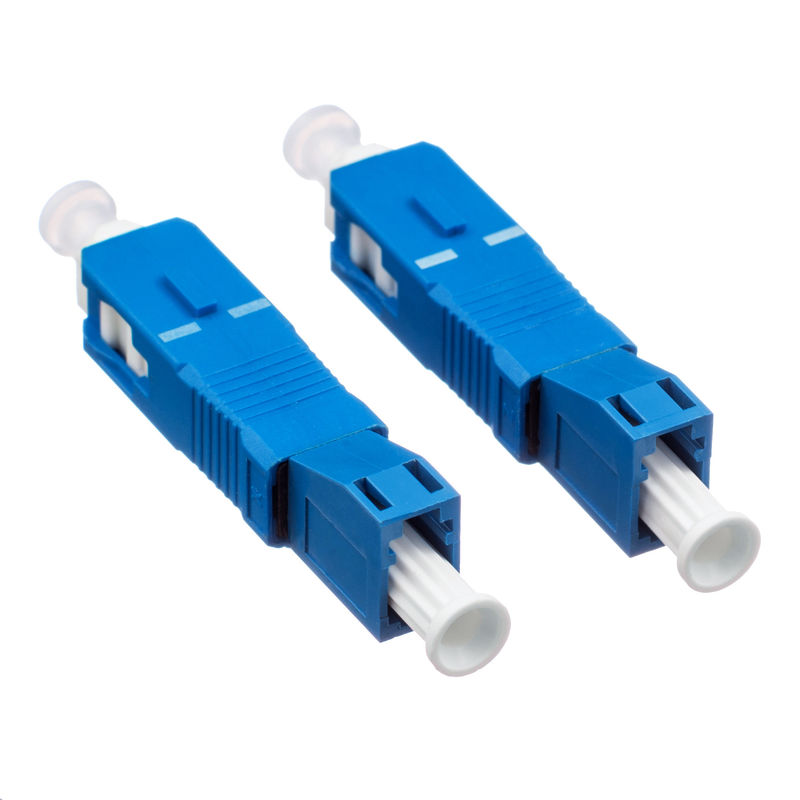

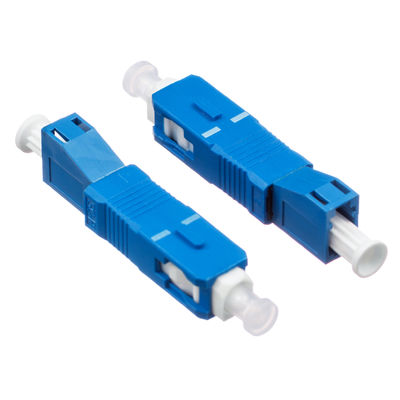

This hybrid fiber optic adapter features an SC male connector on one end and LC female connector on the other end, providing versatile connectivity solutions for different fiber optic systems.

Key Features

Hybrid configuration: SC male to LC female connectors
Durable housing: Metal & Engineering Plastic Blue construction
Versatile connectivity for patch cords with different connectors
Compact design reduces system size, weight, and complexity
Low insertion loss: ≤ 0.5dB

Technical Specifications

Parameter	Specification
Product Name	SC Fiber Optic Connectors Adaptor Low Insertion With Blue Plastic Housing
Model	Female & Male
Connector Type	SC male to LC female
Ferrule Polishing	UPC
Mode Type	Single mode
Operating Wavelength	SM: 1310/1550nm MM: 850/1300nm
Return Loss	PC: ≥50dB UPC: ≥55dB APC: ≥60dB
Attenuation Tolerance	≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB)
Maximum Optical Input Power	1000mW
Polarization Dependent Loss	≤0.1dB
Working Temperature	-40°C to +75°C
Storage Temperature	-40°C to +85°C
Humidity	95% RH

Ordering Information

Step 1: Connector type: FC, SC, LC, ST

Step 2: Ferrule End-face: PC, UPC, APC

Step 3: Type: Single-mode, Multimode

Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB

Step 5: Mode: Fixed, Female & Male, In-line, Variable

Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we don't recommend ordering just 1 piece as the cost and price will be higher. Larger quantities receive more competitive pricing.

What's the price?

Price varies by quantity. We provide our best pricing based on your order quantity, with competitive rates for larger volumes.

Can you quote FOB price?

Yes, but due to small size and weight, most shipments are by air (DHL, TNT, UPS, FEDEX). We recommend providing specifications and quantity for freight-included pricing. EXW or CFR pricing is preferred.

How is your quality?

We follow IEC and European standards in near dust-free workshops with imported production and quality control equipment. All products are 100% tested before delivery.

What's your lead time?

We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are in stock and we can handle urgent orders.

What's your warranty?

Patch cords have 2-year warranty for non-artificial damage. For artificial damage, we repair for free but freight is paid by customer.

What's your packing?

We use international export packaging and can print your logo on the packaging.

Can you do OEM/ODM?

Yes, we accept OEM/ODM and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails (customer pays freight). For high-value products, sample charge applies but is refundable with order.

How can I order?

Send inquiry with product details, specifications, and quantity. We'll provide pricing and lead time, then issue Proforma Invoice upon acceptance.

What are your payment terms?

T/T, Western Union, PayPal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.

Product Images

Packaging Reference

Whatsapp: 008613534063703
