ST Female to Male Fiber Optic Attenuator with High Power 1W and 1-30dB Attenuation for Single Mode Applications

Brand Name: New Light
Model Number: ST female to male
MOQ: 10
Price: 1~30
Packaging Details: standard export package
Payment Terms: L/C,T/T,Western Union,MoneyGram,paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE / ISO / RoHS
Material:
Metal
Connector Type:
ST Female To Male
Mode Type:
Single Mode
Repeatability:
>1000 Times
Attenuation:
1-30 DB
Return Loss:
PC ≥ 45dB UPC ≥55dB APC ≥65dB
Delivery Time:
2-10 Working Days After Receive Payment
Packing:
Standard Export Package
Payment Term:
T/T , L/C , PAYPAL , WESTEN UNION , MONEY GRAM
Certificate:
CE , ISO , RoHS
Supply Ability:
100,000 pcs per month
Highlight:

variable optical attenuator

,

fixed optical attenuator

Product Description
ST Female to Male Fiber Optic Attenuator
High Power Single Mode Attenuator with 5dB attenuation
Product Overview
ST/UPC Fiber Optical Attenuator available in 1-30dB range, offering exceptional quality, competitive pricing, and fast delivery.
Key Features
  • High power 1W continuous operation tested over 1000 hours
  • Precise attenuation with minimal tolerance
  • Superior return loss: UPC >50 dB, APC >60 dB
  • Low ripple broadband design for 1310nm and 1550nm operation
  • Attenuation range: 1-13dB in 1dB increments, plus 15dB and 20dB options
Applications
  • Fiber optic communication systems
  • CATV and telecommunication networks
  • Receiver padding for optical receiver protection
  • Optical power equalization
Technical Specifications
Parameter Specification
Model Fixed, Female & Male, In-line, Variable
Operating Wavelength SM: 1310/1550nm, MM: 850/1300nm
Attenuation Range 1-30dB
Return Loss PC: ≥50dB, UPC: ≥55dB, APC: ≥60dB
Attenuation Tolerance ≤±0.5dB (1-10dB) or ≤±1.0dB (11-30dB)
Maximum Optical Input Power 1000mW
Polarization Dependent Loss ≤0.1dB
Working Temperature -40°C to +75°C
Storage Temperature -40°C to +85°C
Humidity 95% RH

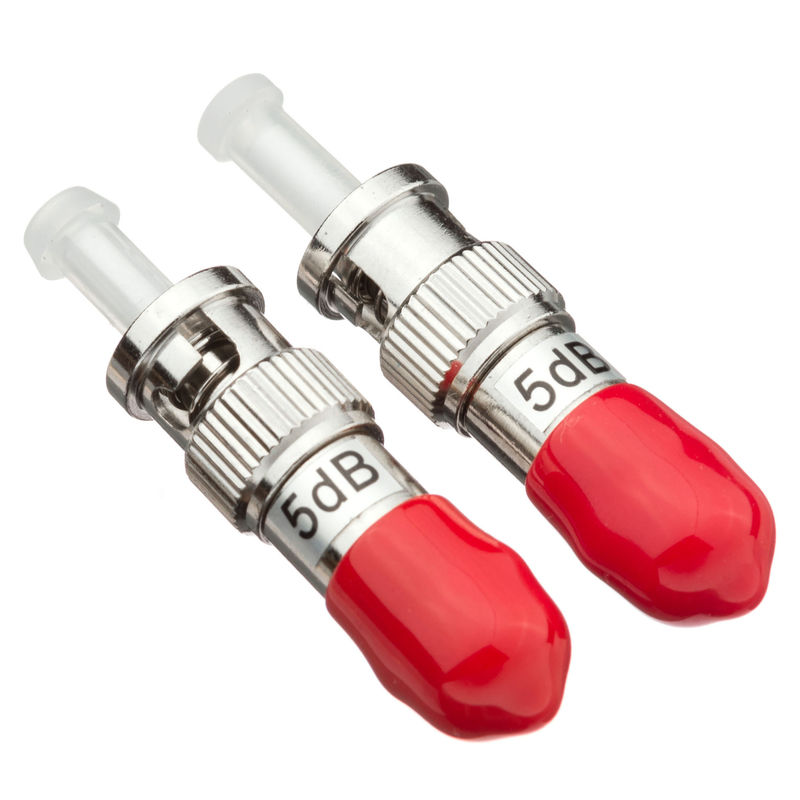

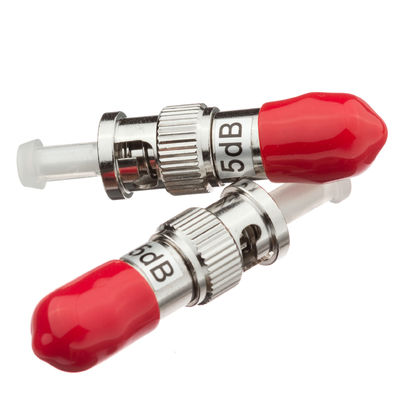

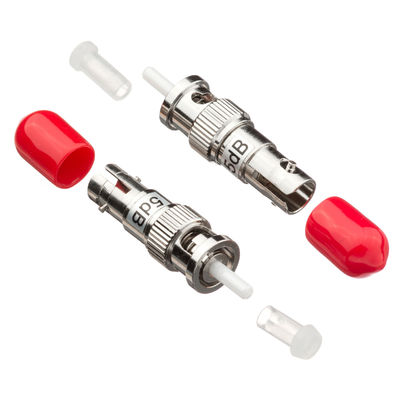

Product Images
ST Female to Male Fiber Optic Attenuator with High Power 1W and 1-30dB Attenuation for Single Mode Applications 0
Related Products
ST Female to Male Fiber Optic Attenuator with High Power 1W and 1-30dB Attenuation for Single Mode Applications 1
Company Profile
New Light Optics Technology Limited is a high-tech company specializing in optical communication products R&D, manufacturing, sales, and service. Established in 2011, we have 6+ years of OEM and manufacturing experience serving customers worldwide.
Our comprehensive product line includes: Patch Cords/Pigtails, Patch Cord Cables, MTP/MPO Patch Cords, Fiber Optical Adapters, Attenuators, Fiber Optical Connectors, and more.
Our products are widely used in telecommunications, fiber optical CATV, digital internet fiber transmission, data base stations, and other applications. We serve customers in over 60 countries including USA, Europe, Brazil, Middle East, and Asia.
Ordering & Delivery
Delivery Time: 2-15 working days after payment confirmation
Packaging: Export standard package
Payment Terms: T/T, PayPal, Western Union, L/C (30% deposit, 70% balance before delivery)
Warranty: 3 years
Delivery Methods: Air (DHL, UPS, FedEx, TNT) or Sea
Ordering Information
  1. Connector type: FC, SC, LC, ST
  2. Ferrule End-face: PC, UPC, APC
  3. Type: Single-mode, Multimode
  4. Attenuation: 1-10dB (1dB step), 15, 20, 25, 30dB
  5. Mode: Fixed, Female & Male, In-line, Variable
  6. Wavelength: 1310nm, 1550nm, 850nm, 1300nm
Contact Information
WHATSAPP: 008613534063703
Tags:

variable optical attenuator

fixed optical attenuator

single mode fiber attenuator
