SC Female to FC Male Fiber Optic Adapter with APC Polishing and Return Loss ≥65dB for Reliable Data Transmission

Brand Name:	New Light
Model Number:	FC male -SC female
MOQ:	100
Price:	0.08~1.5
Packaging Details:	standard export package
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Material:

Metal

Connector Type:

SC APC

Repeatability:

>1000 Times

Return Loss:

PC ≥ 45dB UPC ≥55dB APC ≥65dB

Packing:

Standard Export Package

Certificate:

CE , ISO , RoHS

Supply Ability:

1000000

Highlight:

sc simplex adapter

lc fiber optic adapter

Product Description

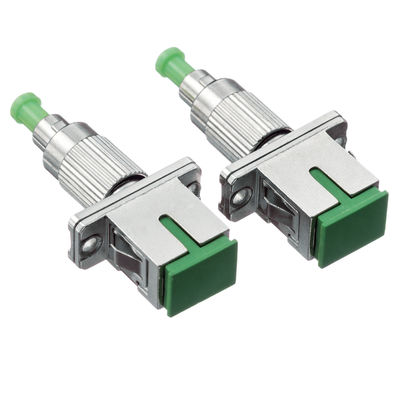

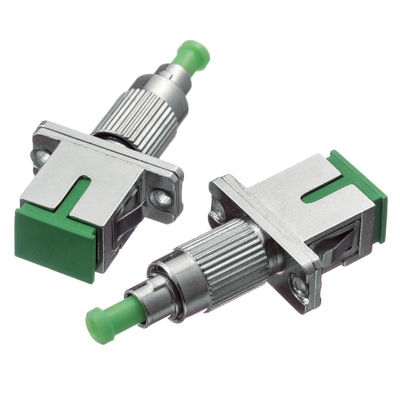

SC Female to FC Male Fixed Type Fiber Optical Adapter APC Polishing Type

This fixed type fiber optic adapter features SC female to FC male connectors with APC polishing. Available in UPC and APC single mode configurations, with UPC typically using black caps and APC using green caps for easy identification.

Product Features

Fiber Connectors: SC APC male-female
Operating Wavelengths: 1310nm, 1550nm
Polish Type: Ultra Physical Contact (UPC)
Maximum Optical Input Power: 200nW
Return Loss: ≥55dB

Technical Specifications

Parameter	Specification
Product Name	SC Female To FC Male Fixed Type Fiber Optical Adapter APC Polishing Type
Model	Female & Male
Operating Wavelength	SM: 1310/1550nm
Return Loss	PC: ≥50dB, UPC: ≥55dB, APC: ≥60dB
Attenuation Tolerance	≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB)
Maximum Optical Input Power	1000mW
Polarization Dependent Loss	≤0.1dB
Working Temperature	-40°C to +75°C
Storage Temperature	-40°C to +85°C
Humidity	95% RH

Ordering Information

Follow these steps when ordering:

Step 1: Connector type: FC, SC, LC, ST
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Mode: Fixed, Female & Male, In-line, Variable
Step 5: Wavelength: 1310nm, 1550nm, 850nm, 1300nm

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your minimum order quantity (MOQ)?

MOQ can be 1 piece, but we recommend larger quantities for better pricing as single-piece orders incur higher costs.

What's the price?

Pricing depends on quantity. We provide competitive pricing for larger orders upon request.

Can you quote FOB price?

We typically recommend EXW or CFR pricing due to product size and weight. We provide comprehensive freight solutions for all order sizes.

How is your quality?

We produce according to IEC and European standards in near dust-free workshops using imported equipment. All products undergo 100% testing before delivery.

What's your lead time?

We maintain three factories in China with quick turnaround times. Standard patch cord orders of 5,000 pieces typically ship in 2-3 working days.

What's your warranty?

Patch cords include a 2-year warranty covering non-artificial damage from delivery date.

What's your packing?

We use international export packaging and offer custom logo printing services.

Can you do OEM/ODM?

Yes, we support OEM/ODM services and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails with freight prepaid by customer.

How can I order?

Contact us with product specifications and quantity. We'll provide pricing, lead time, and proforma invoice for order processing.

What are your payment terms?

We accept T/T, Western Union, PayPal, and MoneyGram. For large orders: 50% deposit, 50% balance before delivery.

Packaging Reference

WhatsApp: 008613534063703
