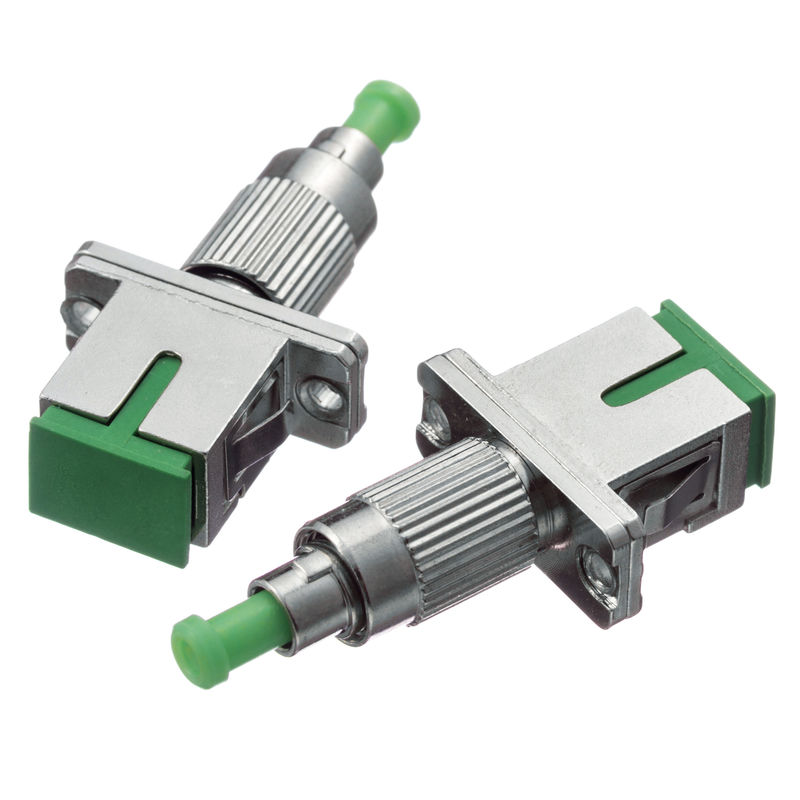

SC Female To FC Male Fixed Type Fiber Optical Adapter APC Polishing Type

SC Female To FC Male Fixed Type Fiber Optical Adapter APC Polishing Type

    • SC Female To FC Male Fixed Type Fiber Optical Adapter APC Polishing Type
    • SC Female To FC Male Fixed Type Fiber Optical Adapter APC Polishing Type
  • SC Female To FC Male Fixed Type Fiber Optical Adapter APC Polishing Type

    Product Details:

    Place of Origin: Shenzhen China
    Brand Name: New Light
    Certification: CE / ISO / RoHS
    Model Number: FC male -SC female

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: can be negotiated
    Packaging Details: standard export package
    Delivery Time: 2-10 working days
    Payment Terms: L/C, T/T, Western Union, MoneyGram, paypal
    Supply Ability: 100,000 pcs per month
    Contact Now
    Detailed Product Description
    Material: Metal Connector Type: SC APC
    Repeatability: >1000 Times Return Loss: PC ≥ 45dB UPC ≥55dB APC ≥65dB
    Packing: Standard Export Package Certificate: CE , ISO , RoHS

     Fiber Optic Adaptor Product Name



    SC Female To FC Male Fixed Type Fiber Optical Adapter APC Polishing Type

    Fiber optic adaptor Product Description


    This is a male to female fixed type adaptor . It have UPC and APC single mode . UPC normal use black color cap ,and APC is green color cap  .



    Single mode type is more hot sale , because single mode cable and patch cord are widly used in the data transmission  . That is according to the character of the fiber  .



    Single mode is widly used because it can use in long distance transmission . but the wavelength band is less than multi mode .



    Single mode wavelength is 1310/1550nm , and multi mode is 850/1300nm .



    Fiber optic adaptor Feature :

    • Fiber Connectors: SCAPC male-female
    • Operating Wavelengths: 1310nm, 1550nm
    • Polish Type: Ultra Physical Contact (UPC)
    • Maximum Optical Input Power: 200nW
    • Return Loss: ≥55dB


    Fiber optic adaptor  Specification:

    Product name SC Female To FC Male Fixed Type Fiber Optical Adapter APC Polishing Type
    Item Parameter
    Model  Female&Male
    Operating Wavelength SM:1310/1550nm
    Return Loss PC:≥50dB UPC: ≥55dB APC: ≥60db
    Attenuation Tolerance ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB)
    Maximum Optical Input Power 1000mW
    Polarization Dependent Loss ≤0.1dB
    Working Temperature -40°C~+75°C
    Storage Temperature -40°C~+ 85°C
    Humidity 95%RH



    Fiber optic adaptor  Ordering Information:

    Step 1: Connector type: FC, SC, LC, ST
    Step 2: Ferrule End-face: PC, UPC, APC
    Step 3: Type: Single-mode, Multimode
    Step 4: Mode: Fixed, Female&Male, In-line, Variable
    Step 5: Wavelength: 1310nm, 1550nm, 850nm, 1300nm





    FQA :



    1. Q : Are you manufacturer ?

    A: yes, we are manufacturer in Shenzhen,China



    2. Q : What's your MOQ ?

    A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .



    3. Q : What's the price ?

    A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .



    4. Q: Can you quote FOB price ?

    A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .



    We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .



    EXW price or CFR price will be better . You can contact us for more solution if you need .



    5. Q: How is your quality ?

    A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .



    All the products are 100% test before delivery .



    6. Q : Whats your lead time ?

    A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .

    For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .



    7. Q : Whats your warranty ?

    A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .



    8. Q : Whats your packing ?

    A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing



    9. Q: Can you do OEM/ODM ?

    A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .



    10. Q: Can I have a sample ?

    A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .

    For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.



    11. Q: How can I order ?

    A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .

    2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .

    3. When you accept the quotation , we will make Profoma Invoice with our bank account .

    4. We will arrange the production for you after we received payment .

    5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .

    6. We will try our best to meet your requirements for long-term cooperation .



    12. Q: What your payment term ?

    A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .



    Packing for reference :


     SC Female To FC Male Fixed Type Fiber Optical Adapter APC Polishing Type
