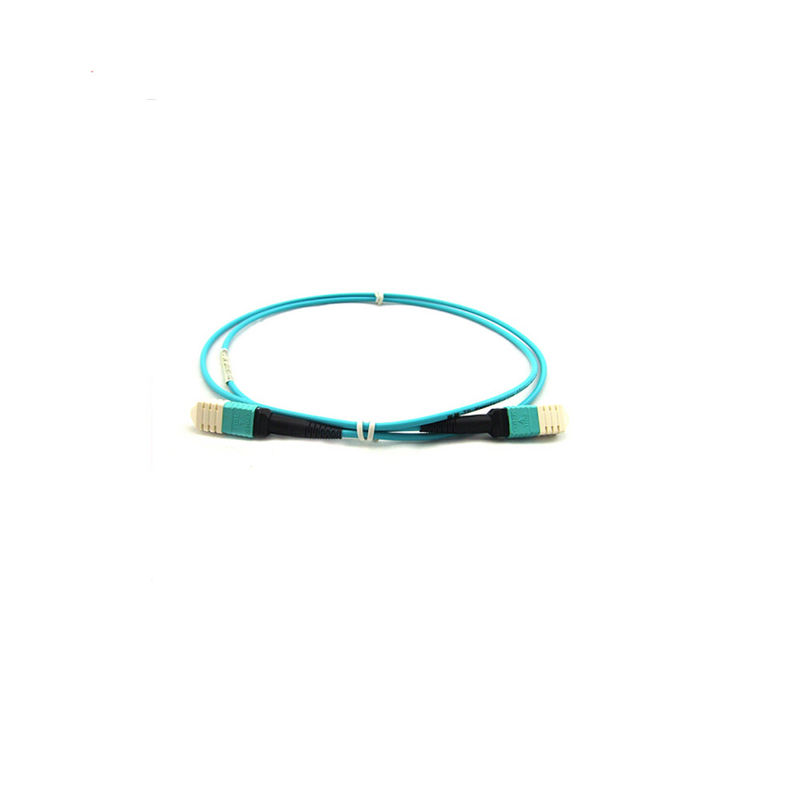

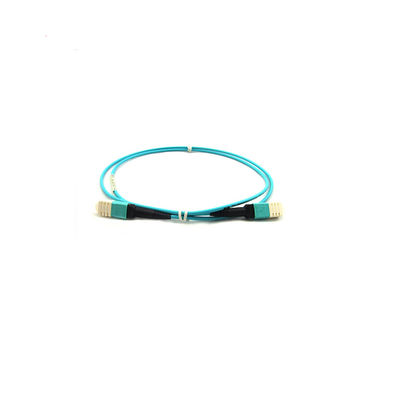

OM3 Multi Mode MPO MTP Cable Type B 8 Core Blue Color With 125 Micron Cladding

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

OM3 Multi Mode MPO MTP Cable Type B 8 Core Blue Color With 125 Micron Cladding

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	L/C, T/T, Western Union, MoneyGram , paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP

Material:

Mode Type:

Multi Mode

Core Type:

12 Core

Cable Color:

Length:

Can Be Customized According To Your Requirements

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Supply Ability:

500 pcs per day

Highlight:

mpo to mpo cable

mpo fanout cable

Product Description

Type B MPO - MPO Patch Cord 3.3 ft OM3 Multi Mode Fiber 8 core Fibers for QSFP +Transceivers

Product Description

Type B MPO - MPO Patch Cord 3.3 ft OM3 Multi Mode Fiber 8 core Fibers for QSFP +Transceivers

OM4 MTP/MPO to MTP/MPO 12 Strand Multi-Fiber Patch Cable. OFNP Multimode 50/125 100Gb Corning fiber optical cores, each with 125 micron cladding. MTP/MPO fiber connectors (no pins) with 12 OM4 multimode fiber strands. MPO 12 fiber connector on both sides of this multi-fiber, high density, optical patch cord with 12 Laser-Optimized Multimode Fiber (LOMMF) 100G rated fiber cores.
Length: 1 Meter (3.3ft)
Product Type: MTP/MPO 12 Fiber Strand Patch Cable | MTP Compatible Multi-Fiber Assembly
Jacket Color: Aqua - This is the standard jacket color for these multimode fiber jumper cords / fiber patch cables.
Core / Cladding: 50/125µm - 50 micron diameter fiber core / 125 micron diameter cladding (1 micron is 1 one-millionth/1 meter)

Technical Parameter

Item	Technical Parameters
Connector	MPO (F or M)	MPO (F or M)
Operation Temperature	-40°C ~ +80°C
Storage Temperature	-40°C ~ +85°C
Insertion Loss	SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value); MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);
Return Loss	SM:≥60dB; MM:≥35dB
The MPO end type	Male: with guide pin; Female: without guide pin
Fiber count	8,12&24 MT fiber
Connector type of the other end	MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000
Fiber mode	Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber cable type	250um ribbon fiber,ribbon cable,Bundle fiber optic cable

The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

Type A Straight-Through MPO Trunk Cable:
Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x A to A Duplex Patch Cable.

OM3 Multi Mode MPO MTP Cable Type B 8 Core Blue Color With 125 Micron Cladding 0

Type B Cross MPO Trunk Cable:
Key-Up to Key-Up Adapters and 2 x A to A Duplex Patch Cable.

OM3 Multi Mode MPO MTP Cable Type B 8 Core Blue Color With 125 Micron Cladding 1

Type C Cross Pair MPO Trunk Cable:
Key-Up to Key-Down Adapters and 2 x A to A Duplex Patch Cable.

OM3 Multi Mode MPO MTP Cable Type B 8 Core Blue Color With 125 Micron Cladding 2

Using temperature

-40° ~ +80°

Application :

Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication

Pakcing :

We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .

Delivery :

We can delivery it by air and by sea . it is according to your quantity and requirements .

Payment :

Payment term : T/T , L/C , PAYPAL / WESTERN UNION / MONEYGRAM . 30% deposit in advance . balance paid before delivery .

Price term : EXW , FOB , CIF , CFR . DOOR TO DOOR

More products :

We have optical patch cord , pigtail , adaptor , attenuator , distribution box , Quick Assmembly connector .etc . If you need more products or catalogue , you can feel free to contact us

OM3 Multi Mode MPO MTP Cable Type B 8 Core Blue Color With 125 Micron Cladding 3

OM3 Multi Mode MPO MTP Cable Type B 8 Core Blue Color With 125 Micron Cladding 4

Contact information:

OM3 Multi Mode MPO MTP Cable Type B 8 Core Blue Color With 125 Micron Cladding 5
