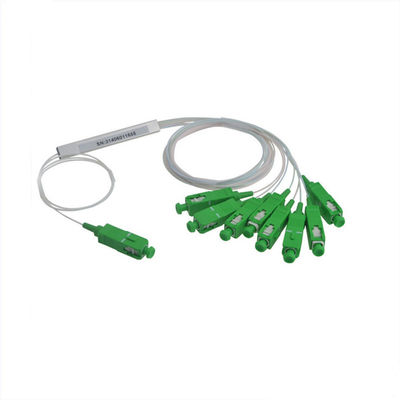

Steel Tube Input 250μm Fiber Optic PLC Splitter with 1x8 SC/APC Green Connector for Single Mode Applications

Brand Name:	New Light
Model Number:	SC APC
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Brand Name:

New Light

Fiber Type:

Connector Type:

SC APC

Operating Wave:

1260-1650

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Fiber Length:

As Your Requirement

Warranty:

3 Years

Delivery Time:

2-10 Working Days After Receive Payment

Payment:

T/T , L/C , Paypal , Westen Union , Money Gram

Products Name:

CATVSCOPE PLC Fiber Optic Splitter With 1x8 SC/APC Green Connector, Steel Tube Input 250μm Fiber

Supply Ability:

1000000

Highlight:

single mode fiber splitter

fiber optic cable splitter

Product Description

Steel Tube Input 250μM Fiber Optic PLC Splitter with 1 x 8 SC/APC Green Connector

This compact steel tube PLC splitter features a miniaturized design ideal for terminal boxes and distribution boxes. Available with customizable connectors to meet specific requirements.

Product Overview

Single mode optic-fiber tree and star couplers efficiently couple optical signals in the coupling area and redistribute light power. Key performance parameters include operating wavelength, bandwidth, excess loss, coupling ratio, and PDL.

Key Features

Low Insertion Loss
Uniform Power Splitting
Excellent Environmental & Mechanical Stability
Compact Mini Steel Tube Design (60*7*4mm)

Applications

Long-Haul Telecommunications
Digital, Hybrid and AM-Video CATV Systems
High Speed Local Area Networks
Fiber Sensors

Technical Specifications

Parameter	Specification
Mode Type	Single Mode
Port Configuration	1*8
Tube Size	Mini Steel Tube 6074mm
Core Type	G657A1
Cable Diameter	0.9mm
Input/Output Length	1 meter (customizable)
Insertion Loss	≤ 10.3dB
Return Loss	≥ 50dB
Wavelength	1260-1650nm
Connector Type	SC APC (Green)
Operating Temperature	-40°C to +85°C
Warranty	3 Years
Delivery Time	2-15 Working Days

Ordering Information

PLC Splitter Type: ABS / Mini Steel Tube

Input/Output Count: 1*2/4/6/8/16/32/64 or 2*2/4/8/16/32

Connector Type: SC/LC/FC/ST

Input/Output Length: 1 meter / 1.5 meter

Connector Mode Type: UPC / APC

OEM/ODM: Acceptable

Quality Assurance

All products include comprehensive test reports and quality certification to ensure performance meets industry standards.

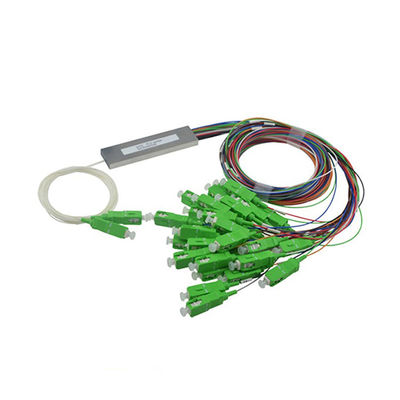

Product Images
