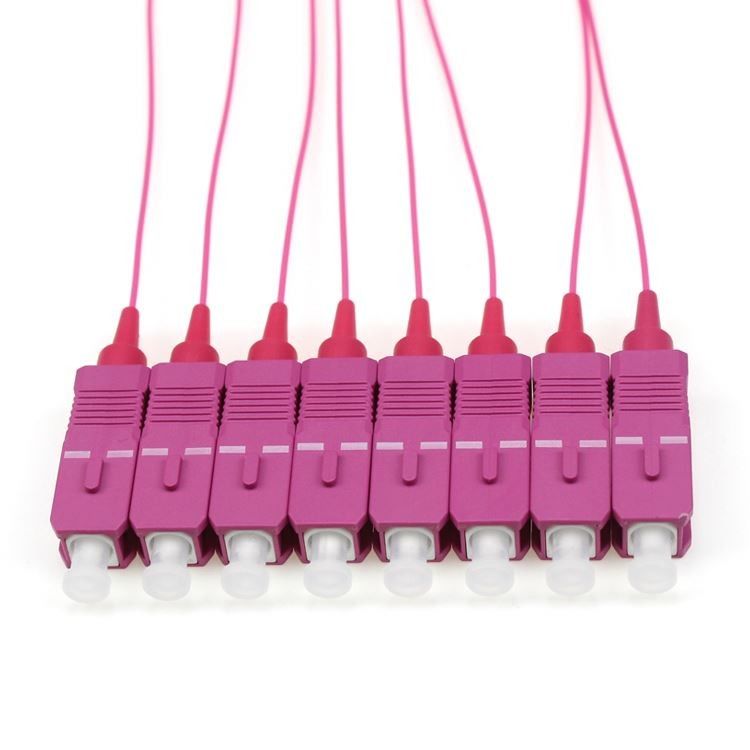

OM4 SC / PC Fiber Optic Pigtail , 1 M Fiber Jumper Cables 12 Colors 0.9mm

OM4 SC / PC Fiber Optic Pigtail , 1 M Fiber Jumper Cables 12 Colors 0.9mm
OM4 SC / PC Fiber Optic Pigtail , 1 M Fiber Jumper Cables 12 Colors 0.9mm
OM4 SC / PC Fiber Optic Pigtail , 1 M Fiber Jumper Cables 12 Colors 0.9mm OM4 SC / PC Fiber Optic Pigtail , 1 M Fiber Jumper Cables 12 Colors 0.9mm OM4 SC / PC Fiber Optic Pigtail , 1 M Fiber Jumper Cables 12 Colors 0.9mm

Large Image :  OM4 SC / PC Fiber Optic Pigtail , 1 M Fiber Jumper Cables 12 Colors 0.9mm

Product Details:
Place of Origin: ShenZhen , China
Brand Name: New Light
Certification: CE , ISO , RoHS
Model Number: SC/ PC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: can be negotiated
Packaging Details: OPP bag + carton box
Delivery Time: 2-7 working days after receive payment
Payment Terms: L/C, T/T, Western Union, MoneyGram , paypal
Supply Ability: 12000 pcs / day

OM4 SC / PC Fiber Optic Pigtail , 1 M Fiber Jumper Cables 12 Colors 0.9mm

Description
Products Name: SC / APC Optic Fiber Pigtail 12 Color 0.9 Mm 2 M Optic Fiber Jumping Cable Connector Type: SC( Can Be ST , FC , LC , MPO , MTRJ , MU )
Mode Type: Multi Mode Cable Color: Purple (according To Your Request)
Cable Diameter: 0.9mm Cable Length: 1 M (can Be Customized )
Insertion Loss: ≤ 0.3 DB Return Loss: ≥ 40dB
Delivery Time: 2-7 Working Days Payment Term: 30% Deposit In Advance , 70% Balance Paid Before Delivery
High Light:

single mode fiber pigtails

,

fibre optic tails







OM4 SC / PC Fiber Optic Pigtail , 1 M Fiber Jumper Cables 12 Colors 0.9mm





Low insertion loss,high return loss
• Excellent Temperature stability
• Good repeatability and exchangeability
• Excellent mechanical endurance
• Strict curing time and temperature control
• Strict testing standards and methods for quality
• Environment protection (ROHS Compliance)
• The fiber optical patch cord can be customized according to customers'specific
requirements (Customized Connector/Length/package...)
• 100% NEW raw material and well quality control ensure the best life time.





Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length





Product Name OM4 SC / PC Fiber Optic Pigtail , 1 M Fiber Jumper Cables 12 Colors 0.9mm
Modle Number Pigtail SC OM4
Diameter 0.9/2.0/3.0
Connector SC/LC/FC/ST/MPO
Cable length 1.2.3...Customized
Polishing yes,plished
Material LSZH/PVC
Form of sale OEM/ODM
Use Connect the optical transmitter, receiver, and the terminal box.
Custom Design Welcome
Sample Lead Time 1-3days
Certificate CE,ROHS
Advantage Low IL,High RL



Parameter Unit FC, SC, LC ST, MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC/UPC APC PC PC/UPC PC PC/UPC PC PC APC
Insertion loss(typical) dB ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3
Return loss dB ≥ 50 ≥ 60 ≥ 30 ≥ 50 ≥ 30 ≥ 50 ≥ 30 ≥ 55 ≥ 75
Operating wavelength nm 1310, 1550 1300(OM1)850 1310, 1550 1300(OM1)850 1310, 1550 1300(OM1)850 1310, 1550
Exchangeability dB ≤ 0.2 ≤ 0.2 ≤ 0.2 ≤ 0.2
Vibration dB ≤ 0.2 ≤ 0.2 ≤ 0.2 ≤ 0.2
Operating temperature   -40~75 -40~75 -40~75 -40~75
Storage temperature   -45~85 -45~85 -45~85 -45~85
Cable diameter mm φ 3.0, φ 2.0, φ 0.9 φ 3.0, φ 2.0, φ 0.9 φ 3.0, φ 2.0, φ 0.9 φ 3.0, φ 2.0





OM4 SC / PC Fiber Optic Pigtail , 1 M Fiber Jumper Cables 12 Colors 0.9mm 0



Application



OM4 SC / PC Fiber Optic Pigtail , 1 M Fiber Jumper Cables 12 Colors 0.9mm 1







Company introduction





New Light Optics Technology Limited specialized in the Optical communication products R & D, manufacture,sales and service as high-tech company.Our factory was established in 2011 and with 6 years OEM and manufacture experience for customer all over the world.



Our product line include: Patch Cord/Pigtails,Patch Cord Cables,MTP/MPO Patch Cord,Fiber Optical adapter, attenuator, Fiber optical connector... Etc. Our products widely used in Telecommunication,Fiber optical CATV, digital internet fiber transmit,data base station,etc.



Company have high tech technology, professional R & D team, advanced productionequipment,sophisticate skill engineers. And high quality control system,our products offer to customers to USA,European,Brazil,Middle East,and Asia more than 60 countries and areas.Products with high reputation and feedback from all customers!





Please contact us if any we can support and cooperate together!







Payment term and delivery



1. Payment : T/T , L/C , Paypal , Westen Union , Moneygram

2. 30% deposit in advance , 70% balance paid before delivery .

3. Package : internatinal standard package ( OPP bag + Carton Box )

4. Delivery time : 2-7 working days ( according to your quantity )after received payment .

5. Warranty : 3 year (after delivery ) .

6. Shipping method : BY air ( DHL , TNT , UPS ,Fedex ) , By sea (according to your requirements ).
