OM4 SC/PC Fiber Optic Pigtail with 0.9mm Diameter and 12 Colors for Low Insertion Loss Applications

Brand Name:	New Light
Model Number:	SC/ PC
MOQ:	1
Price:	0.2~10
Packaging Details:	OPP bag + carton box
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE , ISO , RoHS

Products Name:

SC / APC Optic Fiber Pigtail 12 Color 0.9 Mm 2 M Optic Fiber Jumping Cable

Connector Type:

SC( Can Be ST , FC , LC , MPO , MTRJ , MU )

Mode Type:

Multi Mode

Cable Color:

Purple (according To Your Request)

Cable Diameter:

0.9mm

Cable Length:

1 M (can Be Customized )

Insertion Loss:

≤ 0.3 DB

Return Loss:

≥ 40dB

Delivery Time:

2-7 Working Days

Payment Term:

30% Deposit In Advance , 70% Balance Paid Before Delivery

Supply Ability:

1000000

Highlight:

single mode fiber pigtails

fibre optic tails

Product Description

OM4 SC/PC Fiber Optic Pigtail - 1M Fiber Jumper Cables

Contact: WHATSAPP 008613534063703

Product Overview

High-performance OM4 SC/PC fiber optic pigtail cables available in 12 colors with 0.9mm diameter, designed for reliable optical connectivity solutions.

Key Features

Low insertion loss and high return loss
Excellent temperature stability
Superior repeatability and exchangeability
Outstanding mechanical endurance
Strict curing time and temperature control
Rigorous quality testing standards
ROHS compliant - Environmentally friendly
Customizable connector types, lengths, and packaging
100% new raw materials with comprehensive quality control

Application

Pigtails are specifically designed for splice applications when terminating outside plant cable, consisting of a connector and a specialized length for optimal performance.

Product Specifications

Product Name	OM4 SC/PC Fiber Optic Pigtail, 1M Fiber Jumper Cables 12 Colors 0.9mm
Model Number	Pigtail SC OM4
Diameter	0.9/2.0/3.0 mm
Connector Types	SC/LC/FC/ST/MPO
Cable Length	1, 2, 3 meters (Customizable)
Polishing	Precision polished
Material	LSZH/PVC
Form of Sale	OEM/ODM
Application	Connect optical transmitters, receivers, and terminal boxes
Custom Design	Available
Sample Lead Time	1-3 days
Certification	CE, ROHS
Primary Advantage	Low Insertion Loss, High Return Loss

Technical Parameters

Parameter	Unit	FC, SC, LC	ST, MU	MT-RJ, MPO	E2000
Insertion Loss (typical)	dB	≤ 0.3	≤ 0.3	≤ 0.3	≤ 0.3
Return Loss	dB	≥ 50	≥ 30	≥ 50	≥ 55
Operating Wavelength	nm	1310, 1550	1300(OM1)850	1310, 1550	1310, 1550
Exchangeability	dB	≤ 0.2	≤ 0.2	≤ 0.2	≤ 0.2
Vibration	dB	≤ 0.2	≤ 0.2	≤ 0.2	≤ 0.2
Operating Temperature	°C	-40 to 75	-40 to 75	-40 to 75	-40 to 75
Storage Temperature	°C	-45 to 85	-45 to 85	-45 to 85	-45 to 85
Cable Diameter	mm	φ 3.0, 2.0, 0.9	φ 3.0, 2.0, 0.9	φ 3.0, 2.0, 0.9	φ 3.0, 2.0

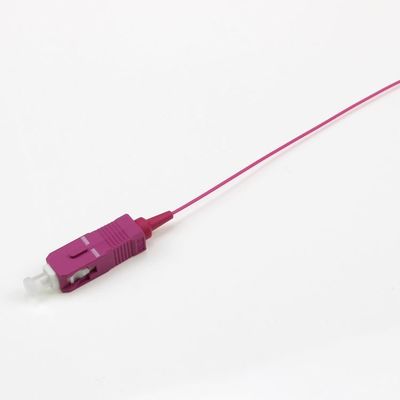

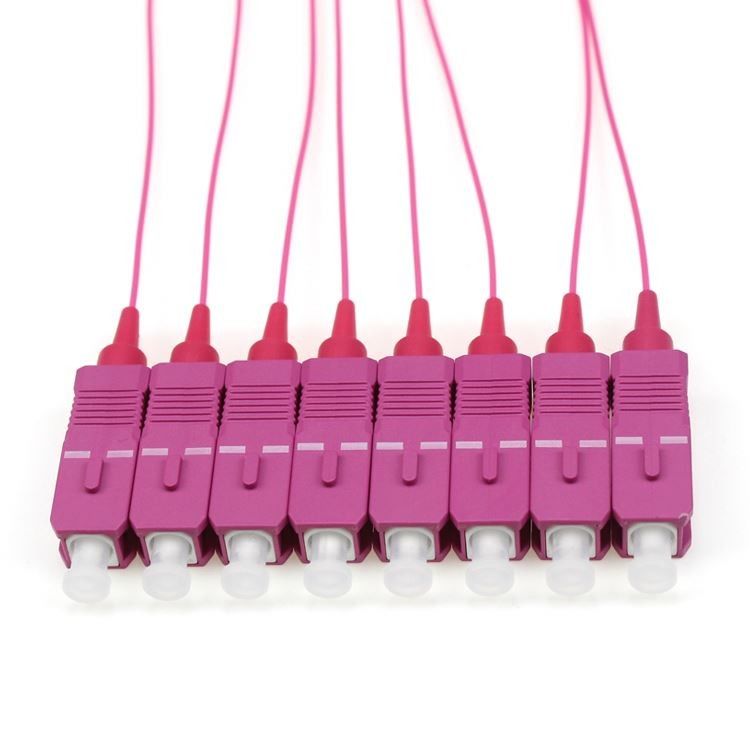

Product Images

Company Profile

New Light Optics Technology Limited is a high-tech company specializing in the research, development, manufacturing, sales, and service of optical communication products. Established in 2011, our factory has over 6 years of OEM and manufacturing experience serving customers worldwide.

Product Portfolio

Our comprehensive product line includes: Patch Cords/Pigtails, Patch Cord Cables, MTP/MPO Patch Cords, Fiber Optical Adapters, Attenuators, Fiber Optical Connectors, and more. Our products are widely used in telecommunications, fiber optical CATV, digital internet fiber transmission, data base stations, and related applications.

Quality Assurance

We maintain high-tech capabilities, professional R&D teams, advanced production equipment, and sophisticated engineering expertise. Our rigorous quality control system ensures products meet the highest standards, with distribution to over 60 countries including USA, Europe, Brazil, Middle East, and Asia, earning high reputation and positive customer feedback.

Payment Terms & Delivery

Payment Methods: T/T, L/C, Paypal, Western Union, Moneygram
Payment Terms: 30% deposit in advance, 70% balance paid before delivery
Packaging: International standard packaging (OPP bag + Carton Box)
Delivery Time: 2-7 working days (depending on quantity) after payment receipt
Warranty: 3 years after delivery
Shipping Methods: By air (DHL, TNT, UPS, Fedex) or by sea (as required)
