1U E2000 APC FTTH Cold - Rolled Sheet Cable distribution Box 19 Inch With Adaptor

Brand Name:	New Light
Model Number:	E2000 APC
MOQ:	1
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T, Western Union, MoneyGram, paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Material:

Cold-rolled Sheet

Port Type:

12/24/48/96 Core

Weight:

3.5 KG

Specification:

19 Inch

Connector Type:

E2000 APC

Packing:

Standard Export Package

Payment Term:

T/T , L/C , PAYPAL , WESTEN UNION , MONEY GRAM

Certificate:

CE , ISO , RoHS

ODM/ODM:

Acceptable

Color:

Black

Supply Ability:

1000000

Highlight:

outdoor fiber termination box

wdm in optical fiber

Product Description

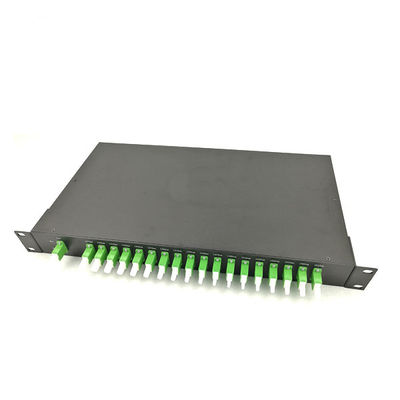

1U E2000 APC FTTH Cold - Rolled Sheet Cable distribution Box 19 Inch With Adaptor

WDM is the genaral name , it have CWDM,DWDM,FWDM .

19CH CWDM( coarse wavelength division multiplexer) mux demux module takes advantage of thin film coating and we provide full range of CWDM from 1270nm~1610nm,and which are equipped with non-flux bonding micro optics packaging.Our CWDM Mux Demux series offer up to 16Channel or even 18-Channel transmitted or multiplexing on a single fiber.

This is a kinds of CWDM type 1U distribution box , the connector type is E2000 APC . It also can be other connector type box as your requirements .

The length of inside cable also can be customized .

It have 4 channel , 8 channel and 16 channel CWDM as your requirements .

OEM/ODM are acceptable . If need to print your company logo , please let us know before we quote .

Nowadays package: 19" rack mount,ABS BOX,LGX Box are available in the market, Also custom designed are warmly welcomed.

Typical Advantage

1. Low Cost and Low Channel Granularity

2. Wide Pass Band

3. High Channel Isolation

3. Epoxy-free on Optical Path

4. Access Network

Typical Usage

1. Line Monitoring

2. WDM Network

3. Telecommunication

4. Cellular Application

5. Fiber Optical Amplifier

6. Access Network

Performance Paramenters

Parameter		4 Channel		8 Channel		16Channel
		Mux	Demux	Mux	Demux	Mux	Demux
Channel Wavelength (nm)		1270~1610/1271~1611
Channel Spacing (nm)		20
Channel Passband (@-0.5dB bandwidth (nm)		±7.5/±6.5
Insertion Loss (dB)		≤1.5		≤2.5		≤3.5
Channel Uniformity (dB)		≤0.6		≤1.0		≤1.5
Channel Ripple (dB)		<0.3
Isolation (dB)	Adjacent	N/A	>30 >40	N/A	>30 >40	N/A	>30 >40
	Non-adjacent
Insertion Loss Temperature Sensitivity (dB/℃)		<0.005
Wavelength Temperature Shifting (nm/℃)		<0.002
Polarization Dependent Loss (dB)		<0.1
Directivity (dB)		<0.1
Return Loss (dB)		>50
Maximum Power Handling (mW)		>45
Operating Temperature (℃)		300
Storage Temperature (℃)		-5~+75
Package dimension (mm)		L100 x W80 x H10			L141 x W115 x H18 L120 x W80 x H18

other type of WDM

1U E2000 APC FTTH Cold - Rolled Sheet Cable distribution Box 19 Inch With Adaptor 0

Ordering Information:

Step 1: Connector type: FC, SC, LC, ST
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm
