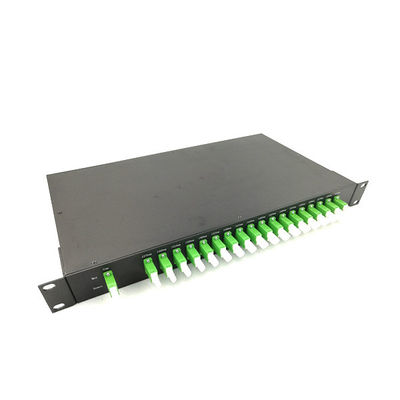

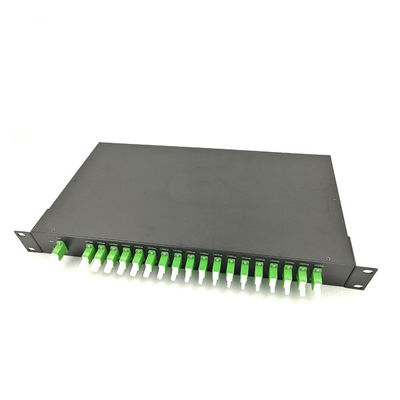

1U 19 Inch E2000 APC FTTH Cold-Rolled Sheet Fiber Optic Cable Distribution Box With Adaptor

Brand Name:	New Light
Model Number:	E2000 APC
MOQ:	1
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Material:

Cold-rolled Sheet

Port Type:

12/24/48/96 Core

Weight:

3.5 KG

Specification:

19 Inch

Connector Type:

E2000 APC

Packing:

Standard Export Package

Payment Term:

T/T , L/C , PAYPAL , WESTEN UNION , MONEY GRAM

Certificate:

CE , ISO , RoHS

ODM/ODM:

Acceptable

Color:

Black

Supply Ability:

1000000

Highlight:

outdoor fiber termination box

wdm in optical fiber

Product Description

1U E2000 APC FTTH Cold-Rolled Sheet Cable Distribution Box 19 Inch With Adaptor

This 1U rack-mountable distribution box is designed for FTTH (Fiber to the Home) applications, featuring E2000 APC connectors and cold-rolled sheet construction. The unit supports WDM (Wavelength Division Multiplexing) technology including CWDM, DWDM, and FWDM configurations.

Product Overview

Our 19-inch CWDM Mux Demux module utilizes advanced thin film coating technology with non-flux bonding micro optics packaging. Available in full wavelength range from 1270nm to 1610nm, these modules support up to 16-channel or 18-channel transmission over a single fiber.

This CWDM distribution box is available with E2000 APC connectors (customizable to other connector types) and features customizable internal cable lengths. Choose from 4-channel, 8-channel, or 16-channel configurations to meet your specific network requirements.

Customization & OEM Services

We offer comprehensive OEM/ODM services with custom packaging options including 19" rack mount, ABS boxes, and LGX boxes. Company logo printing is available upon request during the quotation process.

Technical Advantages

Cost-effective solution with low channel granularity
Wide pass band for optimal performance
High channel isolation for signal integrity
Epoxy-free optical path design
Ideal for access network applications

Typical Applications

Line monitoring systems
WDM network infrastructure
Telecommunication networks
Cellular applications
Fiber optical amplifiers
Access network deployments

Performance Parameters

Parameter	4 Channel	8 Channel	16 Channel
Channel Wavelength (nm)	1270-1610/1271-1611
Channel Spacing (nm)	20
Channel Passband (@-0.5dB bandwidth (nm))	±7.5/±6.5
Insertion Loss (dB)	≤1.5	≤2.5	≤3.5
Channel Uniformity (dB)	≤0.6	≤1.0	≤1.5
Channel Ripple (dB)	<0.3
Isolation (dB) - Adjacent/Non-adjacent	>30 / >40
Insertion Loss Temperature Sensitivity (dB/℃)	<0.005
Wavelength Temperature Shifting (nm/℃)	<0.002
Polarization Dependent Loss (dB)	<0.1
Directivity (dB)	<0.1
Return Loss (dB)	>50
Maximum Power Handling (mW)	>45
Operating Temperature (℃)	300
Storage Temperature (℃)	-5 to +75
Package Dimension (mm)	L100 x W80 x H10	L141 x W115 x H18	L120 x W80 x H18

Additional WDM Products

Ordering Information

Step 1: Connector type: FC, SC, LC, ST

Step 2: Ferrule End-face: PC, UPC, APC

Step 3: Type: Single-mode, Multimode

Step 4: Attenuation: 1-10dB (1dB step), 15, 20, 25, 30dB

Step 5: Mode: Fixed, Female & Male, In-line, Variable

Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm
