FTTTH Drop Cable 8 Core Single Mode Fiber Optic Cable with PVC Material for Indoor Use

Brand Name:	YOFC / Corning
Model Number:	single mode
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Products Name:

FTTTH Drop Cable Indoor 8 Core Single Mode Fiber Optic Cable PVC

Mode Type:

Single Mode

Cable Type:

G652D

Cable Material:

PVC/LSZH

Cable Diameter:

2.2(outer/inner)

Delivery Time:

2-7 Working Days After Payment Done

Warranty:

1 Year After Delivery

Payment Term:

T/T , PAYPAL,WESTERN UNION ,30%deposit , Balance Paid Before Delivery

Length:

Can Be Customized

Core:

8 Core

Supply Ability:

1000000

Highlight:

duplex fiber optic patch cable

simplex fiber optic cable

Product Description

FTTTH 8 Core Indoor Fiber Optic Cable PVC Single Mode Fiber Patch Cord

FTTTH drop cable indoor 8 core single mode fiber optic cable with PVC jacket designed for reliable fiber-to-the-home applications.

Product Overview

Our fiber optic cables are available in both indoor and outdoor types, including armored cable, drop cable, pull far cable, GYXTW, and more. We offer comprehensive customization options to meet your specific requirements.

Available Configurations

Cable diameters: 0.9mm, 2.0mm, 3.0mm, 3.6mm, 4.8mm, 7mm
Core quantities: Simplex, Duplex, 4 core, 6 core, 8 core, 12 core, 24 core, 48 core, and custom options

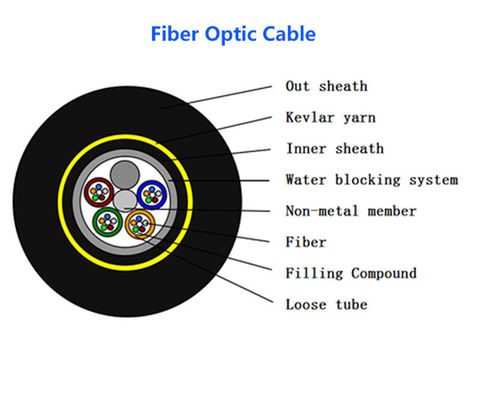

Cable Construction Details

Specification	Details
Number of Fiber	8 Core
Loose Tube Material	PBT
Tube Diameter	2.2mm (outer/inner)
Tube Filling	Tube Filling Compound
Steel Wire Size	0.8mm
Steel Wire Quantity	2
Outer Sheath Material	PE, HDPE, LDPE
Outer Sheath Diameter	1.8±0.2mm

Mechanical Characteristics

Core	Cable Diameter	Weight
1-8	8.0mm ±0.3mm	65kg/km ±10kg

Parameter	Long Term	Short Term
Minimum Bending Radius	10D	20D
Minimum Allowable Tensile Strength	1200N	1500N

Temperature Specifications

Operation Temperature: -40°C to +70°C
Installation Temperature: -20°C to +60°C
Storage Temperature: -40°C to +70°C

Fiber Specifications

Single Mode Options

9/125 - G652D
9/125 - G655
9/125 - G657A1, G657A2, G657B2, G657B3

Multimode Options

50/125 - OM2
62.5/125 - OM1
50/125 - OM3
50/125 - OM4
50/125 - OM5

Available Brands & Connectors

Fiber Brands: YOFC, Corning, OFS, and others
Connector Types: SC, LC, FC, ST, E2K, MU, MTRJ, MPO/MTP, SMA, DIN

Customization Options

Option	Available Choices
Cord Type	Simplex, Duplex, 4 cores, 6 cores, 12 cores, 24 cores, and more
Cable Diameter	0.9mm, 2.0mm, 3.0mm, and custom sizes
Cable Jacket	PVC, LSZH, OFNR, OFNP
Length	0.3m, 1m, 2m, 5m, 10m, 25m, 50m, 100m (custom lengths available)
