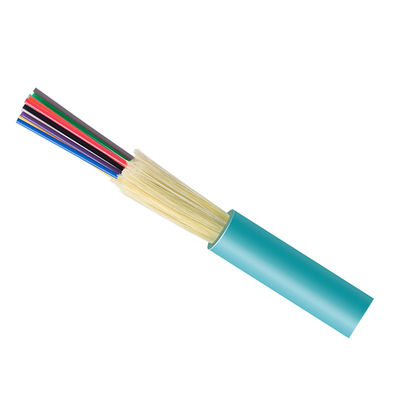

12 Core Multimode OM3 Fiber Optic Cable for FTTH Indoor Distribution with PVC/LSZH Material

Brand Name:	YOFC / Corning
Model Number:	12 core
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Products Name:

Indoor 12 Core G.652 Fiber Optic Cable 2000 M / ROLL PVC 0.9 Cable Inside

Mode Type:

Multimode

Cable Type:

Cable Material:

PVC/LSZH

Delivery Time:

2-7 Working Days After Payment Done

Warranty:

1 Year After Delivery

Payment Term:

T/T , PAYPAL,WESTERN UNION ,30%deposit , Balance Paid Before Delivery

Length:

Can Be Customized

Core:

12 Core

Supply Ability:

1000000

Highlight:

duplex fiber optic patch cable

fiber optic drop cable

Product Description

Fiber Optic 12 Core Multi Mode Optical Fiber FTTH Aqua OM3 Indoor Distribution Cable

This FTTH fiber optic cable features 12-core multimode aqua OM3 construction designed for indoor distribution applications, offering reliable performance and easy installation.

Key Features

900μm tight buffer fiber with aramid yarn and flame-retardant jacket
Excellent stripping performance of tight buffer fiber
Compatible with single-mode fiber and multimode fiber (50μm and 62.5μm)
High strength kevlar yarn reinforcement
Tight buffered design with round construction
Easy to strip and install

Applications

Indoor distribution systems
Communication equipment pigtails
Floor connections and cross-connects
Fiber to the Home (FTTH) deployments
Communication equipment service connections

Technical Specifications

Parameter	50/125μm	62.5/125μm	G652	G655
Attenuation @850nm	≤3.5dB/km	≤3.5dB/km
Attenuation @1300nm	≤1.5 dB/km	≤1.5 dB/km
Attenuation @1310nm			≤0.45dB/km	≤0.50dB/km
Attenuation @1550nm			≤0.30dB/km	≤0.50dB/km
Bandwidth @850nm	≥500MHz·km	≥200MHz·km
Bandwidth @1300nm	≥1000MHz·km	≥600MHz·km
Numerical Aperture	0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength			≤1260nm	≤1480nm

Cable Construction Details

Fiber Types:
Single mode: G652D, G655, G657A1, G657A2, G657B2, G657B3
Multimode: OM1, OM2, OM3, OM4, OM5

Fiber Brands:
YOFC, Corning, OFS

Connector Types:
SC, LC, FC, ST, E2K, MU, MTRJ, MPO/MTP, SMA, DIN

Cord Types:
Simplex, Duplex, 4 cores, 6 cores, 12 cores, 24 cores

Cable Diameter:
0.9mm, 2.0mm, 3.0mm

Cable Jacket:
PVC, LSZH, OFNR, OFNP

Standard Lengths:
0.3m, 1m, 2m, 5m, 10m, 25m, 50m, 100m (customizable)

Operating Temperature:
-20℃ to +70℃

Michelle Zhang

Phone / WhatsApp: 008615800028772

Email: sales01@newlightfiber.com
