Product Details:
|
Products Name: | FTTH 12 Fiber Multimode Customized Color OM3 Indoor Distribution Indoor Cable | Mode Type: | Multimode |
---|---|---|---|
Cable Type: | OM3 | Cable Material: | PVC/LSZH |
Delivery Time: | 2-7 Working Days After Payment Done | Warranty: | 1 Year After Delivery |
Payment Term: | T/T , PAYPAL,WESTERN UNION ,30%deposit , Balance Paid Before Delivery | Length: | Can Be Customized |
Core: | 12 Core | ||
High Light: | duplex fiber optic patch cable,fiber optic drop cable |

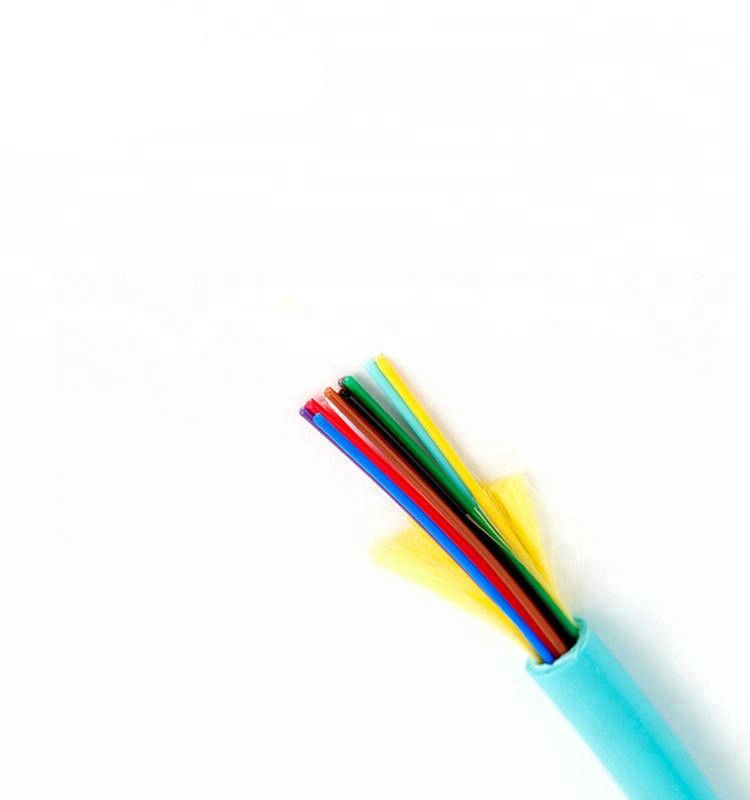

FTTH 12 fiber multimode customized color OM3 Indoor Distribution indoor Cable
Technical Parameters:
Cable Count | Out sheath Diameter | Innter sheath diameter | Weight |
Core | (mm) | (mm) | (kg) |
2 | 7 | 2 | 45 |
4 | 7 | 2 | 47 |
6 | 8.3 | 2 | 64 |
8 | 9.5 | 2 | 88 |
12 | 11.5 | 2 | 105 |
24 | 13.5 | 2 | 142 |
Characteristics:
Hight strength kevlar yarn member.
More tight buffered design.
Round construction.
Easy to strip.
Features:
1.900μm tight buffer fiber,aramid yarn,flame-retardant jacket;
2.Excellent stripping performance of tight buffer fiber;
3.Suited to SM fiber and MM fiber(50μm and 62.5 μm).
Application:
Adopted to indoor distribution.
As pigtail of communication equipment.
Suitable for communication equipment served.
Suitable for floor connection.
operate temperature :
-20℃~+70℃
Cable construction details
Fiber type | Single mode: (1)9/125-G652D (2)9/125-G655 (3)9/125-G657A1,G657A2,G657B2,G657B3 |
Multimode: (8)50/125-OM5 |
|
Fiber brand | YOFC, Corning, OFS... |
Connector type | SC, LC, FC, ST, E2K, MU, MTRJ, MPO/MTP, SMA, DIN |
Cord type | Simplex ,Duplex, 4cores, 6cores, 12cores, 24cores... |
Cable diameter | 0.9mm, 2.0mm, 3.0mm.... |
Cable jacket | PVC, LSZH, OFNR, OFNP |
Length(M) |
0.3m,1m,2m,5m,10m,25m,50m,100m ( can be customized )
|
