Double Armored Single Mode 12 Core GYTA53 Fiber Optic Cable for Communication

Brand Name:	YOFC / Corning
Model Number:	Armored cable
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Products Name:

Double Armored Plastic Optical Fiber Gyta53 Steel Wire Communication Fiber Optic Cable

Mode Type:

Single Mode

Cable Type:

G652D/G657A1/G657A2

Cable Material:

PVC/LSZH

Delivery Time:

2-7 Working Days After Payment Done

Warranty:

1 Year After Delivery

Payment Term:

T/T , PAYPAL,WESTERN UNION ,30%deposit , Balance Paid Before Delivery

Length:

Can Be Customized

Core:

12 Core

Supply Ability:

1000000

Highlight:

duplex fiber optic patch cable

fiber optic drop cable

Product Description

Double Armored Plastic Fiber Optic Patch Cables

Single Mode GYTA53 Steel Wire Communication Fiber Optic Cable

Product Description

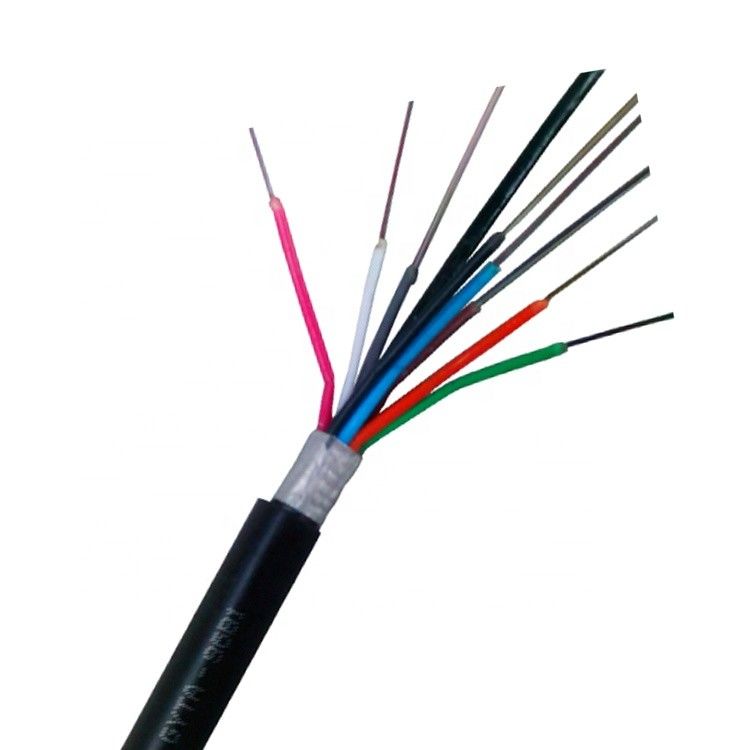

Double armored plastic optical fiber GYTA53 steel wire communication fiber optic cable features 250μm fibers positioned in high modulus plastic loose tubes filled with water-resistant compound. A central steel wire serves as the metallic strength member.

Tubes and fillers are stranded around the strength member into a compact circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the core and filled with compound for water protection.

The cable core is covered with a thin PE inner sheath. After PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Technical Parameters

Specification	G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20°C) @850nm			≤3.0 dB/km	≤3.0 dB/km
Attenuation (+20°C) @1300nm			≤1.0 dB/km	≤1.0 dB/km
Attenuation (+20°C) @1310nm	≤0.36 dB/km	≤0.40 dB/km
Attenuation (+20°C) @1550nm	≤0.22 dB/km	≤0.23 dB/km
Bandwidth (Class A) @850nm			≥500 MHz*km	≥200 MHz*km
Bandwidth (Class A) @1300nm			≥1000 MHz*km	≥600 MHz*km
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc	≤1260nm	≤1480nm

Key Features

900μm tight buffer fiber with aramid yarn and flame-retardant jacket
Excellent stripping performance of tight buffer fiber
Compatible with single mode fiber and multimode fiber (50μm and 62.5μm)

Applications

Indoor distribution systems
Communication equipment pigtails
Communication equipment service connections
Floor connection systems

Operating Temperature

-20℃ to +70℃

Cable Construction Details

Fiber Types:

Single mode: 9/125-G652D, 9/125-G655, 9/125-G657A1, G657A2, G657B2, G657B3
Multimode: 50/125-OM2, 62.5/125-OM1, 50/125-OM3, 50/125-OM4, 50/125-OM5

Fiber Brands: YOFC, Corning, OFS

Connector Types: SC, LC, FC, ST, E2K, MU, MTRJ, MPO/MTP, SMA, DIN
