GYFTY FRP 12 Core Single Mode Fiber Optic Cable for Underground Cable Ducting with G652D/G657A1/G657A2 Specifications

Brand Name:	YOFC / Corning
Model Number:	GYFTY
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Products Name:

GYFTY FRP 2 4 6 12 24 48 96 Core Single Mode Fiber Optic Cable For Underground Cable Ducting

Mode Type:

Single Mode

Cable Type:

G652D/G657A1/G657A2

Cable Material:

PVC/LSZH

Delivery Time:

2-7 Working Days After Payment Done

Warranty:

1 Year After Delivery

Payment Term:

T/T , PAYPAL,WESTERN UNION ,30%deposit , Balance Paid Before Delivery

Length:

Can Be Customized

Core:

12 Core

Supply Ability:

1000000

Highlight:

duplex fiber optic patch cable

fiber optic drop cable

Product Description

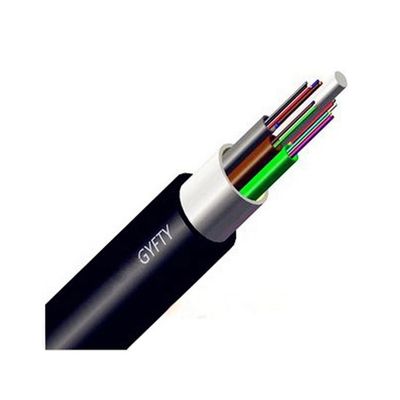

GYFTY FRP Single Mode Fiber Optic Cable

Underground Cable Ducting Single Mode Fiber Patch Cord available in 2, 4, 6, 12, 24, 48, 96 Core configurations

Product Overview

This Single Mode Optical Fiber Cable complies with ITU-T Recommendation G.652 specifications for non-dispersion shifted fiber optimized for 1310nm wavelength applications.

Technical Specifications

Parameter	G.652	G.655	50/125μm	62.5/125μm
Attenuation @850nm			≤3.0dB/km	≤3.0dB/km
Attenuation @1300nm			≤1.0dB/km	≤1.0dB/km
Attenuation @1310nm	≤0.36dB/km	≤0.4dB/km
Attenuation @1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth @850nm			≥500MHz/km	≥200MHz/km
Bandwidth @1300nm			≥1000MHz/km	≥600MHz/km
Numerical Aperture			0.2±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength	≤1260nm	≤1480nm

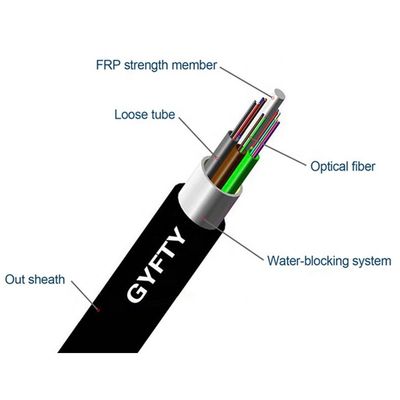

Key Features

Excellent mechanical and temperature performance with accurate excess fiber length
Critical protection to fibers with robust construction
Superior water blocking performance through multiple measures:
- Single steel wire central strength member
- Special water-blocking filling compound in loose tube
- 100% cable core filling

Application

Suitable for Duct and Aerial installations

Temperature Range

Storage Temperature: -40℃ to +70℃

Operating Temperature: -40℃ to +70℃

Additional Information

Available with a range of single mode or multimode fibers
Dimensions and raw materials can be customized according to customer requirements
Standard Reel Length: 3000m/reel (other lengths available on request)
