    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: YOFC / Corning
    Certification: ISO,RoHS , CE
    Model Number: GYFTY

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 meters
    Price: can be negotiated
    Packaging Details: opp bag + carton box
    Delivery Time: 2-7 working days
    Payment Terms: L/C, T/T, Western Union, MoneyGram,paypal
    Supply Ability: 50000 m / day
    Contact Now
    Detailed Product Description
    Products Name: GYFTY FRP 2 4 6 12 24 48 96 Core Single Mode Fiber Optic Cable For Underground Cable Ducting Mode Type: Single Mode
    Cable Type: G652D/G657A1/G657A2 Cable Material: PVC/LSZH
    Delivery Time: 2-7 Working Days After Payment Done Warranty: 1 Year After Delivery
    Payment Term: T/T , PAYPAL,WESTERN UNION ,30%deposit , Balance Paid Before Delivery Length: Can Be Customized
    Core: 12 Core

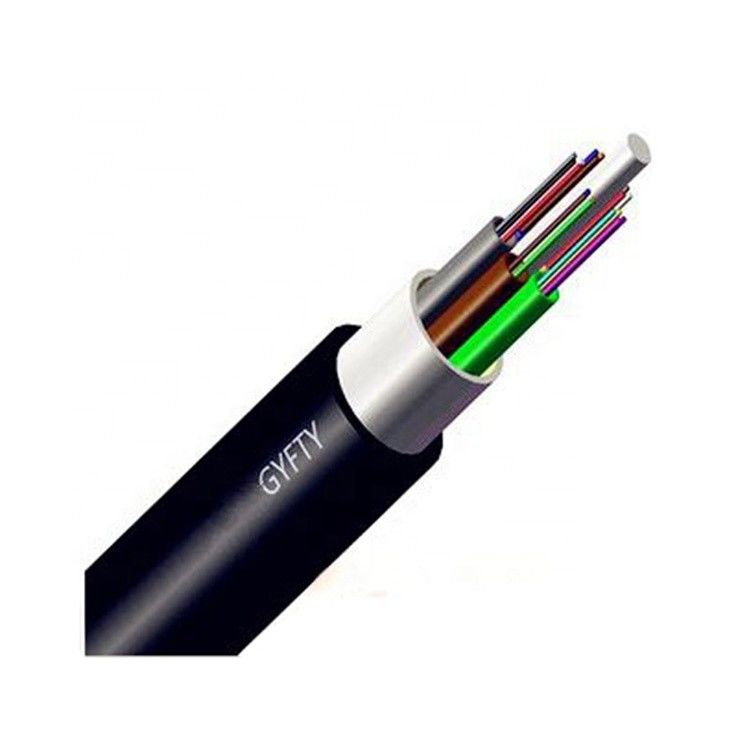

    GYFTY FRP 2 4 6 12 24 48 96 Core Single Mode Fiber Optic Cable For Underground cable ducting



    The Single mode optical fiber cable herein after referred to as the ''Cable'' comply with the requirements of this specification and generally meet ITU-T Recommendation G.652.



    G652 covers single-mode NDSF (non-dispersion shifted fiber) which is optimized for 1310nm wavelength.



    G.652 G.655 50/125μm 62.5/125μm
    Attenuation @850nm     ≤3.0dB/km ≤3.0dB/km
    (+20°C) @1300nm     ≤1.0 dB/km ≤1.0dB/km
      @1310nm ≤0.36dB/km ≤0.4dB/km
      @1550nm ≤0.22dB/km ≤0.23dB/km
    Bandwidth @850nm     ≥500MHz/km ≥200MHz/km
    (Class A) @1300nm     ≥1000MHz/km ≥600MHz/km
    Numerical Aperture     0.2±0.015NA 0.275±0.015NA
    Cable Cut-off ≤1260nm ≤1480nm





    Characteristics:



    1.Excellent mechanical and temperature

    performance guaranteed by the accurate excess Fiber length

    2.Critical protection to fibers

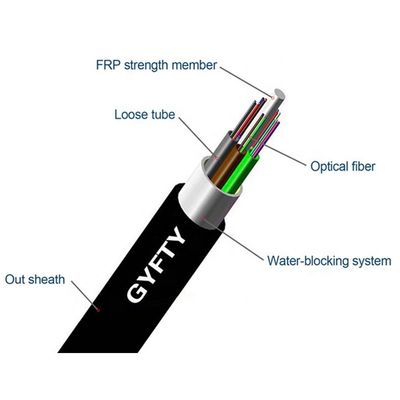

    3.The following measures are taken to ensure the

    water blocking performance of the cable.

    - Single steel wire used as the central strength member

    - Special water-blocking filling compound in the loose tube.

    - 100% cable core filling







    Application: Duct/Aerial





    Temperature Range:



    Storing temperature:-40℃ to +70℃

    Operating temperature:-40℃ to +70℃





    Note:



    1.Cables can be supplied with a range of single mode or multimode fibers.
    2.The dimensions and raw materials can be designed according to the demand of the customers.

    3.Standard Reel Length: 3000m/reel: other lengths available on request.



    Technical Parameters:



    G.652 G.655 50/125μm 62.5/125μm

    Attenuation

    (+20°C)

    @850nm     ≤3.0 dB/km ≤3.0 dB/km
    @1300nm     ≤1.0 dB/km ≤1.0 dB/km
    @1310nm ≤0.36 dB/km ≤0.40 dB/km
    @1550nm ≤0.22 dB/km ≤0.23dB/km



    Bandwidth (Class A)

    @850nm     ≥500 MHz·km ≥200 MHz·km
    @1300nm     ≥1000 MHz·km ≥600 MHz·km
    Numerical Aperture     0.200±0.015NA 0.275±0.015NA
    Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm











    operate temperature :

    -20℃~+70℃
