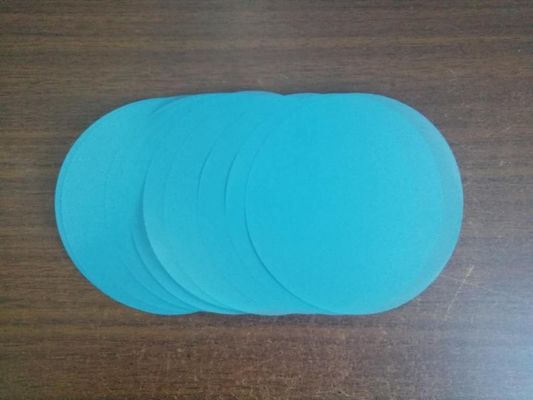

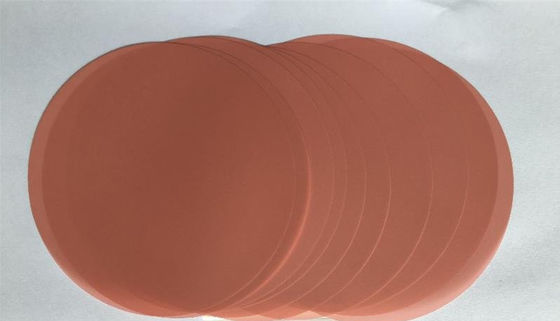

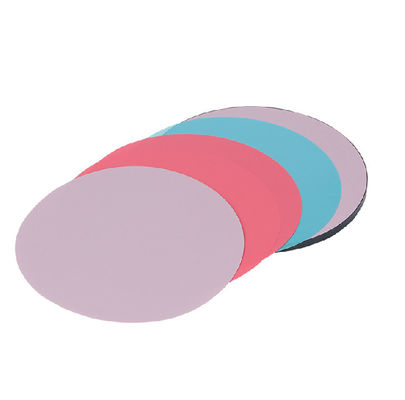

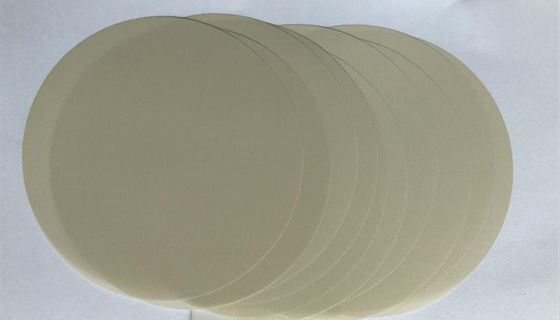

127mm Size Diamond Coated Fiber Optic Polishing Film for FTTH Networking with ADS Polishing

Brand Name:	New Light
Model Number:	NL
MOQ:	1
Price:	1~30
Packaging Details:	export packing
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Type:

D1-8AF

Diameter:

127mm

Color:

Pink / Grey/ Yellow / Beige /blue / Orange/ White

Delivery Time:

2-7 Working Days

Port:

Shenzhen,China

Specification:

1/3/9um / ADS

Supply Ability:

1000000

Highlight:

fiber optic tool kit

fiber optic testing tools

Product Description

127mm Size Fiber Optic Tools, FTTH Networking Diamond Fiber Optic Polishing Film

Professional diamond polishing films designed for FTTH networking applications, featuring ultra-precision flexibility and superior surface finishing for optical fiber connectors and components.

Product Specifications

Film Types	MIPOX 9μm, 3μm, 1μm polishing film, ADS polishing film (final procedure)
Available Grits	9μm, 3μm, 1μm, ADS, 15μm, 30μm, 50μm or customized options
Round Film Sizes	Φ70mm, Φ110mm, Φ127mm (5inch), Φ203mm (8inch)
Quadrate Film Sizes	114mm114mm, 152mm152mm (6inch), 228mm*228mm (9inch)
Ribbon Film Widths	1.6mm, 2.0mm, 2.5mm, 3.0mm, 3.2mm, 3.8mm, 5.0mm, 12.6mm, 25.4mm
Material Options	Silicon Carbide: 30μm and 15μm

Key Features & Benefits

Evenly-sprayed diamond particles on coated surfaces for consistent performance
Combines advantages of both fixed and dissociated polishing modes with high removal ratio and superior surface effects
Excellent intensity and flexibility, suitable for polishing on different facets and surfaces
Versatile application with dry, water, or oil polishing mediums
Positioned lapping and polishing capability to maximize abrasive material efficiency
Smooth polishing with minimal scratches and surface imperfections
No binder contamination on optical fibers during polishing process
Durable polishing rate compared to conventional polishing films
Economical operation with extended service life

Applications

These ultra-precision diamond polishing films are specifically engineered for lapping and precision polishing of optical fiber pins, semiconducting materials, metal rollers, and various industrial components requiring high-precision surface finishing.
