Durable LSZH Optical Fiber Patch Cord Fiber Jumper Cable with CPR Approval

Brand Name:	New light
Model Number:	002
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	Normal package

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Material:

PVC / LSZH / OFNR

Connector Type:

LC /UPC ; LC/APC

Fiber Type:

Singlemode / Multi Mode

Cable Diameter:

0.9/2.0/3.0

Cable Length:

1/1.5/2/3/5/10m ( Can Be Customized Into Any Length As Your Request )

Connector Mode Type:

UPC/APC/PC

Warranty:

3 Years

Cable Color:

Yellow / Orange/white/back/aqua

Material:

PVC / LSZH / OFNR

Connector Type:

LC /UPC ; LC/APC

Fiber Type:

Singlemode / Multi Mode

Cable Diameter:

0.9/2.0/3.0

Cable Length:

1/1.5/2/3/5/10m ( Can Be Customized Into Any Length As Your Request )

Connector Mode Type:

UPC/APC/PC

Warranty:

3 Years

Cable Color:

Yellow / Orange/white/back/aqua

Supply Ability:

1000000

Highlight:

single mode fiber optic cable

duplex fiber patch cord

Product Description

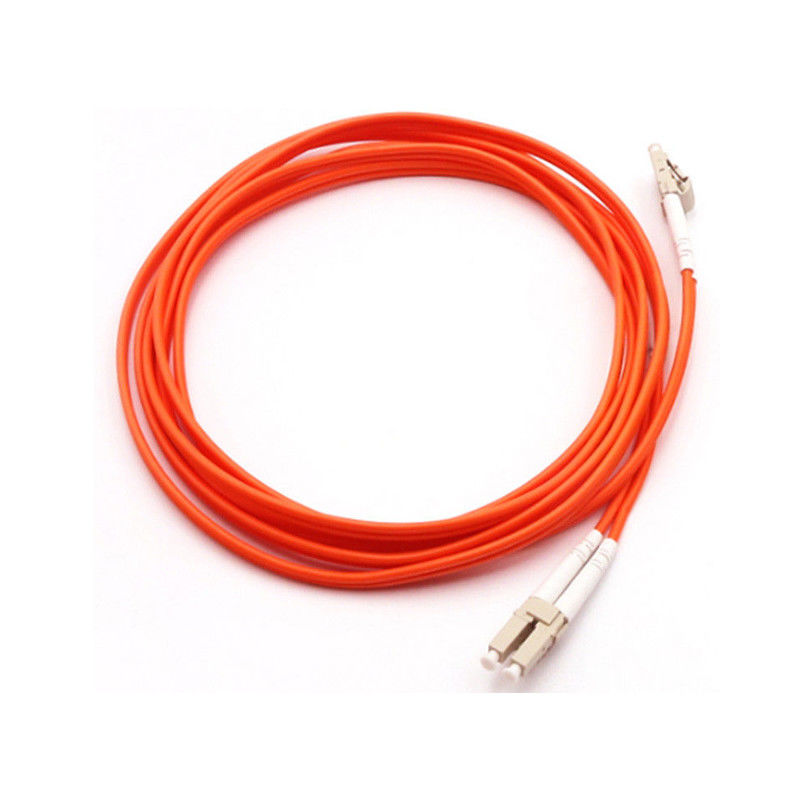

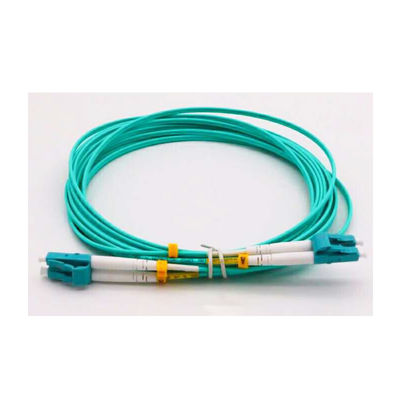

Durable Optical Fiber Patch Cord Fiber Jumper Cable LC To LC LSZH CPR Approval

Product Overview

Fiber Optic Patch Cords are essential components of optical networks, featuring same or different connectors installed on fiber optic cable ends. Our comprehensive collection offers various lengths and connectors to meet all deployment requirements.

Key Features

Low insertion loss and back reflection loss
Excellent exchangeability
Superior durability
High temperature stability
Compliant with IEC, TIA/EIA, NTT and JIS specifications

Technical Specifications

Connector Options

SC / LC / ST / FC / MPO / MU / MTRJ / SMA

Fiber Types & Construction

Cable Diameter: Φ 0.9/1.8/2.0/3.0mm

Fiber Types:

Single mode G652D (G657A1/G657A2)
Multi-mode 62.5/125 OM1
50/125 OM2 / OM3-150 / OM3-300 / OM4

Coating Material: PVC / LSZH

Length & Color Options

Available in any custom length to meet your requirements

Cable Colors:

2.0/3.0mm: Yellow, Orange, Aqua, Purple
0.9mm: Blue, Green, Brown, Grey, White, Red, Black, Pink, Yellow, Purple, Pink, Aqua

Core Configurations

Simplex / Duplex / 4 cores / 6 cores / 8 cores / 12 cores / 24 cores

Performance Parameters

Parameter	Unit	FC, SC, LC, Armoured	ST, MU	MT-RJ, MPO
		SM	MM	SM	MM	SM	MM
		PC	UPC	APC	PC	PC	UPC	PC	PC	UPC	PC
Insertion loss (typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.2	≤0.2
Return loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥30	≥45	≥50	≥35
Operating wavelength	nm	1310, 1550			1310, 1550	1310, 1550			1310, 1550
Exchangeability	dB	≤0.2			≤0.2	≤0.2			≤0.2
Vibration	dB	≤0.2			≤0.2	≤0.2			≤0.2
Operating temperature	°C	-40~75			-40~75	-40~75			-40~75
Storage temperature	°C	-45~85			-45~85	-45~85			-45~85
Cable diameter	mm	Φ3.0, Φ2.0, Φ0.9			Φ3.0, Φ2.0, Φ0.9	Φ3.0, Φ2.0, Φ0.9			Φ3.0, Φ2.0, Φ0.9

Applications

CATV Systems
Active Device Termination
Telecommunication Networks
Metro Networks
Local Area Networks (LANs)
Data Processing Networks
Test Equipment
Premise Installation
Wide Area Networks (WANs)

Quality Assurance

Our professional technical team ensures the stability of every product batch. Quality is fundamental to our enterprise survival.

Connector plug durability: Plugging and unplugging up to 1000 times

Insertion loss variation: ≤0.2 dB

All goods undergo comprehensive inspection before delivery to ensure 100% quality compliance.

Packaging & Shipping

Packaging Options:

PE packing with carton
Paper packing with carton
Custom packaging according to customer requirements

Payment Methods: T/T, PAYPAL, Western Union, Money Gram, L/C

Payment Terms: 30% deposit in advance, 70% balance paid before delivery
