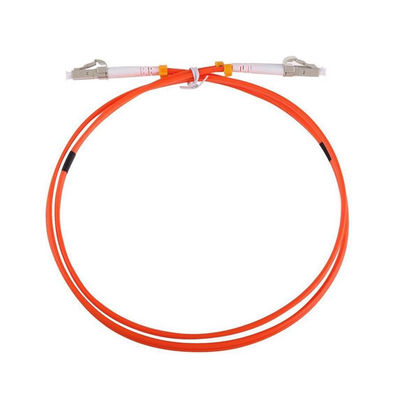

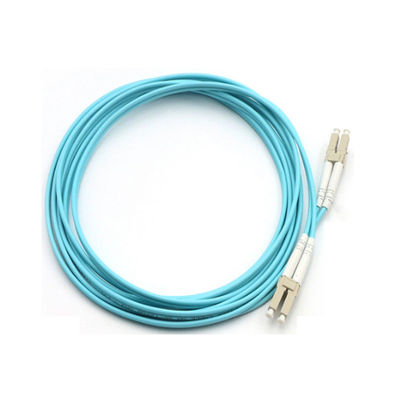

2.0mm PVC Single Mode Fiber Optic Patch Cord with 3 Years Warranty and LC/SC/ST/FC Connectors

Brand Name:	New light
Model Number:	002
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	Normal package

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Material:

PVC / LSZH / OFNR

Connector Type:

LC /UPC ; LC/APC

Fiber Type:

Singlemode / Multi Mode

Cable Diameter:

0.9/2.0/3.0

Cable Length:

1/1.5/2/3/5/10m ( Can Be Customized Into Any Length As Your Request )

Connector Mode Type:

UPC/APC/PC

Warranty:

3 Years

Cable Color:

Yellow / Orange/white/back/aqua

Material:

PVC / LSZH / OFNR

Connector Type:

LC /UPC ; LC/APC

Fiber Type:

Singlemode / Multi Mode

Cable Diameter:

0.9/2.0/3.0

Cable Length:

1/1.5/2/3/5/10m ( Can Be Customized Into Any Length As Your Request )

Connector Mode Type:

UPC/APC/PC

Warranty:

3 Years

Cable Color:

Yellow / Orange/white/back/aqua

Supply Ability:

1000000

Highlight:

single mode fiber optic cable

duplex fiber patch cord

Product Description

LC/SC/ST/FC Connector Single Mode Fiber Optic Cable

2.0mm PVC fiber optic patch cord with 3-year warranty

Product Overview

2.0mm PVC LC/SC/ST/FC connector fiber optic patch cord, 1.5M length

Key Features

Communication network cable
Excellent exchangeability
Superior durability
High temperature stability
Compliant with IEC, TIA/EIA, NTT and JIS specifications

Product Description

Fiber Optic Patch Cords are essential components of optical networks. They feature same or different connectors installed on fiber optic cable ends. Our comprehensive collection offers various lengths and connectors to meet all deployment requirements.

Technical Specifications

Connector Types: SC, LC, ST, FC, MPO, MU, MTRJ, SMA

Fiber Types: Single mode G652D (G657A1/G657A2), Multi-mode 62.5/125 OM1, 50/125 OM2/OM3-150/OM3-300/OM4

Cable Diameters: Φ0.9mm, Φ1.8mm, Φ2.0mm, Φ3.0mm

Coating Material: PVC, LSZH

Length: Custom lengths available

Cable Colors: 2.0/3.0mm: yellow, orange, aqua, purple; 0.9mm: blue, green, brown, grey, white, red, black, pink, yellow, purple, pink, aqua

Core Types: Simplex, duplex, 4 cores, 6 cores, 8 cores, 12 cores, 24 cores

Performance Parameters

Parameter	Unit	FC, SC, LC, Armoured	ST, MU	MT-RJ, MPO
Insertion loss (typical)	dB	≤0.3 / ≤0.2 / ≤0.3	≤0.2 / ≤0.3	≤0.2 / ≤0.3 / ≤0.2
Insertion loss (typical)	SM/MM	PC/UPC/APC / PC	PC/UPC / PC	PC/UPC / PC
Return loss	dB	≥45 / ≥50 / ≥60 / ≥30	≥45 / ≥50 / ≥30	≥45 / ≥50 / ≥35
Operating wavelength	nm	1310, 1550
Exchangeability	dB	≤0.2
Vibration	dB	≤0.2
Operating temperature	°C	-40~75
Storage temperature	°C	-45~85
Cable diameter	mm	Φ3.0, Φ2.0, Φ0.9

Applications

CATV

Active device termination

Telecommunication networks

Metro networks

Local Area Networks (LANs)

Data processing networks

Test equipment

Premise installation

Wide Area Networks (WANs)

Quality Assurance

Our professional technical team ensures product stability across all batches. Quality is fundamental to our business survival.

Connector plug durability: 1000+ plug/unplug cycles

Insertion loss variation: ≤0.2 dB

All goods undergo comprehensive inspection before delivery to ensure 100% quality compliance.

Packaging & Shipping

Packaging options include PE packing with carton, paper packing with carton, or custom packaging per customer request.

Payment methods: T/T, PayPal, Western Union, Money Gram, L/C

Payment terms: 30% deposit in advance, 70% balance paid before delivery
