| Brand Name: | New light |
| Model Number: | 002 |
| MOQ: | 10 pieces |
| Price: | USD |
| Packaging Details: | Normal package |
· Commutication network cable
· Good exchangeability
· Good Durability
· High temperature stability
· Compliant to IEC, TIA/EIA, NTT and JIS specifications

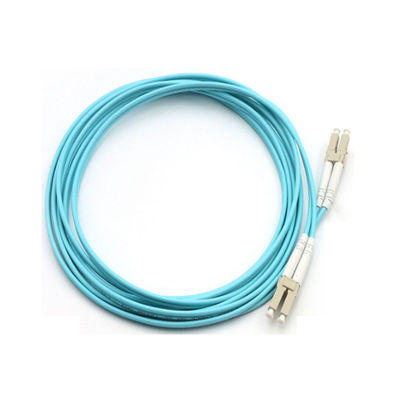

Fiber Optic Patch Cord is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Patch cord information
1. Connector type : SC / LC / ST / FC/ MPO /MU / MTRJ / SMA
2. Fiber Type : Φ 0.9/1.8 /2.0/3.0mm ,
Fiber type : Single mode G652D(G657A1/G657A2 )
Multi-mode 62.5/125 OM1
50/125 OM2 / OM3-150 / OM3-300 / OM4
Coating Material: PVC / LSZH
3. Length: can be any length as your requirements
4. Cable color : 2.0/3.0 mm : yellow / orange / aqua / purple
0.9mm : blue / green / brown / grey / white / red / black / pink / yellow / purple / pink / aqua
5. Core type : simplex / duplex / 4 cores / 6 cores / 8 cores / 12cores / 24cores
| Parameter | Unit | FC, SC, LC, Armoured | ST, MU | MT-RJ, MPO | |||||||
| SM | MM | SM | MM | SM | MM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 |
| Operating wavelength | nm | 1310, 1550 | 1310, 1550 | 1310, 1550 | |||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | |||||||
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | |||||||
| Cable diameter | mm | Φ3.0, Φ2.0, Φ0.9 | Φ3.0, Φ2.0, Φ0.9 | Φ3.0, Φ2.0, Φ0.9 | |||||||
1. CATV
2. Active device termination
3. Telecommunication networks
4. Metro
5. Local Area Networks (LANs)
6. Data processing networks
7. Test equipment
8. Premise installation
9. Wide Area Networks(WANs)
New light Optics Technology Limited is specialized in the development and manufacture of fiber optic products.Our company was founded in 2011 and has 6 years of manufacture experience.
Our main products are MTP/MPO,Patch Cord/Pigtails,Fiber Optical adapter, attenuator, PLC splitter ,WDM,1U Box... Etc. Our products widely used in Telecommunication Equipment ,Fiber Optical CATV, FTTH,Optical Distribution Network,Date Center Switches,etc..
Our products are exporting to USA,Europe,Brazil,Middle East,and Asia more than 60 countries and areas. We receive good reputation and lots of client from all around the world due to our high quality and good service .New light Optics Technology Limited is looking forward to cooperate with you !
We have a group of professional team technicians to ensure the stability of each batch of products, quality is the survival of our enterprises.
Connector plug : Plugging and unplugging uo to 1000 times
Insertion loss varivation <=0.2 dB
We will check all the goods before delivery it . ensure the quality are 100% past .
1. PE packing with carton.
2. Paper packing with carton
3. According to customer's request.
1. T/T/ , PAYPAL , WESTEN UNION , MONEY GRAM , L/C .
2. 30% deposit in advance , 70% balance paid before delivery .
