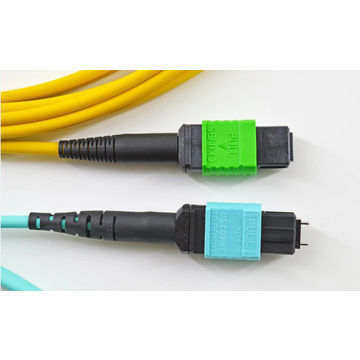

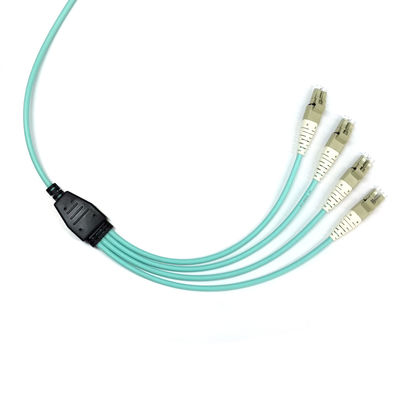

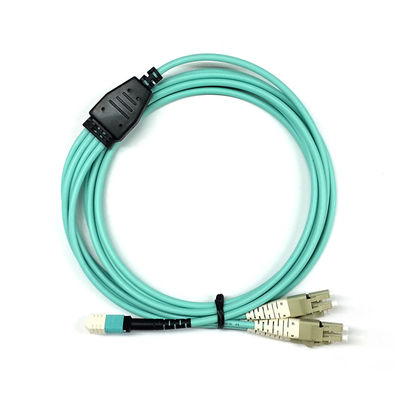

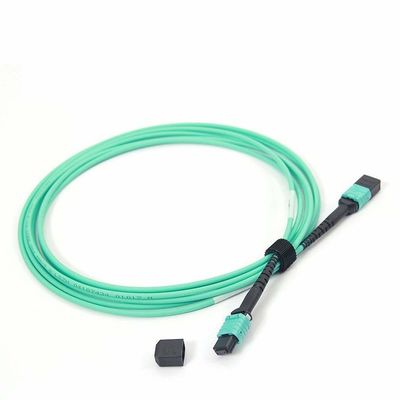

OM3 LSZH MPO Fiber Cable 8 Fibers Elite Breakout MPO Female to LC Type B

Brand Name:	New light
Model Number:	002
MOQ:	1~10000
Price:	6~15
Packaging Details:	Normal package

Detail Information

Product Description

Detail Information

Place of Origin:

shenzhen

Certification:

Material:

PVC / LSZH / OFNR

Connector Type:

Mpo /lc

Fiber Type:

Singlemode / Multi Mode

Cable Diameter:

0.9/2.0/3.0

Cable Length:

1/1.5/2/3/5/10m ( Can Be Customized Into Any Length As Your Request )

Connector Mode Type:

UPC/APC/PC

Warranty:

3 Years

Cable Color:

Yellow / Orange/white/back/aqua

Supply Ability:

100000 pieces per day

Highlight:

mpo to mpo cable

mpo fanout cable

Product Description

CPR 8 Fibers Elite Breakout MPO Fiber Cable - MPO Female to LC OM3 LSZH Type B

Product Overview

MPO Female to LC, OM3 LSZH Type B, 8 Fibers Elite Breakout Cable, 3m length

Key Features

Push-pull latching mechanism
Easy assembly with no crimp tool required
High precision guide pins for accurate alignment
Optimized for low loss and standard loss single-mode and multi-mode applications
Available in ruggedized round cable, oval cable, and bare ribbon options
Color-coded housings for easy identification of fiber type, polish type, and connector grade

Technical Specifications

Compliant with EC61754-7 & GR-1435-CORE standards. Modular design with plug-locking structure for easy testing, installation, removal, and adjustment.

Patch Cord Specifications

Connector Types: MPO, SC, LC, ST, FC, MU, MTRJ, SMA
Fiber Types: Single mode G652D (G657A1/G657A2), Multi-mode 62.5/125 OM1, 50/125 OM2, OM3-150, OM3-300, OM4
Cable Diameter: Φ 0.9/1.8/2.0/3.0mm
Coating Material: PVC / LSZH
Length: Custom lengths available
Cable Colors: Various options including yellow, orange, aqua, purple, blue, green, brown, grey, white, red, black, pink

Performance Specifications

Parameter	Single Mode	Multi-mode
Insertion Loss (Typical)	0.50dB (all fibers)	0.30dB (all fibers)
Insertion Loss (Maximum)	0.75dB (single fiber)	0.50dB (single fiber)
Return Loss	≥60dB (8° Angle Polish)	>20dB
Durability	<0.30dB change	<0.20dB change
Operating Temperature	-40°C to +80°C

Applications

CATV Active Device Termination Telecommunication Networks Metro Networks Local Area Networks (LANs) Data Processing Networks Test Equipment Premise Installation Wide Area Networks (WANs)

Quality Assurance

Our professional technical team ensures product stability and quality consistency. All products undergo rigorous testing including:

Connector plug durability: 1000+ plugging and unplugging cycles
Insertion loss variation: ≤0.2 dB
100% quality inspection before delivery

Packaging & Shipping

Packaging Options: PE packing with carton, Paper packing with carton, Custom packaging available
Payment Methods: T/T, PAYPAL, Western Union, Money Gram, L/C

Contact Us for More Products
WhatsApp: +8613534063703

About New Light Optics Technology Limited
Founded in 2011 with over 6 years of manufacturing experience, we specialize in fiber optic products including MTP/MPO, Patch Cords/Pigtails, Fiber Optical Adapters, Attenuators, PLC Splitters, WDM, and 1U Boxes. Our products are exported to over 60 countries worldwide and are widely used in telecommunications equipment, fiber optical CATV, FTTH, optical distribution networks, and data center switches.
