Product Details:
|
| Brand Name: | New Light | Fiber Type: | 0.9 |
|---|---|---|---|
| Connector Type: | SC APC | Operating Wave: | 1260-1650 |
| Mode Type: | Single Mode | OEM / ODM: | Acceptable |
| Fiber Length: | As Your Requirement | Warranty: | 3 Years |
| Delivery Time: | 2-10 Working Days After Receive Payment | Payment: | T/T , L/C , Paypal , Westen Union , Money Gram |
| Products Name: | Optic Fiber 1N ( 2 , 4 , 6 , 8 , 12 , 16 , 32 , 64) Micro Type Plc Splitter SC APC FTTH Fiber Splitter | ||
| High Light: | fiber optic plc splitter,single mode fiber splitter |
||

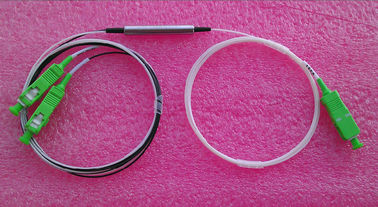

Optic fiber 1N ( 2 , 4 , 6 , 8 , 12 , 16 , 32 , 64) micro type plc splitter SC APC FTTH fiber splitter
Features: Applications:
.Low Insertion Loss .Access Networks
.Excellent Uniformity
.Compact Size
Specifications:
| Parameters | Unit | Specifications | |||||||||||||||||
| Type | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |||||||||||||
| Grade | P | A | P | A | P | A | P | A | P | A | P | A | |||||||
| Operating Wavelength | nm | 1260~1650 | |||||||||||||||||
| Insertion Loss | dB | 3.7 | 4 | 7.2 | 7.4 | 10.5 | 10.7 | 13.5 | 13.9 | 16.5 | 17 | 20.5 | 21 | ||||||
| Uniformity | dB | 0.4 | 0.6 | 0.8 | 1.2 | 1.7 | 2.5 | ||||||||||||
| PDL | dB | 0.2 |
0.3
|
0.4 | 0.5 | ||||||||||||||
| Return loss | dB | 55 | |||||||||||||||||
| Directivity | dB | 55 | |||||||||||||||||
| TDL | dB | 0.5 | |||||||||||||||||
| Fiber Type | mW | SMF-28e+ | |||||||||||||||||
| Storage Temperature | ℃ | -40~85 | |||||||||||||||||
| Operating Temperature | ℃ | -15~80 | |||||||||||||||||
| Package Size(inside) | mm | (L)40×(W)4×(H)4 | (L)50×(W)7×(H)4 | (L)60×(W)12×(H)4 | |||||||||||||||
1. ALL specification include the effect of all states of polarization.
2. Values referenced without connectors,insertion loss for a connector-pair is
0.20dB to 0.30dB.
3. Package dimension excludes rubber boot.
Optic fiber 1N ( 2 , 4 , 6 , 8 , 12 , 16 , 32 , 64) micro type plc splitter SC APC FTTH fiber splitter
Order information
PLC Splitter Type-----Input/Output Count-----Input Connector Type-----Input Tube Type------Input Tube Length------Output Connector Type-----Output Tube Type-----Output Tube Length
3. Feature
4. Compliance
5. Specifications
Table 1 – 1×N PLC Splitter
Notes:
preferred carrier, please notify us in advance.
Delivery and payment
1. T/T/ , PAYPAL , WESTEN UNION , MONEY GRAM , L/C .
