Good price online

products details

Home > Products >
Fiber Optic Patch Panel
>
1U rack mount FHD fiber optic patch panel , holds up to 4x MTP-8 cassettes
All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket
Contact Us
Mrs. Alice
sales03@newlightfiber.com
0086-13534063703
wechat 86 13534063703
Contact Now
Name
  • Name
  • Name
  • Name
  • Name
  • Name

1U rack mount FHD fiber optic patch panel , holds up to 4x MTP-8 cassettes

Brand Name: NL
Model Number: 1U
MOQ: 1~10000
Price: 10~100
Packaging Details: Nomal packing 495*260*55mm
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001
Material:
SPCC (black Coating)
Standard:
1U
Installation:
Standard EIA 19" Rack Rails
Enclosure Type:
Rack Mountable
No. Of Rack Spaces:
1U
Fiber Count:
96core LC
Dimensions (HxWxD):
430*362.4*44mm
Material Thick:
1.2T
Patch Pannel:
SC/LC/FC/ST
Adaptor:
SC/LC/FC/ST/E2000/MPO/MTP
Combination:
Pull-type Box
Apply To:
Data Center & Cloud Computing
Supply Ability:
1000set per day
Highlight:

odf optical fiber distribution frame

,

odf fiber optic patch panel

Product Description

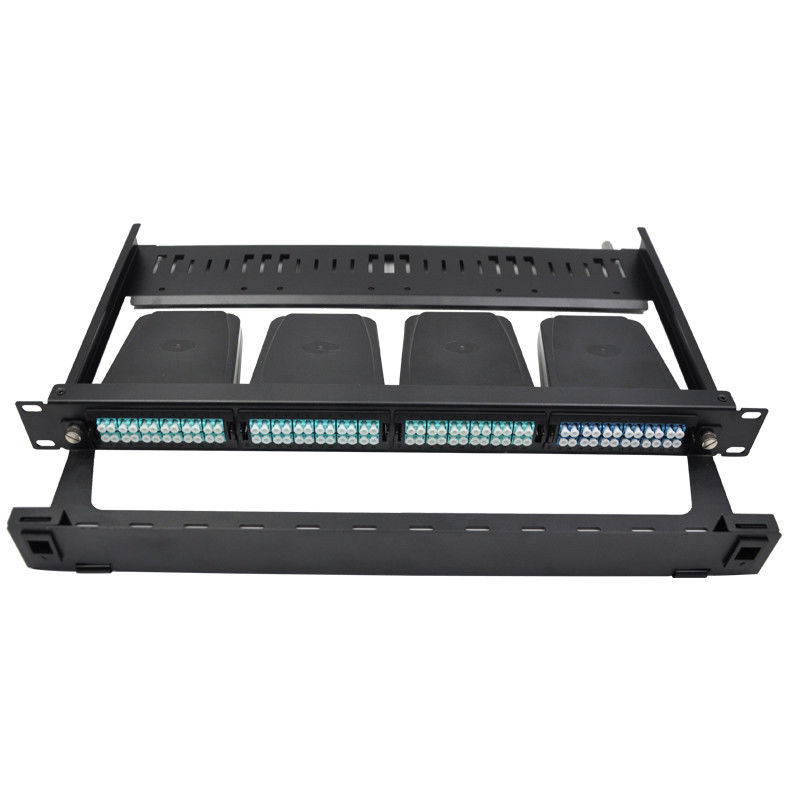

1U rack mount FHD fiber optic patch panel , holds up to 4x MTP-8 cassettes





Description:



The removable front panels chassis is a 19 inch 1U sliding panel in two parts: one sliding chassis and one front panel, which receives the optical adaptors.The flexibility of its two piece construction allows you maintain a stock of the chassis and then attach a suitable front panel as required.



1U rack mount FHD fiber optic patch panel , holds up to 4x MTP-8 cassettes 0

Features:


1. Standard size, light weight and reasonable structure
2. FC, SC, ST, LC adapter patch panel for option
3. Front access panel design for easy operation
4. Snap in Lock Design for easy change
5. Suitable for 19’’ standard optic distribution cabinets
6. Max. capacity 24 fibers
7. 4 fiber cable entry ports at rear side
8. Materials: SPCC (black coating)





Aplication :



SPCC ( black coating ) Fiber optic distribution frame fiber enclosure provide an interconnect or cross- connect between backbone horizontal cable and active equipment while using minimum rack space in a frame or cabinet. Enclosures allow for easy installation of pre-terminated solutions, and are ideal for ultra high-density fiber applications in data centers, equipment rooms, and central offices.



1U rack mount FHD fiber optic patch panel , holds up to 4x MTP-8 cassettes 1





Product Specifications :



No. of Rack Spaces 1U
Fiber Count 96core LC ; 48core SC
Enclosure Type Rack Mountable
Material S P C C ( B l a c k c o a t ing)
Installation Standard EIA 19'' Rack Rails
Dimensions (HxWxD) 430*362.4*44mm





Standards Compliance :





TIA/EIA-568-C.3





Application in network layout :

1U rack mount FHD fiber optic patch panel , holds up to 4x MTP-8 cassettes 2



Create a modular cabling environment within your data center to accelerate application deployment, reduce costs, and streamline fiber cabling operations.



Technical Specifications



Parameter
Model Singlemode Multimode
Polish PC, APC PC
Insertion loss Standard ≤0.7dB ≤0.6dB
Elite low loss ≤0.35dB ≤0.35dB
Return loss PC≥50dB; APC≥60dB ≥30dB
Test wavelength 1310/1550nm 850/1310nm
Durability (500 Matings) ≤0.2dB
Operating temperature -20℃~+70℃
Storage temperature -40℃~+85℃
Fire resistant IEC 60794-2-30
Fiber type OS2, OM1, OM2, OM3, OM4
Cord type 8, 12, 24, 48, 72, 96, 144 cores
Cable diameter 3.0mm (8 or 12 or 24 core), 5.5(24core), or customized
Cable jacket LSZH, OFNR, OFNP
Length(M) 0.3m, 1m, 2m, 5m, 10m, 25m, 50m, 100m














Tags:

fiber optic accessories

fiber optic termination panel

fiber optic parts and accessories
