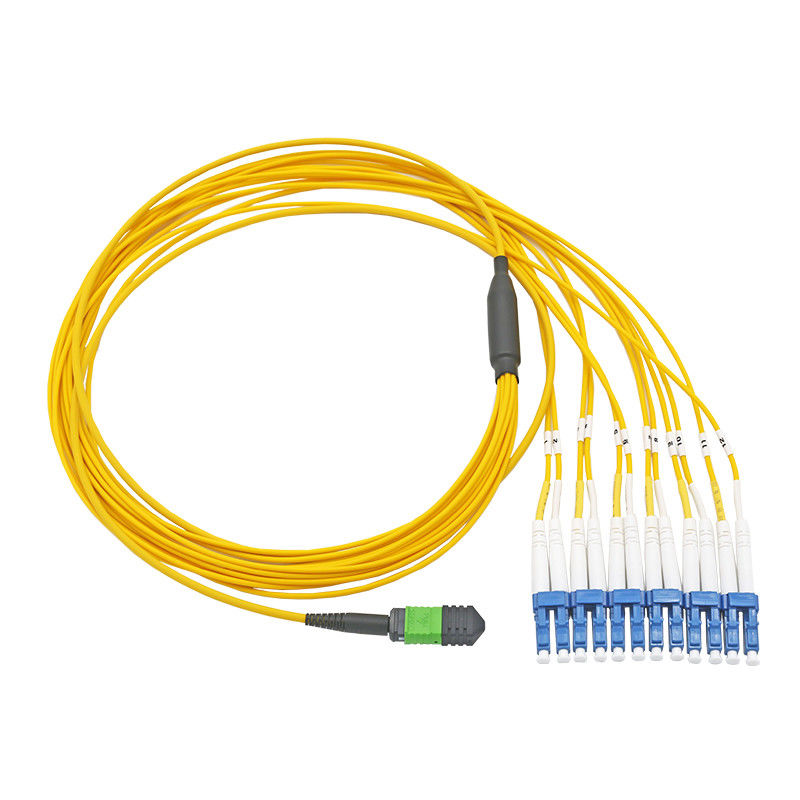

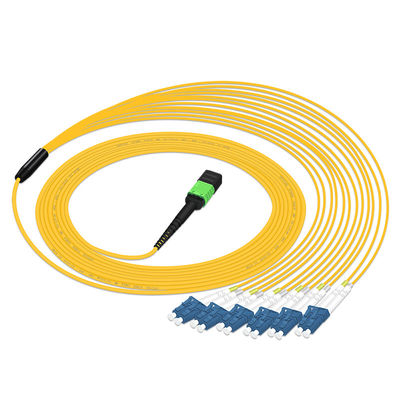

G652D LSZH Single Mode 12 Core MPO MTP Cable for High-Density Fiber Optic Networks

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

G652D LSZH Single Mode 12 Core MPO MTP Cable for High-Density Fiber Optic Networks

Brand Name:	New Light
Model Number:	MPO / MTP - 12*LC
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP

Material:

Mode Type:

Single Mode

Core Type:

12core

Cable Color:

Yellow

Length:

Can Be Customized

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Products Name:

8 / 12 / 24 Core G652D LSZH Fiber Optical MPO / MTP Patch Cord / MPO Trunk Cable

Supply Ability:

500 pcs per day

Highlight:

mpo fiber cable

mpo to mpo cable

Product Description

G652D LSZH Single Mode Duplex Fiber Optic Cable MPO/MTP Trunk Cord

8/12/24 core G652D LSZH Fiber Optical MPO/MTP Patch Cord / MPO Trunk Cable

Compliant with IEC61754-7 & GR-1435-CORE standards. Features modular design with plug-locking structure for easy testing, installation, removal, and adjustment. Single MTP/MPO connectors accommodate 12 or more fibers, with 1U height wiring space supporting up to 96 LC optical interfaces, optimizing cabinet and rack space while simplifying cable management.

Available in male and female connector options with precise pin-pin positioning for high stability. Multi-core ferrule design offers compact size, high speed, and high capacity to meet demanding fiber optic communication system requirements. Highly scalable for future network infrastructure, supporting Ethernet and Fiber Channel at 10/100-1Gbps speeds.

Technical Specifications

Parameter	Specification
Product	8/12/24 core G652D LSZH Fiber Optical MPO/MTP Patch Cord / MPO Trunk Cable
Connector	MPO (F or M) \| MPO (F or M)
Operation Temperature	-40°C to +80°C
Storage Temperature	-40°C to +85°C
Insertion Loss	SM: ≤0.75dB (standard), ≤0.35dB (typical); MM: ≤0.50dB (standard), ≤0.35dB (typical)
Return Loss	SM: ≥60dB; MM: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 MT fiber
Connector Type (Other End)	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Mode	Single-mode (G652, G655, G657), Multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Type	250um ribbon fiber, ribbon cable, bundle fiber optic cable

Three polarity methods (Type A, Type B, and Type C) ensure proper bi-directional allocation for optimal performance.

Type A Straight-Through MPO Trunk Cable

Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x A to A Duplex Patch Cable

Type B Cross MPO Trunk Cable

Key-Up to Key-Up Adapters and 2 x A to A Duplex Patch Cable

Type C Cross Pair MPO Trunk Cable

Key-Up to Key-Down Adapters and 2 x A to A Duplex Patch Cable

Operating Temperature

-40°C to +80°C

Applications

Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication systems
Telecommunications

Packaging

Products are securely packaged in OPP bags and carton boxes to ensure protection during delivery.

Delivery Options

Available via air or sea freight, determined by quantity and specific requirements.

Payment Terms

Payment Methods: T/T, L/C, PayPal, Western Union, MoneyGram
Terms: 30% deposit in advance, balance paid before delivery
Price Terms: EXW, FOB, CIF, CFR, Door to Door

Additional Products

We offer a comprehensive range of fiber optic products including optical patch cords, pigtails, adaptors, attenuators, distribution boxes, and Quick Assembly connectors. Contact us for our complete product catalog.

Contact Us: WhatsApp +8613534063703
