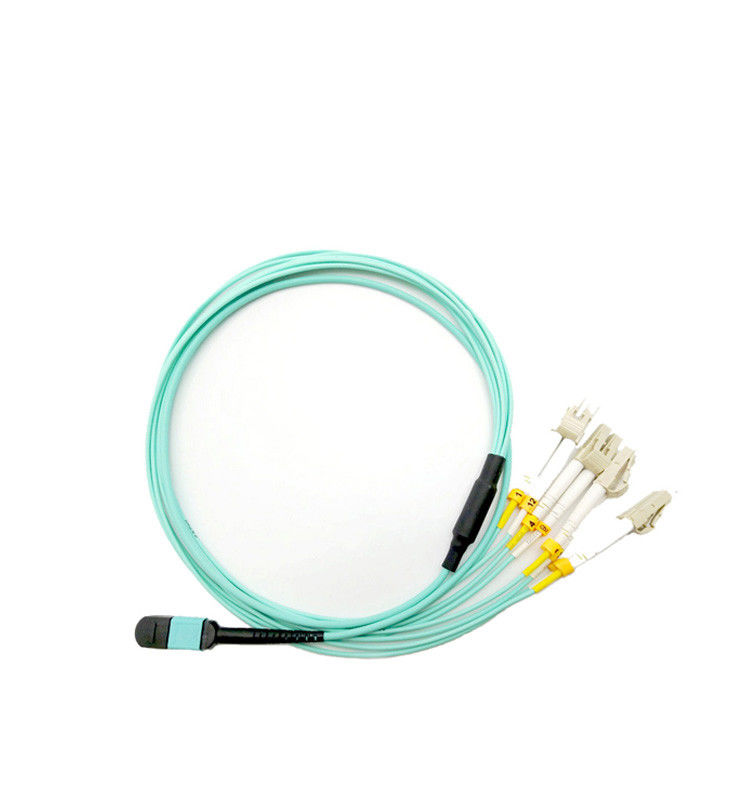

12 Core MPO MTP Cable OM3 Fiber Optical Mpo To Lc Breakout Cord CE ISO Certificated

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

12 Core MPO MTP Cable OM3 Fiber Optical Mpo To Lc Breakout Cord CE ISO Certificated

Brand Name:	New Light
Model Number:	MPO / MTP - 12*LC
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	L/C, T/T, Western Union, MoneyGram , paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP

Material:

Mode Type:

Single Mode

Core Type:

12core

Cable Color:

Yellow

Length:

Can Be Customized

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Products Name:

12 Core OM3 Fiber Optical MPO / MTP Patch Cord Mpo To Lc Breakout Cable

Supply Ability:

500 pcs per day

Highlight:

mpo fiber cable

mpo to mpo cable

Product Description

12 core OM3 Fiber Optical MPO / MTP Patch cord mpo to lc breakout cable

What is the MPO/MTP test requests?

a.Endface request:

400 X	Defect description		Allow quantity
Fiber(9um,50um,62.5um)	White scratches	≤3um	No limited
	Spot	≤2um	5 PCS
	Defect	/	No allowed
Cladding (62.5-125um)	White scratches	≤3um	No limited
		≤5um	1 PCS
	Black scratches	≤3um	2 PCS
	Black spot	≤2um	No limited
		≤5um	3 PCS
	Defect	≤2um	Around no limited
		≤15um	Total length is less than the side length 1/4
	Plastic ring	/	No limited

b.Performance:

MPO/MTP		SM standard ferrule	SM low loss ferrule	MM standard ferrule	MM low loss ferrule
IL Loss	Typical	0.35dB	0.20dB	0.35dB	0.20dB
	Max	0.75dB	0.35dB	0.65dB	0.35dB
RL		APC≥50dB		≥ 25dB	≥ 35dB
		PC ≥ 40dB
Repeatability		≤0.30dB(Plug more than 500 times)		0.30dB(Plug more than 1000 times)
Interchangeability		≤0.30dB(With either a matching connector)
Tensile strength		≤0.30dB(Maximum tension 66N)
Shock		≤0.30dB(10~55Hz)
Temperature Range		-40°C ~ +75°C

c.Interference indicators:

MPO/MTP Connector	Dimension 3D Test
Radius of Curvature	X ≥2000mm ,Y ≥50mm
Fiber Height	1000~4000 nm
Endface Angle	X ±0.3° ,Y ±0.3°
Core Dip	±300nm

d.Length Tolerance:

Length(M)	Tolerance
≤10	+ 10CM
10<L≤30	+ 15CM
>30	+ 10%

IEC61754-7 & GR-1435-CORE compliant.

Modular design, plug-locking structure,easy for test,Install,remove and adjust. Usually,single MTP / MPO connectors typically can accommodate 12 or more fiber, 1U height wiring space can accommodate up to 96 LC optical interface, Section. Saving Cabinet and rack space, easy cable management Kinds of fiber,cable available,to meet different customer needs.

Can choice of male,female.Achieve precise positioning with the adapter connected via Pin-pin positioning function,high stability.
Multi-core ferrule, small size, high speed and high capacity to meet the needs of optical fiber communication systems and high-efficiency high-density interconnect wiring. For future network infrastructure, highly scalable, supports Ethernet and Fiber Channel requirements 10/100-1Gbps.

Technical Parameter

Item	Technical Parameters
Product	12 core OM3 Fiber Optical MPO / MTP Patch cord mpo to lc breakout cable
Connector	MPO (F or M)	MPO (F or M)
Operation Temperature	-40°C ~ +80°C
Storage Temperature	-40°C ~ +85°C
Insertion Loss	SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value); MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);
Return Loss	SM:≥60dB; MM:≥35dB
The MPO end type	Male: with guide pin; Female: without guide pin
Fiber count	8,12&24 MT fiber
Connector type of the other end	MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000
Fiber mode	Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber cable type	250um ribbon fiber,ribbon cable,Bundle fiber optic cable

The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

Type A Straight-Through MPO Trunk Cable:
Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x A to A Duplex Patch Cable.

12 Core MPO MTP Cable OM3 Fiber Optical Mpo To Lc Breakout Cord CE ISO Certificated 0

Type B Cross MPO Trunk Cable:
Key-Up to Key-Up Adapters and 2 x A to A Duplex Patch Cable.

12 Core MPO MTP Cable OM3 Fiber Optical Mpo To Lc Breakout Cord CE ISO Certificated 1

Type C Cross Pair MPO Trunk Cable:
Key-Up to Key-Down Adapters and 2 x A to A Duplex Patch Cable.

12 Core MPO MTP Cable OM3 Fiber Optical Mpo To Lc Breakout Cord CE ISO Certificated 2

Using temperature

-40° ~ +80°

Application :

Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication

Pakcing :

We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .

Delivery :

We can delivery it by air and by sea . it is according to your quantity and requirements .

Payment :

Payment term : T/T , L/C , PAYPAL / WESTERN UNION / MONEYGRAM . 30% deposit in advance . balance paid before delivery .

Price term : EXW , FOB , CIF , CFR . DOOR TO DOOR

More products :

We have optical patch cord , pigtail , adaptor , attenuator , distribution box , Quick Assmembly connector .etc . If you need more products or catalogue , you can feel free to contact us
