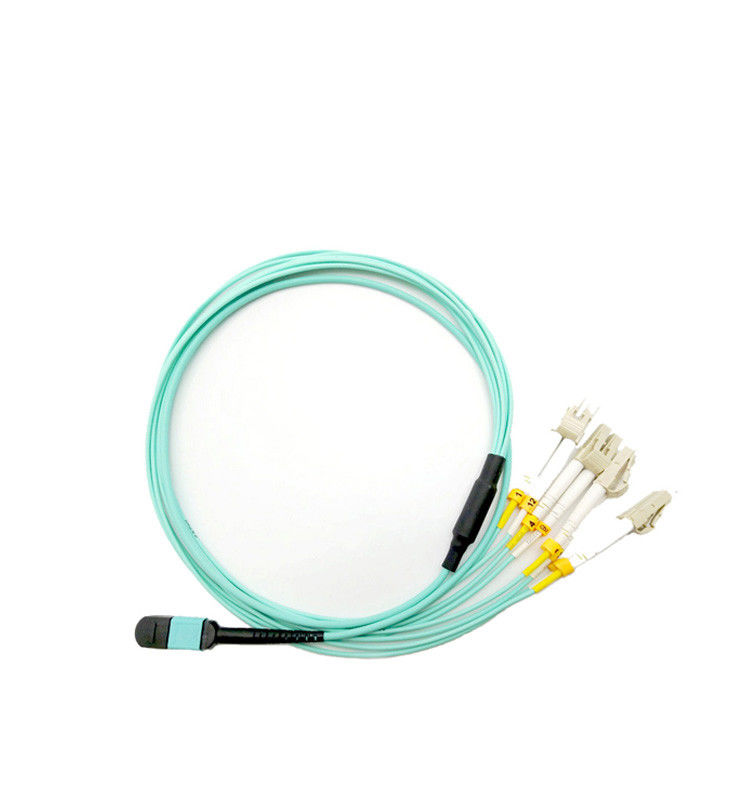

12 Core OM3 Fiber Optical MPO MTP Cable to LC Breakout Cord with CE ISO Certification

Brand Name:	New Light
Model Number:	MPO / MTP - 12*LC
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP

Material:

Mode Type:

Single Mode

Core Type:

12core

Cable Color:

Yellow

Length:

Can Be Customized

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Products Name:

12 Core OM3 Fiber Optical MPO / MTP Patch Cord Mpo To Lc Breakout Cable

Supply Ability:

500 pcs per day

Highlight:

mpo fiber cable

mpo to mpo cable

Product Description

12 Core MPO MTP Cable OM3 Fiber Optical MPO to LC Breakout Cord

High-performance 12-core OM3 fiber optical MPO/MTP to LC breakout patch cord with CE and ISO certification. Designed for high-density data center applications and fiber optic communication systems.

Product Overview

This MPO/MTP to LC breakout cable features modular design with plug-locking structure for easy testing, installation, removal, and adjustment. Single MTP/MPO connectors accommodate 12 or more fibers, with 1U height wiring space supporting up to 96 LC optical interfaces, significantly saving cabinet and rack space while simplifying cable management.

Quality Specifications

Endface Requirements:

Component	Defect Type	Size	Allowable Quantity
Fiber (9um, 50um, 62.5um)	White scratches	≤3um	No limit
	Spot	≤2um	5 pieces
	Defect	/	Not allowed
Cladding (62.5-125um)	White scratches	≤3um	No limit
	White scratches	≤5um	1 piece
	Black scratches	≤3um	2 pieces
	Black spot	≤2um	No limit

Performance Specifications:

Parameter	SM Standard Ferrule	SM Low Loss Ferrule	MM Standard Ferrule	MM Low Loss Ferrule
IL Loss Typical	0.35dB	0.20dB	0.35dB	0.20dB
IL Loss Max	0.75dB	0.35dB	0.65dB	0.35dB
RL (APC≥50dB, PC≥40dB)	≥25dB	≥35dB	≥35dB	≥35dB
Repeatability	≤0.30dB (500+ plugs)		≤0.30dB (1000+ plugs)
Interchangeability	≤0.30dB (with matching connector)
Tensile Strength	≤0.30dB (maximum tension 66N)
Shock	≤0.30dB (10~55Hz)
Temperature Range	-40°C ~ +75°C

Interference Indicators:

Parameter	Specification
Radius of Curvature	X ≥2000mm, Y ≥50mm
Fiber Height	1000~4000 nm
Endface Angle	X ±0.3°, Y ±0.3°
Core Dip	±300nm

Length Tolerance:

Length (M)	Tolerance
≤10	±10CM
10<L≤30	±15CM
>30	±10%

Polarity Methods

Type A Straight-Through MPO Trunk Cable:

Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x A to A Duplex Patch Cable

Type B Cross MPO Trunk Cable:

Key-Up to Key-Up Adapters and 2 x A to A Duplex Patch Cable

Type C Cross Pair MPO Trunk Cable:

Key-Up to Key-Down Adapters and 2 x A to A Duplex Patch Cable

Technical Parameters

Item	Technical Parameters
Product	12 core OM3 Fiber Optical MPO / MTP Patch cord mpo to lc breakout cable
Connector	MPO (F or M) \| MPO (F or M)
Operation Temperature	-40°C ~ +80°C
Storage Temperature	-40°C ~ +85°C
Insertion Loss	SM: ≤0.75dB (standard), ≤0.35dB (typical); MM: ≤0.50dB (standard), ≤0.35dB (typical)
Return Loss	SM: ≥60dB; MM: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 MT fiber
Connector Type Options	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Mode	Single-mode (G652, G655, G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Type	250um ribbon fiber, ribbon cable, bundle fiber optic cable

Operating Temperature

-40°C to +80°C

Applications

Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication systems
Telecommunications

Packaging

Products are packaged in OPP bags with outer carton boxes to ensure protection during delivery and transportation.

Delivery Options

Available by air or sea freight, depending on quantity and customer requirements.

Payment Terms

Payment Methods: T/T, L/C, PayPal, Western Union, MoneyGram
Terms: 30% deposit in advance, balance paid before delivery
Price Terms: EXW, FOB, CIF, CFR, Door to Door

Additional Products

We also supply optical patch cords, pigtails, adaptors, attenuators, distribution boxes, quick assembly connectors, and more. Contact us for our complete product catalog.
