USCOME 24 Core G657A1 LSZH 3.0 Single Mode MPO MTP Cable Fiber Optical Patch Cord Custom Length

Brand Name:	New Light
Model Number:	MPO / MTP - MTP/MPO
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP

Material:

Mode Type:

Single Mode

Core Type:

24 Core

Cable Color:

Yellow

Length:

Can Be Customized

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Products Name:

USCOME 24 Core G657A1 LSZH 3.0 Cable Single Mode Fiber Optical MPO / MTP Patch Cord

Supply Ability:

500 pcs per day

Highlight:

mpo fiber cable

mpo to mpo cable

Product Description

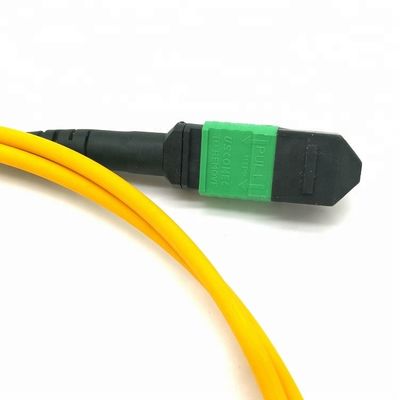

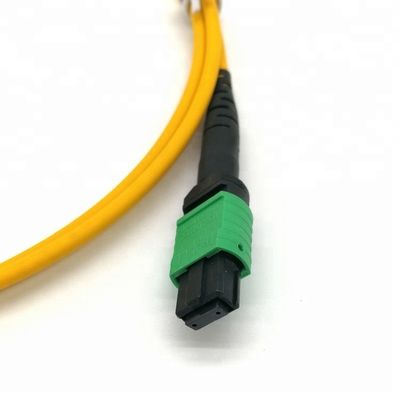

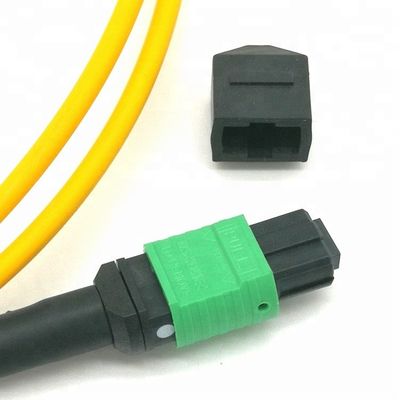

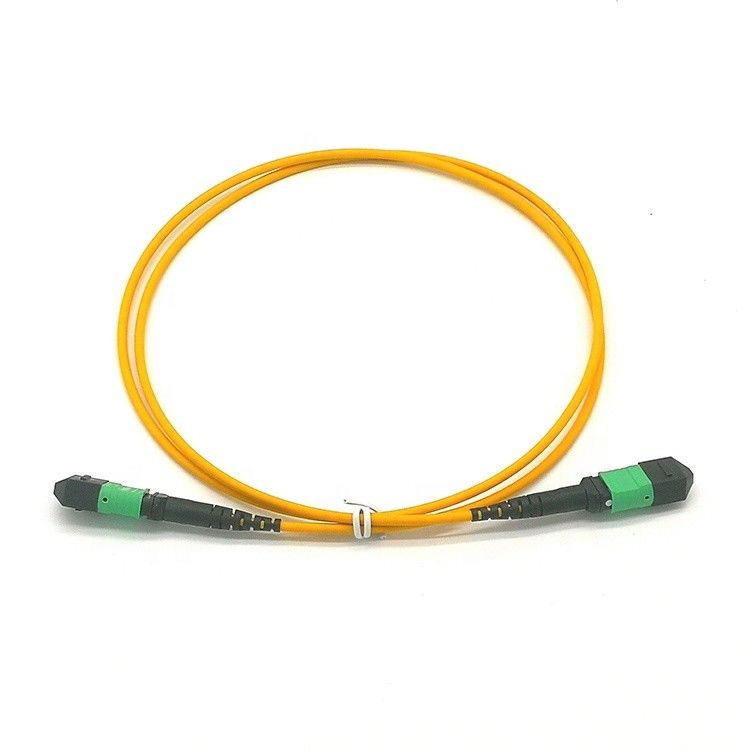

USCOME 24 Core MPO MTP Cable G657A1 LSZH 3.0 Single Mode Patch Cord

USCOME 24 core G657A1 LSZH 3.0 cable single mode Fiber Optical MPO / MTP Patch cord

The MTP Trunk Cable is engineered for 40G (12 cores) and 100G (24 cores) optics direct connection and high-density data center applications. Original US Conec MTP connectors are fully compliant with MPO standards.

FIBERCAN fiber optic cables meet RoHS and UL compliance standards. All fiber patch cable connectors undergo 100% optical testing for insertion loss to ensure superior quality.

Product Specifications

Product Name	USCOME 24 core G657A1 LSZH 3.0 cable single mode Fiber Optical MPO / MTP Patch cord
Model	MTP/2-3-4/5-6-78
A Connector	MTP
A Polish Type	PC, UPC, APC
A PIN	F=female
B End Connector	MTP
B Polish Type	PC, UPC, APC
B PIN	F=female
Fiber Type	B6A1=G657A1
Fiber Counts	24 cores
Cable Jacket	V=PVC; Z=LSZH
Length	1m
Polarity	A, B, C available

Key Features

IEC61754-7 & GR-1435-CORE compliant
Modular design with plug-locking structure for easy testing, installation, removal, and adjustment
Single MTP/MPO connectors accommodate 12 or more fibers
1U height wiring space accommodates up to 96 LC optical interfaces
Saves cabinet and rack space with efficient cable management
Multiple fiber and cable options available to meet diverse customer needs
Choice of male/female connectors
Precise positioning via pin-pin positioning function for high stability
Multi-core ferrule design with small size, high speed, and high capacity
Supports future network infrastructure with high scalability
Compatible with Ethernet and Fiber Channel requirements 10/100-1Gbps

MPO/MTP Testing Requirements

Endface Requirements

400X	Defect Description	Allow Quantity
Fiber (9um,50um,62.5um)	White scratches ≤3um	No limited
	Spot ≤2um	5 PCS
	Defect	No allowed

Performance Specifications

Parameter	SM Standard Ferrule	SM Low Loss Ferrule	MM Standard Ferrule	MM Low Loss Ferrule
IL Loss Typical	0.35dB	0.20dB	0.35dB	0.20dB
IL Loss Max	0.75dB	0.35dB	0.65dB	0.35dB
RL	APC≥50dB PC≥40dB	≥25dB	≥35dB

Polarity Types

Type A Straight-Through MPO Trunk Cable

Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x A to A Duplex Patch Cable

Type B Cross MPO Trunk Cable

Key-Up to Key-Up Adapters and 2 x A to A Duplex Patch Cable

Type C Cross Pair MPO Trunk Cable

Key-Up to Key-Down Adapters and 2 x A to A Duplex Patch Cable

Operating Temperature

-40°C to +80°C

Applications

Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication

Packaging

Products are packaged in OPP bags and carton boxes to ensure protection during delivery.

Delivery Options

Available by air or sea, depending on quantity and customer requirements.

Payment Terms

Payment methods: T/T, L/C, PAYPAL, WESTERN UNION, MONEYGRAM
30% deposit in advance, balance paid before delivery
Price terms: EXW, FOB, CIF, CFR, DOOR TO DOOR

Additional Products

We offer optical patch cords, pigtails, adaptors, attenuators, distribution boxes, Quick Assembly connectors, and more. For additional products or catalog, contact us via WhatsApp: +8613534063703
